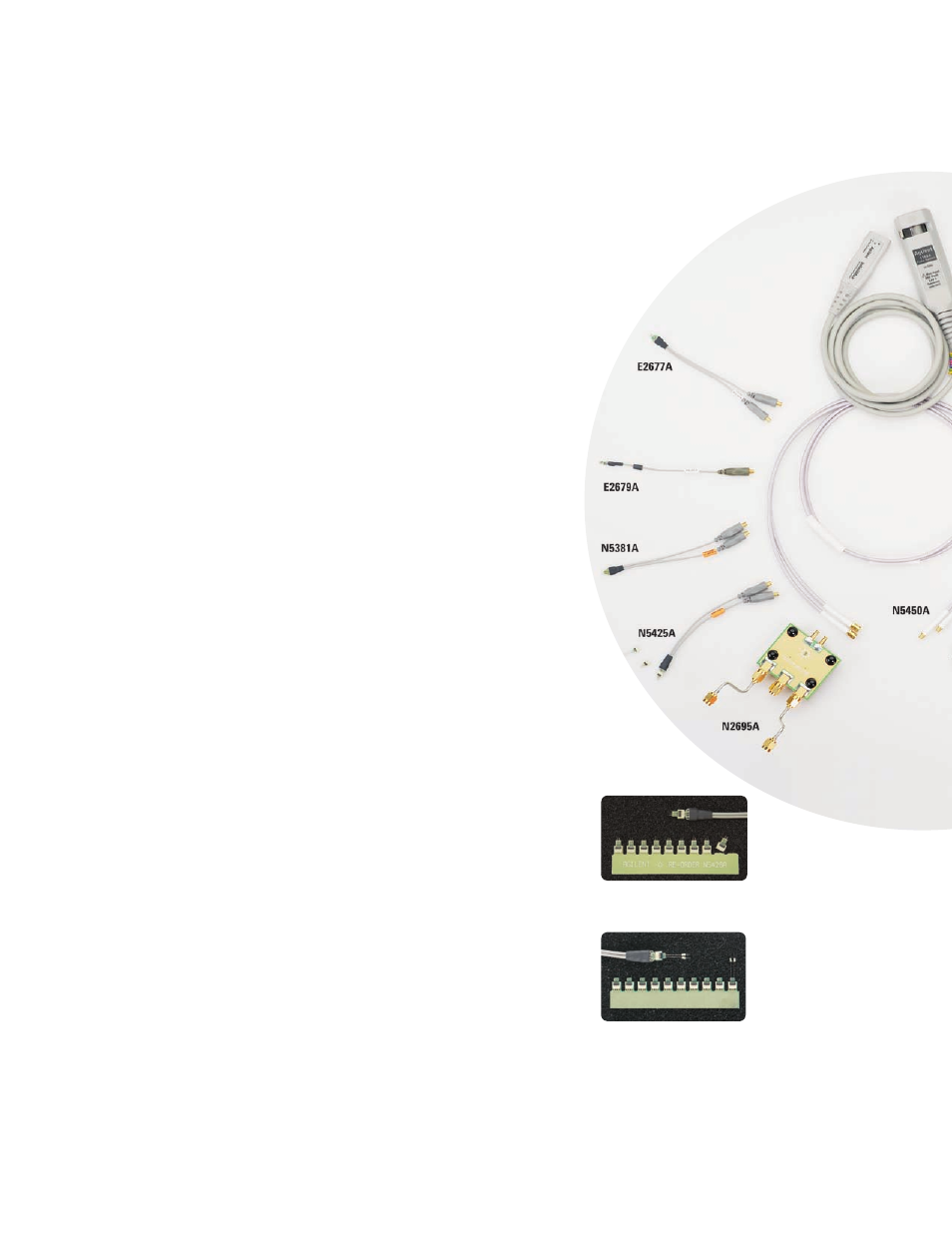

E2695A 8-GHz differential SMA

probe head

allows you to connect

two SMA cables to make a differential

measurement on a single scope channel.

N5381A 13-GHz high-

bandwidth solder-in differential

probe head

provides maximum

bandwidth and minimizes capacitive loading

to ≤ 210 fF. Variable spacing from

0.2 to 3.3 mm (8 to 130 mills).

E2679A 6-GHz extremely

small single-ended, solder-in

probe heads

for probing even the

hardest‑to‑reach single‑ended signals.

E2677A 12-GHz solder-in

differential probe head

can be

attached to very‑small‑geometry circuits

for measuring both single‑ended and

differential signals. External mini‑coaxial

resistors facilitate wider span but have

increased high‑frequency response

variation relative to N5381A.

N5425A 13-GHz high-

bandwidth solder-in differential

ZIF probe head and N5426A

ZIF tip

provides maximum bandwidth

with the industry’s first lead‑free solder‑

in probe solution in an economical

replaceable tip form factor.

N5451A 9-GHz/5-GHz long-wire

ZIF tip

provides a high‑bandwidth

economical replaceable solder‑in tip with

extra reach (9 GHz with 7 mm and 5 GHz

with 11 mm wire).

InfiniiMax offers you the high-

est performance

available for mea‑

suring differential and single‑ended signals,

with flexible connectivity solutions for

today’s high‑density ICs and circuit boards.

InfiniiMax probes have fully

characterized performance

for all

of their various probe heads. This includes:

• Swept frequency response plot

• Common mode rejection versus

frequency plot

• Impedance versus frequency plot

• Time-domain probe loading plot

• Time-domain probe tracking plot

One-year standard warranty

on

active probes and a variety of Agilent

support options to choose from.

Controlled impedance

transmission lines

in every probe

head deliver full performance versus the

performance limitations introduced by

traditional wire accessories.

Probe interface software

allows

you to save the calibration information for

up to 10 different probe heads per channel

and will automatically retrieve calibration

data for a probe amplifier when attached to

the scope.

High-input impedance active

probes

minimize loading, support

differential measurements and DC offset,

and can compensate for cable loss.

Probe calibration software

delivers the most accurate probe

measurements and linear phase response

and allows various probe combinations to

be deskewed to the same reference time.

A flat frequency response

over

the entire probe bandwidth eliminates the

distortion and frequency‑dependent loading

effects that are present in probes that have

an in‑band resonance.

N5426A

N5451A

InfiniiMax II: The World’s best high-speed probing system

just keeps getting better
