BTS Master™ MT8221B Base Station Analyzer Specifications
Cable and Antenna Analyzer (continued)
Distance-to-Fault
Vertical Range Return Loss 0 to 60 dB
Vertical Range VSWR 1 to 65
Fault Resolution (meters) (1.5 x 10 8 x vp)/∆F (vp = velocity propagation constant, ∆F is F2-F1 in Hz)
Horizontal Range (meters) 0 to (Data Points-1) x Fault Resolution, to a maximum of 1500 meters (4921 ft)
Phase (1 and 2-Port)
Measurement Range -180° to +180°
Resolution 0.01°
Smith Chart
Resolution 0.01
Measurement Accuracy
Corrected Directivity >42 dB

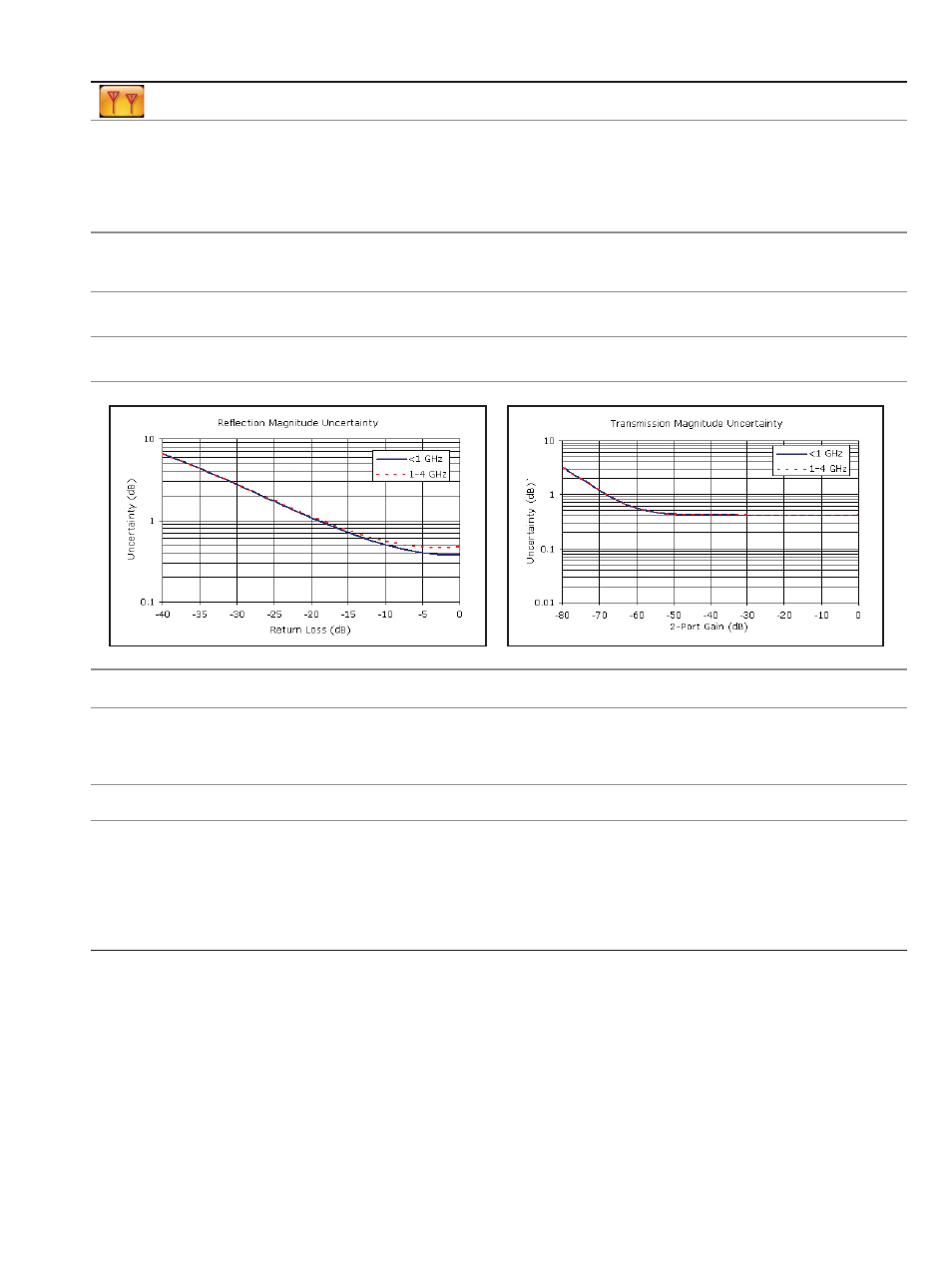

Measurement Uncertainty
Bias-Tee (Option 0010)
Setup On/Off, Voltage, Current (Low/High)
Voltage Range +12 to +32 V
Current (Low/High) 250 mA/450 mA, 1 A surge for 100 ms
Resolution 0.1 V
GPS Receiver Option (Option 0031) (Antenna sold separately, P/N 2000-1528-R)
Setup On/Off, Antenna Voltage 3.3/5.0 V, GPS Info
GPS Time/Location Indicator Time, Latitude, Longitude and Altitude on display
Time, Latitude, Longitude and Altitude with trace storage
High Frequency Accuracy Spectrum Analyzer, Interference Analyzer, Signal Analyzers
when GPS Antenna is connected <±25 ppb with GPS On, 3 minutes after satellite lock in selected mode
GPS Lock – after antenna is disconnected <±50 ppb for 3 days, 0 ºC to 50 ºC ambient temperature
Connector SMA, female
