BTS Master™ MT8221B Base Station Analyzer Specifications

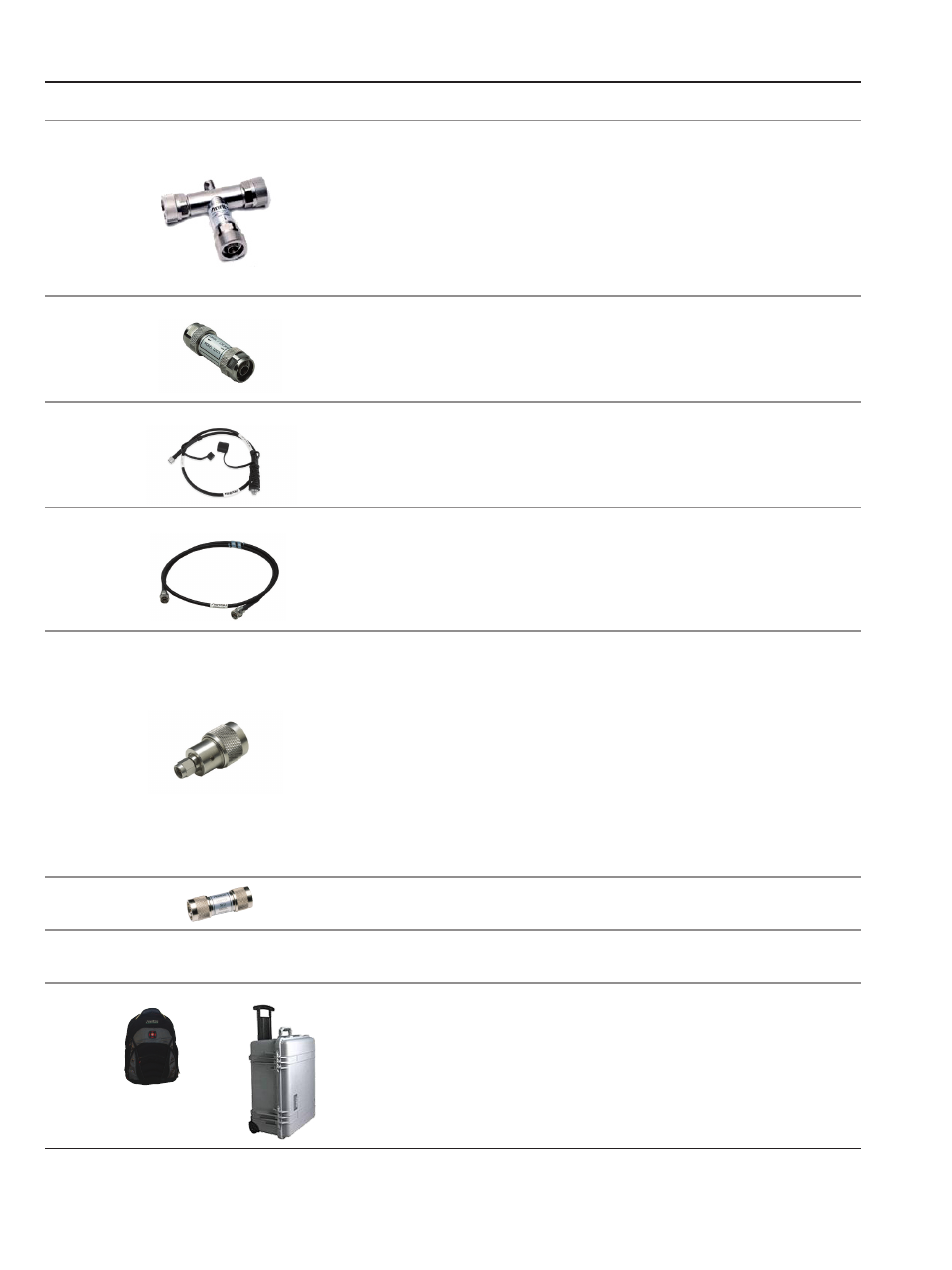

Optional Accessories
Calibration Components, 50 Ω
Part Number Description
OSLN50-1 Precision Open/Short/Load, N(m), 42dB, 6.0 GHz, 50 Ω
OSLNF50-1 Precision Open/Short/Load, N(f), 42dB, 6.0 GHz, 50 Ω
2000-767 Precision Open/Short/Load, 7/16 DIN(m), DC to 4.0 GHz 50 Ω
2000-768 Precision Open/Short/Load, 7/16 DIN(f), DC to 4.0 GHz 50 Ω
22N50 Open/Short, N(m), DC to 18 GHz, 50 Ω
22NF50 Open/Short, N(f), DC to 18 GHz, 50 Ω
SM/PL-1 Precision Load, N(m), 42 dB, 6.0 GHz
SM/PLNF-1 Precision Load, N(f), 42 dB, 6.0 GHz
Calibration Components, 75 Ω
22N75 Open/Short, N(m), DC to 3 GHz, 75 Ω
22NF75 Open/Short, N(f), DC to 3 GHz, 75 Ω
26N75A Precision Termination, N(m), DC to 3 GHz, 75 Ω
26NF75A Precision Termination, N(f), DC to 3 GHz, 75 Ω
12N50-75B Matching Pad, DC to 3 GHz, 50 Ω to 75 Ω
Phase-Stable Test Port Cables, Armored w/ Reinforced Grip (ideal for contractors and other rugged applications)
15RNFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) - N(f), 50 Ω
15RDFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) - 7/16 DIN(f), 50 Ω
15RDN50-1.5-R 1.5 m, DC to 6 GHz, N(m) - 7/16 DIN(m), 50 Ω
15RDFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) - 7/16 DIN(f), 50 Ω
15RDN50-3.0-R 3.0 m, DC to 6 GHz, N(m) - 7/16 DIN(m), 50 Ω
Phase-Stable Test Port Cables, Armored (ideal for use with tightly spaced connectors and other general use applications)
15NNF50-1.5C 1.5 m, DC to 6 GHz, N(m) - N(f), 50 Ω
15NN50-1.5C 1.5 m, DC to 6 GHz, N(m) - N(m), 50 Ω
15NDF50-1.5C 1.5 m, DC to 6 GHz, N(m) - 7/16 DIN(f), 50 Ω
15ND50-1.5C 1.5 m, DC to 6 GHz, N(m) - 7/16 DIN(m), 50 Ω
15NNF50-3.0C 3.0 m, DC to 6 GHz, N(m) - N(f), 50 Ω
15NN50-3.0C 3.0 m, DC to 6 GHz, N(m) - N(m), 50 Ω
Adapters
1091-26 SMA(m) - N(m), DC to 18 GHz, 50 Ω
1091-27 SMA(f) - N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) - N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) - N(f), DC to 18 GHz, 50 Ω
1091-172 BNC(f) - N(m), DC to 1.3 GHz, 50 Ω
510-90 7/16 DIN(f) - N(m), DC to 7.5 GHz, 50 Ω
510-91 7/16 DIN(f) - N(f), DC to 7.5 GHz, 50 Ω
510-92 7/16 DIN(m) - N(m), DC to 7.5 GHz, 50 Ω
510-93 7/16 DIN(m) - N(f), DC to 7.5 GHz, 50 Ω
510-96 7/16 DIN(m) - 7/16 DIN (m), DC to 7.5 GHz, 50 Ω
510-97 7/16 DIN(f) - 7/16 DIN (f), DC to 7.5 GHz, 50 Ω
1091-379-R 7/16 DIN(f) - 7/16 DIN(f), DC to 6 GHz, 50 Ω, w/ Reinforced Grip
510-102-R N(m) - N(m), DC to 11 GHz, 50 Ω, 90 degrees right angle
Precision Adapters
34NN50A Precision Adapter, N(m) - N(m), DC to 18 GHz, 50 Ω
34NFNF50 Precision Adapter, N(f) - N(f), DC to 18 GHz, 50 Ω
Miscellaneous Accessories
2000-1528-R GPS Antenna, SMA(m)
2000-1374 External Charger for Li-lon Batteries
Backpack and Transit Case
67135 Anritsu Backpack (For Handheld Instrument and PC)
760-243-R Large Transit Case with Wheels and Handle
