Keypad and Display | 25
Screens Description
When the RF Survey Meter is initially turned on, the screen displays contact
information for ETS-Lindgren. In addition to the contact information the model
number and most recent software revision date are provided. After the initial
screen, the monitoring screen is displayed. The following sections explain the
different monitoring and logging screens.
For additional information, see Menu Tree on page 47.

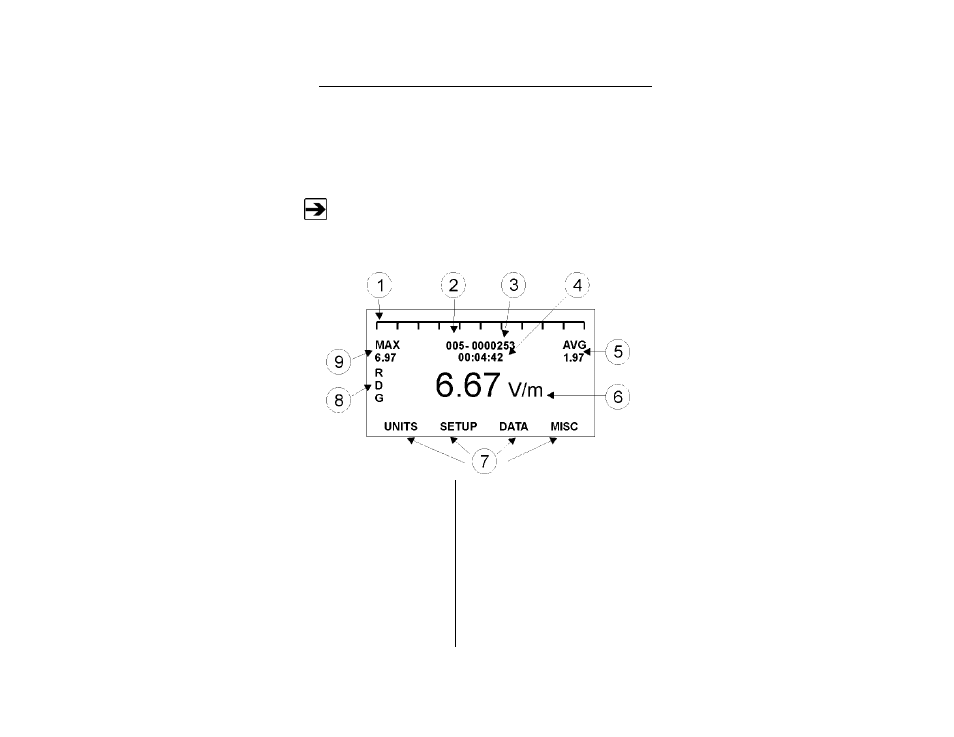

M ONITORING AND T OP L EVEL N AVIGATION S CREEN
1 Linear/Logarithmic bar graph 6 Current field value and units selected
2 Data file number 7 Function keys; see
Keypad Description on page 23 for a
description of functions keys
3 Data point number 8 RDG indicates that the main number
displayed is the current reading
4 Elapsed time since the
beginning of the new log file
9 Maximum field value measured
5 Average field value
