Assembly and Installation | 21
4.0 Assembly and Installation
Before connecting any components, follow the
safety information in the ETS-Lindgren
Product Information Bulletin included with your
shipment.
Installing the Batteries
The batteries for the HI-2200 RF Survey Meter are shipped uninstalled. To install
the batteries, retrieve the battery tray with the four AA batteries from the HI-2200
carrying case, and then follow these instructions:
1. Remove the end cap and bottom panel by unscrewing the four Phillips
head screws.
2. Remove the washers, the protective end cap, and the metal cover.

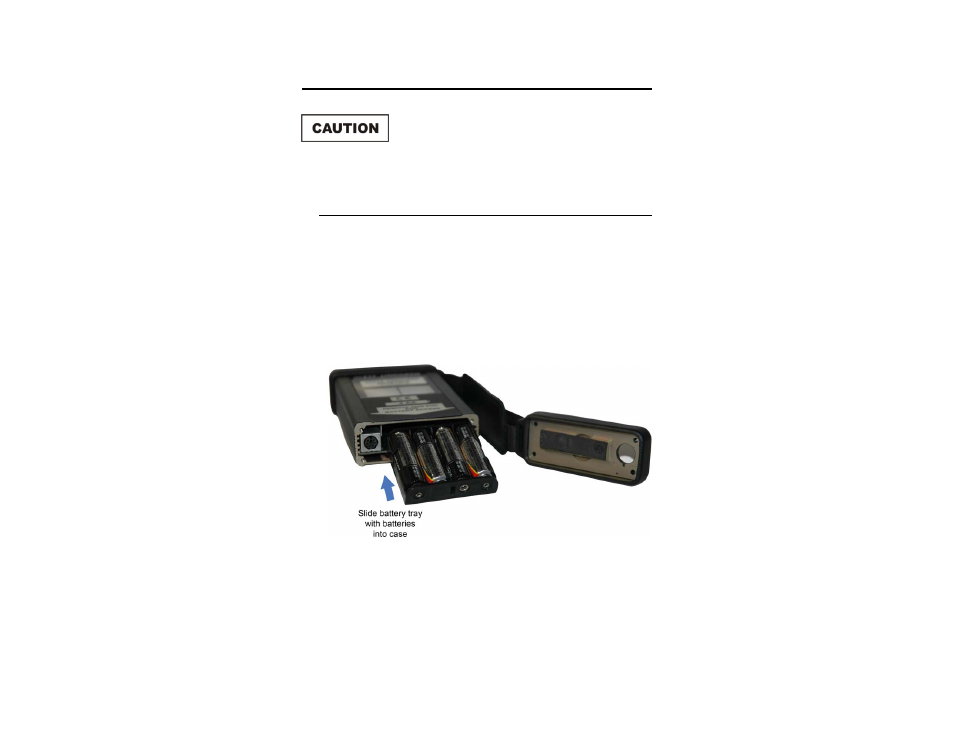

3. Slide the battery tray, including the batteries, into the meter case so
the posts align with the contacts inside.
4. Replace the bottom panel and end cap.
5. With a washer around each screw, re-insert the screws to secure the
bottom panel and end cap into place.
