An example of the results display is shown below: (Fig.25)
To determine the condition of the tested Deep Cycle Batteries, refer the
Voltage reading (should not fall below 12.6V when fully charged) and
the Internal Resistance [Int.R] (should not more 15m
Ω
) readings.
Batteries that had been left idle for long periods can still be tested with
this analyzer. To perform the test, just clamp the analyzer clips onto the
battery terminals and it will display the screen (Fig.26) as shown if its
voltage falls below the normal 12 volts and a buzzing sound is heard.
Press key to continue and the display will show: (Fig.27)

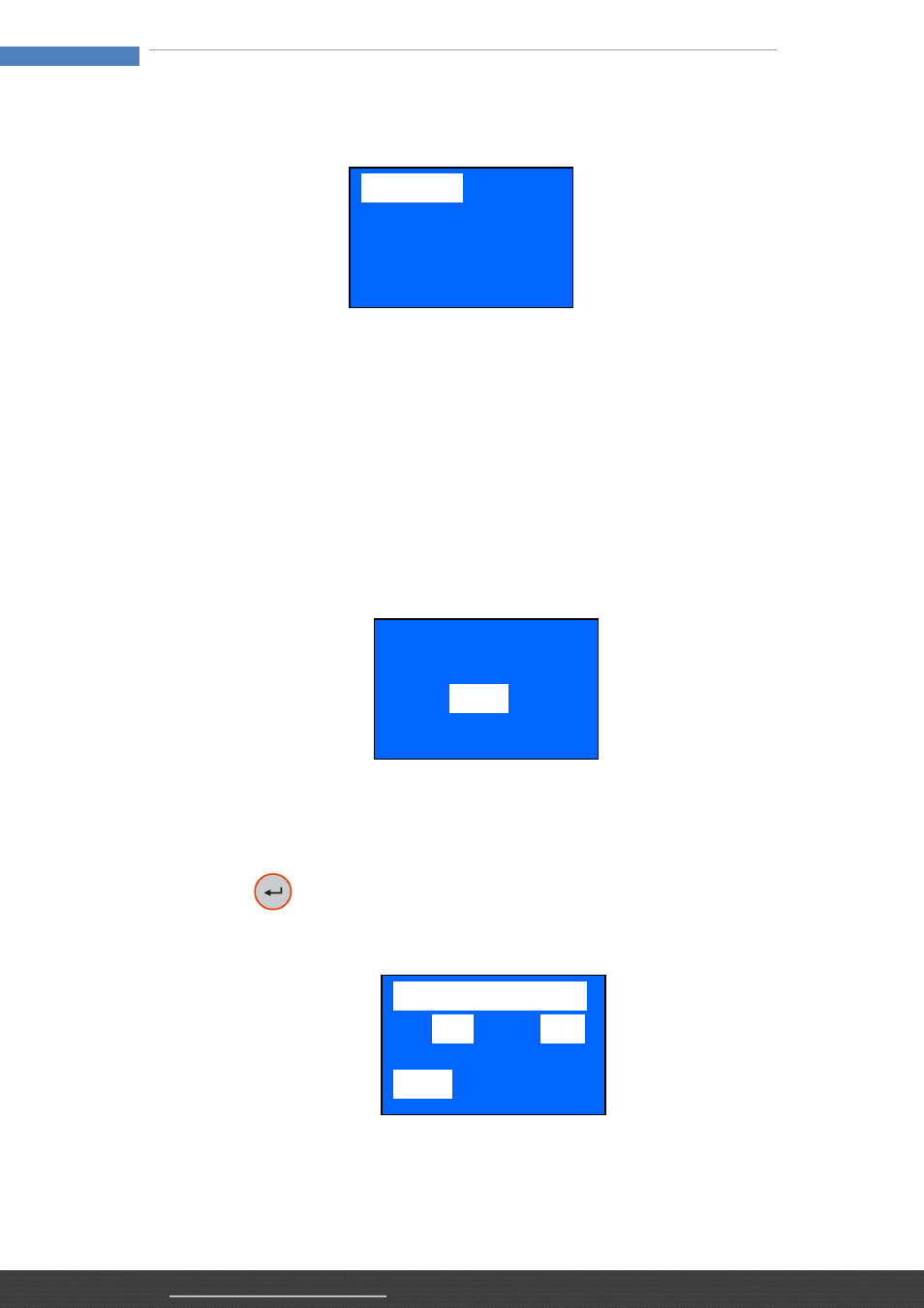

Figure 25
Figure 26
Figure 27
RESULTS:
12.40V 419 CCA
Int.R: 6.43mΩ
Voltage too low!
Press
Enter to
continue..
Input Value
Set 500 CCA ⊳
Enter to start..
