-5HY%

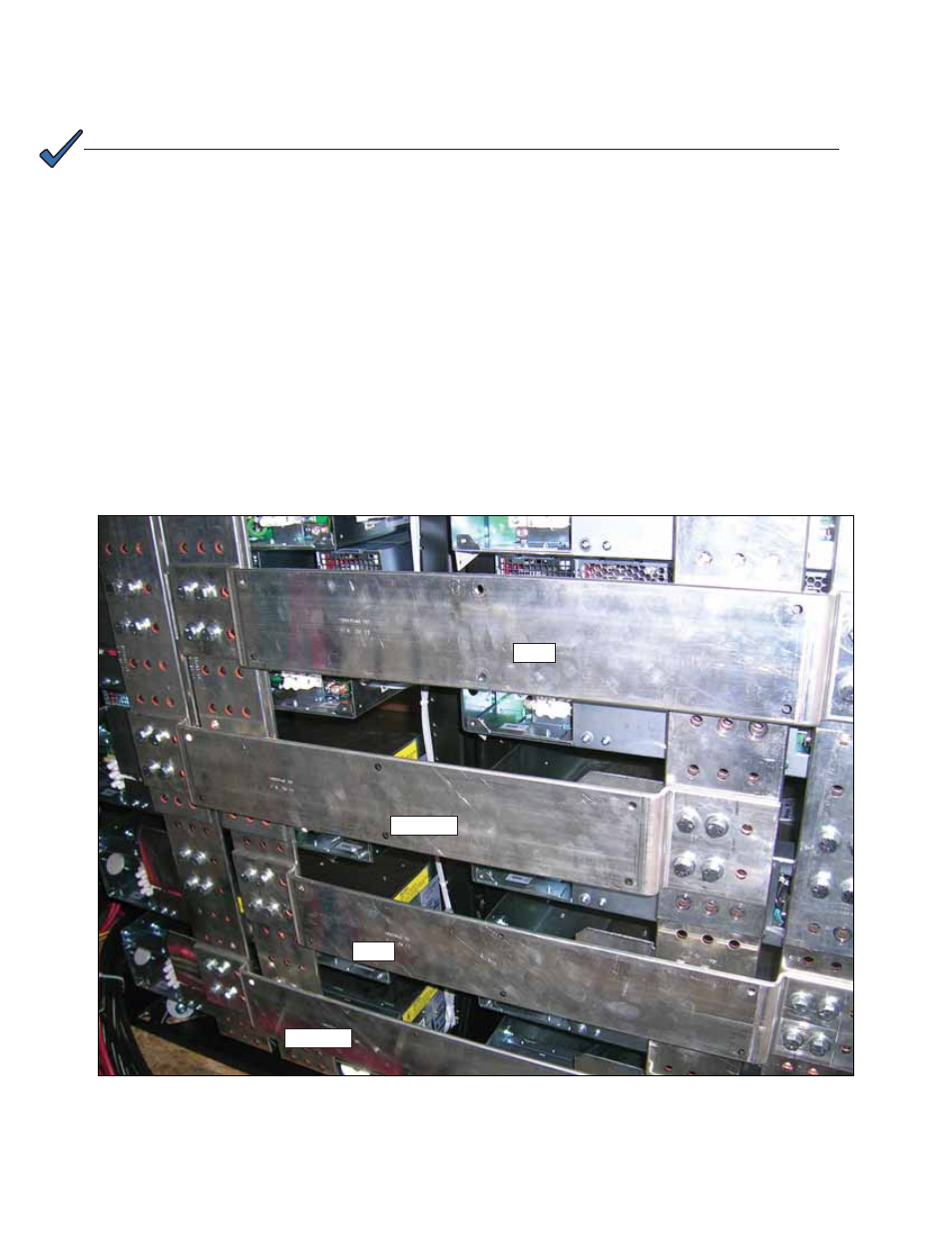

)LJXUH ² ,QWHUED\EXVZRUN
Install inter-bay bus bars top to bottom
Two people are required to perform this procedure.
%HDZDUHWKHUHLVDFRSSHUSLHFHVDQGZLFKHGEHWZHHQWKHYHUWLFDOEXVEDUVDQGKHOGLQ
SODFHZLWKWKHVDPHEROWV\RXDUHDERXWWRUHPRYH
127(
1. Start with the top -48V bar in the primary bay.
2. Remove 2 bolts.
3. Remove the metal sandwiched between the two vertical bus bars along with the last 2 bolts.
4. Repeat the preceding steps on the extension bay.
5. Place the inter-bay bus bar so the bolt holes line up with the bolt holes in the vertical bus bars.
6. Replace the 8 bolts and 2 metal sandwich pieces.
7. Once assembled, torque all bolts to 360 in/lbs.
8. Repeat the procedure for the remaining three inter-bay buses, continuing from top to bottom. Figure 20
shows the completed bus work.
9. If this is a multi-bay installation or if it was necessary to loosen the floor anchors, proceed with final setting of
floor anchors.
&RPPRQ
&RPPRQ
9
9
