4. Pre-Installation Preparation
4.1 Site Selection
The power system must be mounted in a clean and dry environment.
Consider both the floor loading and the physical space required for a single bay CXPS power system and the
batteries:
• Dimensions for one bay (refer to drawing #0250005-06):
»
mm.........2133H x 660W x 482D
»
Inches....84H x 26W x 19D
• Avoid areas that may be subjected to hot air exhaust from nearby equipment.
• Provide adequate space for safe and proper circulation of installation and maintenance personnel:
»
Top: clearance required for cables
» Rear: 3ft (1m) during installation; after installation. a bay can be moved closer to a wall provided
~12" clearance is maintained for ventilation
»
Front: 3ft (1m)
»
Sides: Allow ~6in (15cm) additional space ion the live side of the power system for the live battery
return bar at the top of the bay (Figure 15).

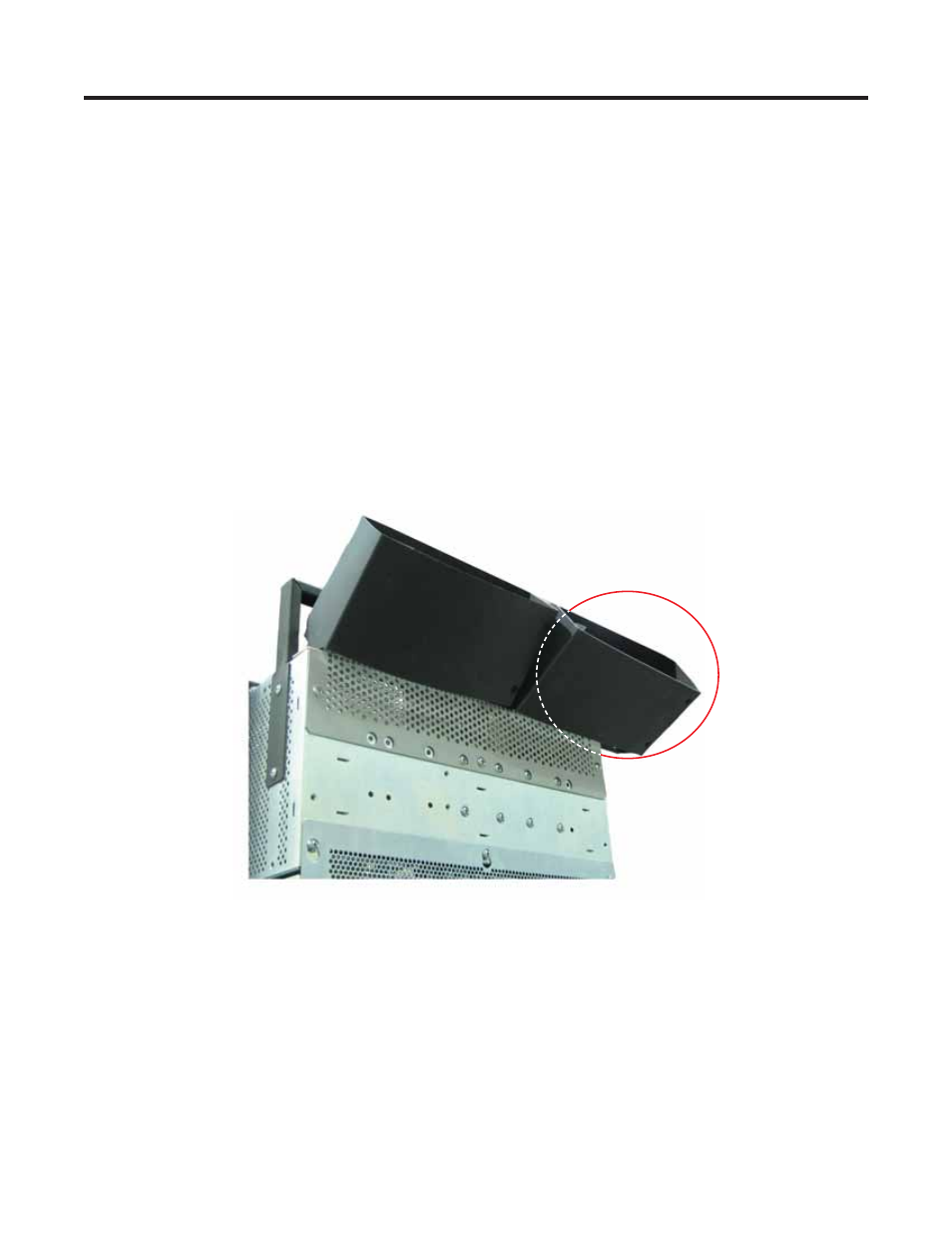

)LJXUH ² %DWWHU\WHUPLQDWLRQVVKRZQZLWKSURWHFWLYHFRYHUV
