3.9.2 Front Panel LEDs
Three LEDs are located on the front panel: one green, one yellow, and one red. These LEDs are used to display
the alarm status of the power system, controller progress and status during startup, and file transfers.
Alarm conditions
Only one LED light is illuminated at a time during alarm conditions. Each LED light corresponds to a specific
alarm. A built-in audio speaker sounds an intermittent tone during active alarms.
,OOXPLQDWHG/(' $ODUP
*UHHQ 2.QRDODUPV
0LQRUDODUPQRPDMRUDODUPV
5HG 0DMRUDODUP
Progress and status indication
The LED lights are also used in the following situations:
• Base unit validation—all three LEDs illuminate
• File transfer—red LED illuminates
3.9.3 Front Panel Reset Button
Use the controller LCD to select the RESET menu item before pressing the reset button. Refer to the software
manual for details.
Pressing the reset button, on the front panel, restarts the CXC microprocessor. It takes approximately 15 seconds
before the display reappears after pressing the reset button (Figure 13).
3.9.4 Network connection and remote communications
The Cordex system can be set up, monitored, and tested via an Ethernet 10/100 Base-T serial data connection.
The controller includes a web server that provides easy set up and monitoring over an Internet connection to a
web browser.
Craft port
Local access to the CXC is possible through a front panel RS-232 serial port (Figure 13), using a null modem
cable. The communication protocol supports a web interface (Microsoft® Internet Explorer 6 or greater). The
remote screen display is an enhanced version of the CXC front panel display.

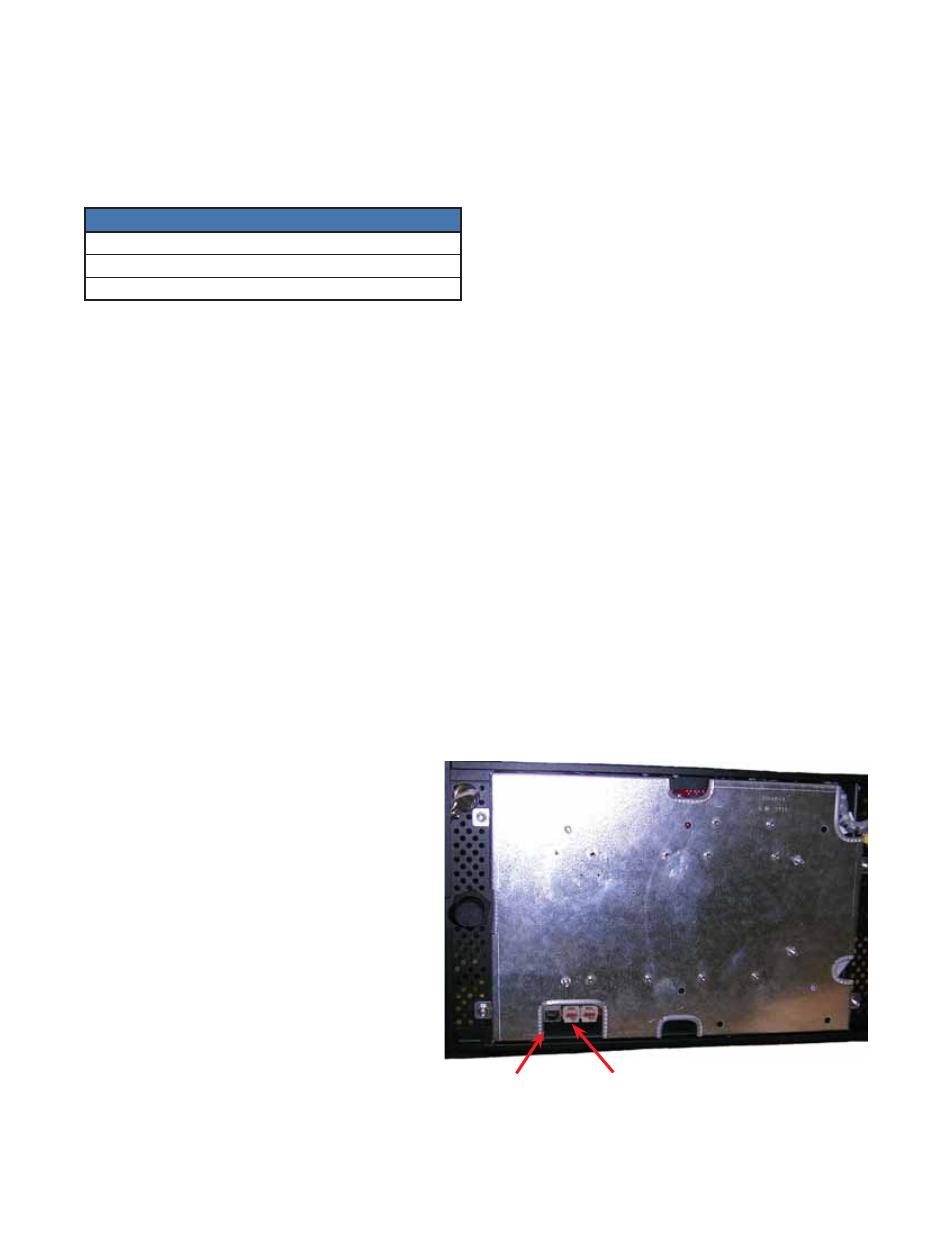

(WKHUQHW
SRUW
&$1
SRUW
Ethernet port
An Ethernet port is located inside the front panel.
This port is designed to connect the controller to
a user supplied TCP/IP network. Use a standard
RJ-45 jack with a standard network cable.
The Ethernet port can be used for local access,
for example to a laptop computer. Use a standard
network crossover cable for the connection.
Internal CAN Bus
A CAN bus is used to transmit all alarm and con-
trol functions between the controller and expan-
sion distribution bays.
A single CAN Serial port, for communications with
other distribution modules is located inside the
front panel next to the Ethernet port.
