030-834-J0 Rev A Page 10 of 34

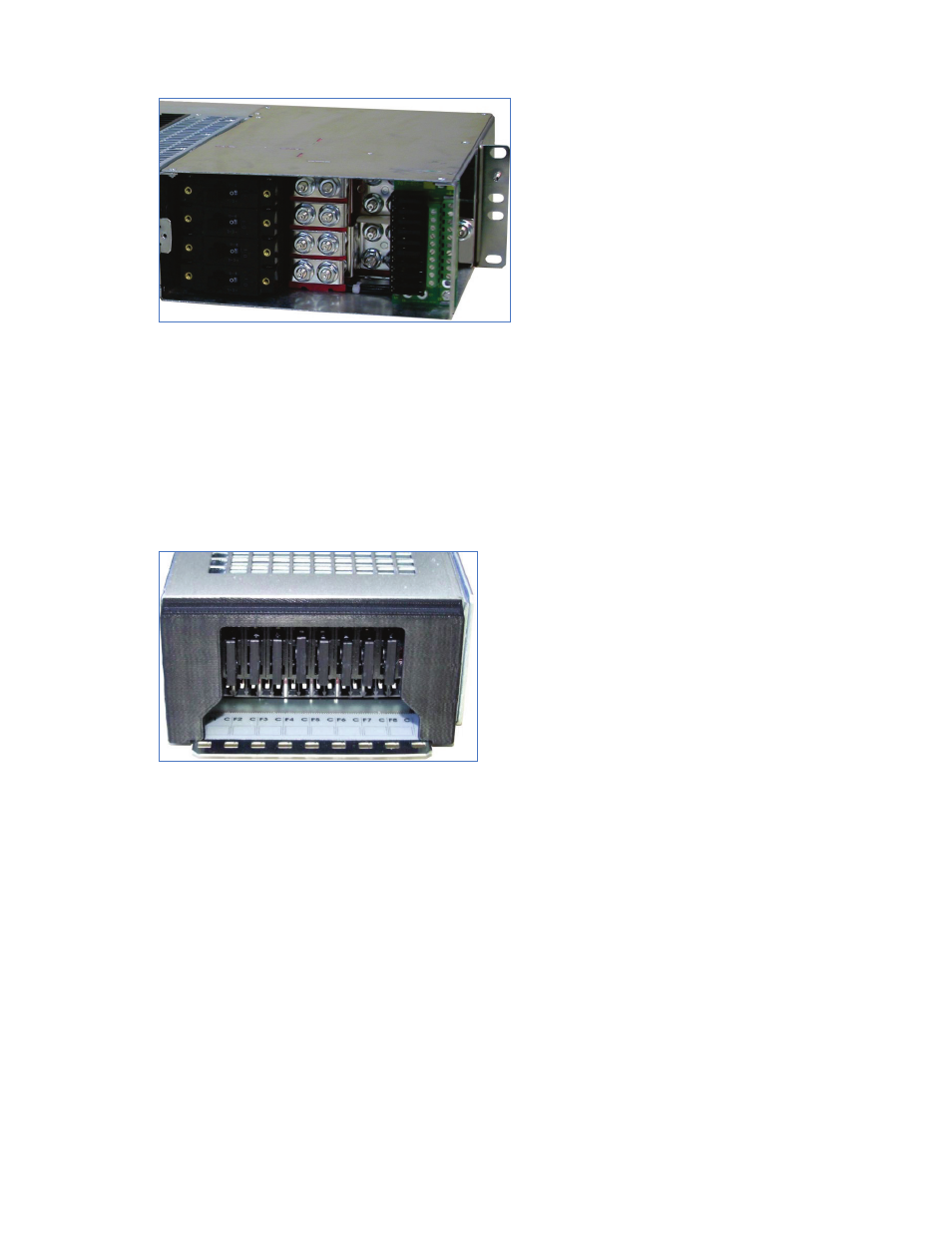

Figure 5–Cordex 48-1.2kW (4800W system) distribution module
030-851-20 (Cordex CXRF-HP 48-1.2kW, 19" 1RU shelf, 3 modules, w/ GMT fuses up to 3600W)
The shelf incorporates a distribution module for DC fuse output as well as battery connections. The module
accommodates up to eight GMT fuse positions. Two batterylanding positions and an 80 A battery shunt are
also provided.
The module has low voltage disconnect (LVD) options, which are in series with either the battery or the
load.
The GMT fuse output connection points are accessible from the front of the module via plug-in connectors.
The battery connections are accessible from the rear of the module via 2-hole lug inputs.
Figure 6–Cordex 48-1.2kW (3600W system) distribution module
2.3 Controller module
The Cordex CXCM1 modular system controller is mounted in the rectifier system shelf and brings
advanced monitoring technology to the Cordex CXRF-HP 48-1.2kW series of rectifiers. This compact
system controller is designed for seamless operation and set up of Alpha power systems and is equipped
with the complete range of Cordex software features, including the following:
•
Designed to communicate directly with Cordex rectifiers
• Includes battery temperature compensation charging
• Battery performance diagnostics
• Provides local and remote communications
• User definable alarms
• Daily logging of power system events and system statistics.
The main controller motherboard, located behind the CXCM1 front panel, contains a microprocessor,
memory, and other electronic components.
