ABUS AZ4290 Terxon 2WAY Module User Manual
Page 84
84

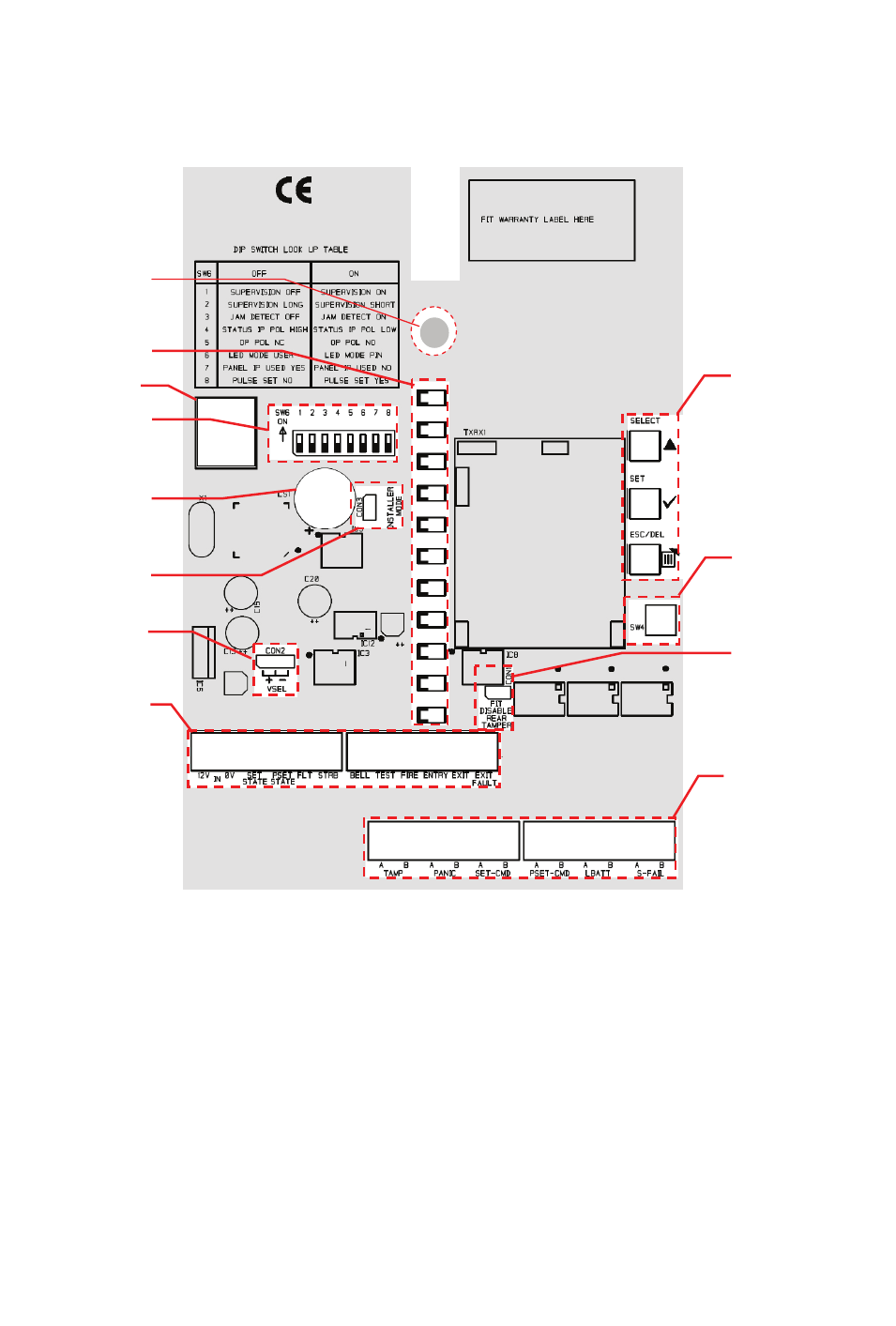

7. Struttura, elementi di regolazione e di indicazione, collegamenti
Descrizione:
1.
Tasti di programmazione
2.
Coperchio dell’interruttore manomissione
3.
Ponticello dell’interruttore antisabotaggio a parete
4.
Uscite della morsettiera
5.
Ingressi della morsettiera
6.
Ponticello per pull-up +/pull-down - resistenza agli ingressi
7.
Ponticello per INSTALLER MODE
8.
Segnalatore
9.
Commutatore DIP
10.
Presa Setup (non utilizzata)
11.
Indicazione LED
12.
Vite di fissaggio
SK1
1
2
4
3
5
11
7
6
8
9
10
SK1
12
x
