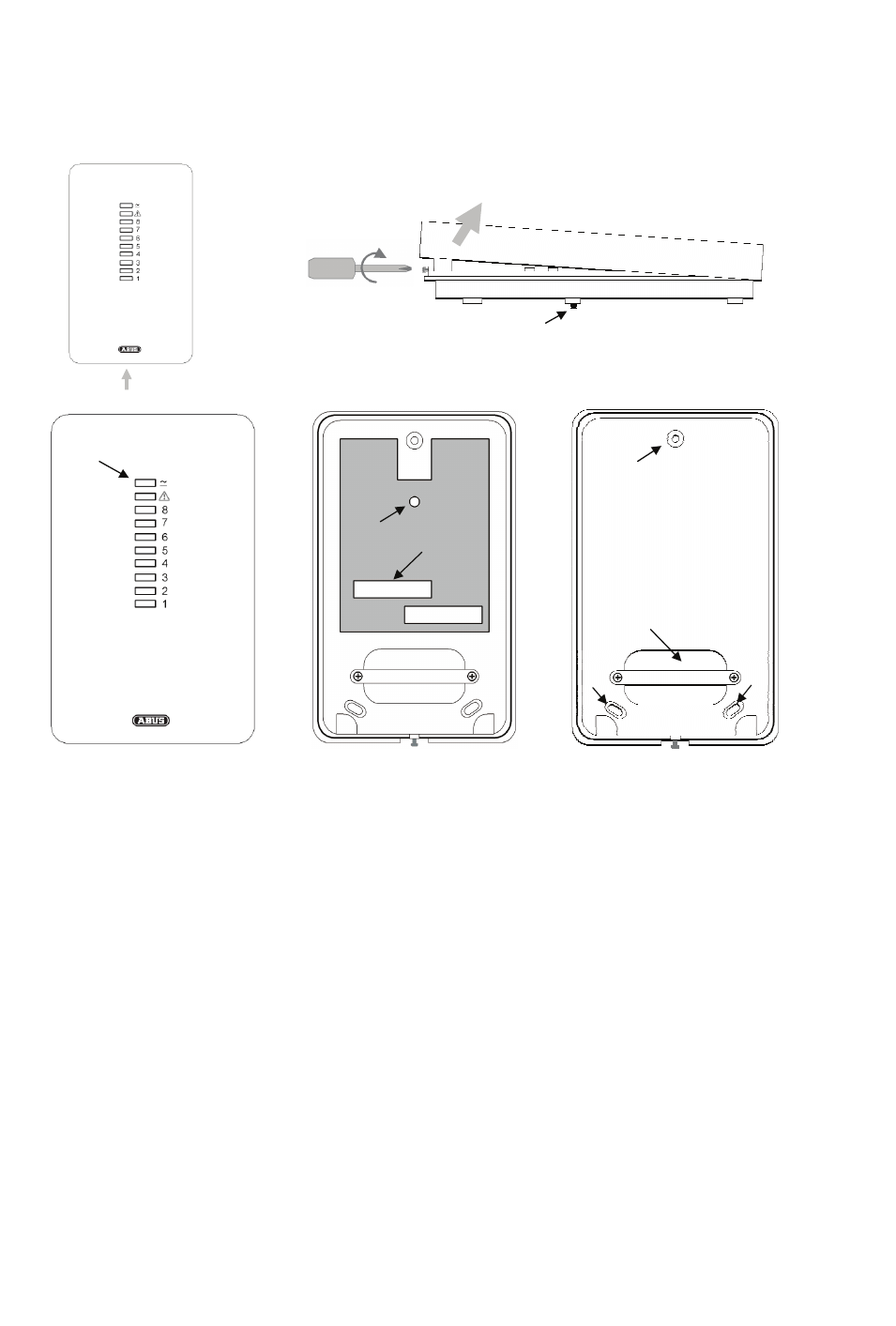

9. Installation
A. Wall tamper switch
B. Display
C. Fixing screw
D. Terminal block
E. Mounting holes on bottom plate
F. Cable
bushing
1. Loosen the fixing screw on the bottom narrow side and open the housing.
2. Remove fixing screw (C) that is above the LED board.
3. Pull the PCB carefully upwards and out.
4. Using the back of the housing as a template, mark the drill holes (E). Drill the holes for the
fixing screws.
5. Guide the connection cable through the appropriate opening (F).
6. Fix the housing to the wall.
7. Fit the PCB and make sure the spring of the wall tamper switch (A) is placed correctly. Affix the
fixing screw (C) that is above the LED board again.
8. Correctly connect the power supply to terminal block (D). The terminal block is labelled accordingly.
Connect the wires of the connection cable leading to the alarm centre according to the wiring plan to
terminal blocks (D). Make sure that stripped parts of wires of the cable that are not used do not touch
the PCB.
9. After programming and start-up, replace the lid and tighten the lid screw.
