Basic Orientation
2-10 LIFEPAK 20e Defibrillator/Monitor Operating Instructions

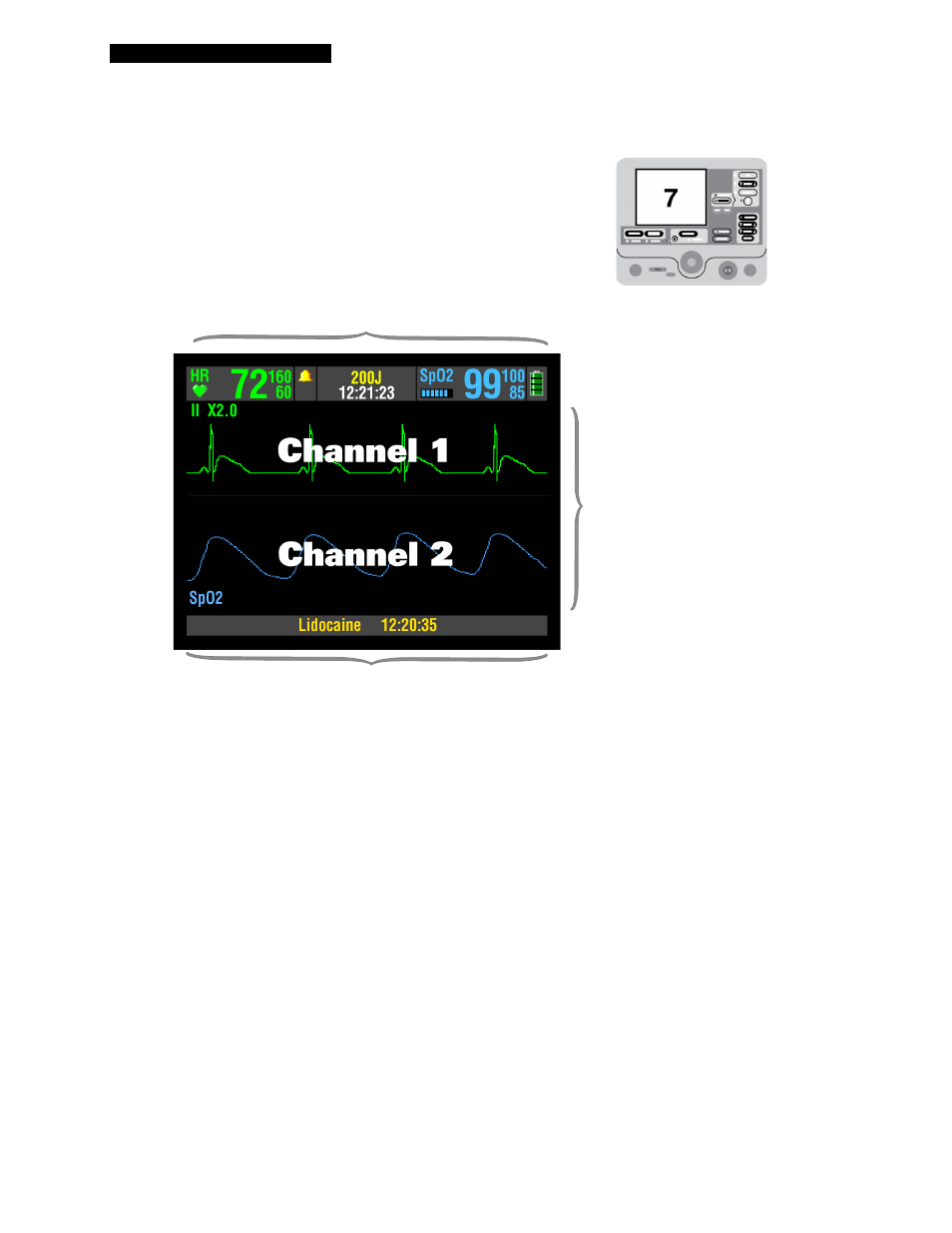

Figure 2-13
Area 7
MONITORING AREA
Displays heart rate, time, SpO
2
, battery status indicator, indicators
for VF/VT alarm and selected energy. Refer to page 2-12 .
STATUS MESSAGE AREA
Displays status and alarm messages.
WAVEFORM
CHANNEL
AREA
Displays up to
two waveform
channels.
Refer to
page 2-12 .
Note: Your device may have either of two screen formats,
depending on the software version. Refer to
Figure 2-13 and
Figure 2-14 to find the format that matches your device.
