Basic Orientation
2-4 LIFEPAK 20e Defibrillator/Monitor Operating Instructions
The door on the LIFEPAK 20e defibrillator/monitor hides the manual defibrillation and
noninvasive pacing buttons. When the door is closed, the appearance and operation of the
device is simplified for the automated external defibrillator (AED) user.
To enter manual mode, press the MANUAL button located on the lower left corner of the door.
This opens the door and automatically takes the device out of AED mode and allows access to
manual mode defibrillation and pacing. After entering manual mode, closing the door does not
affect operation.

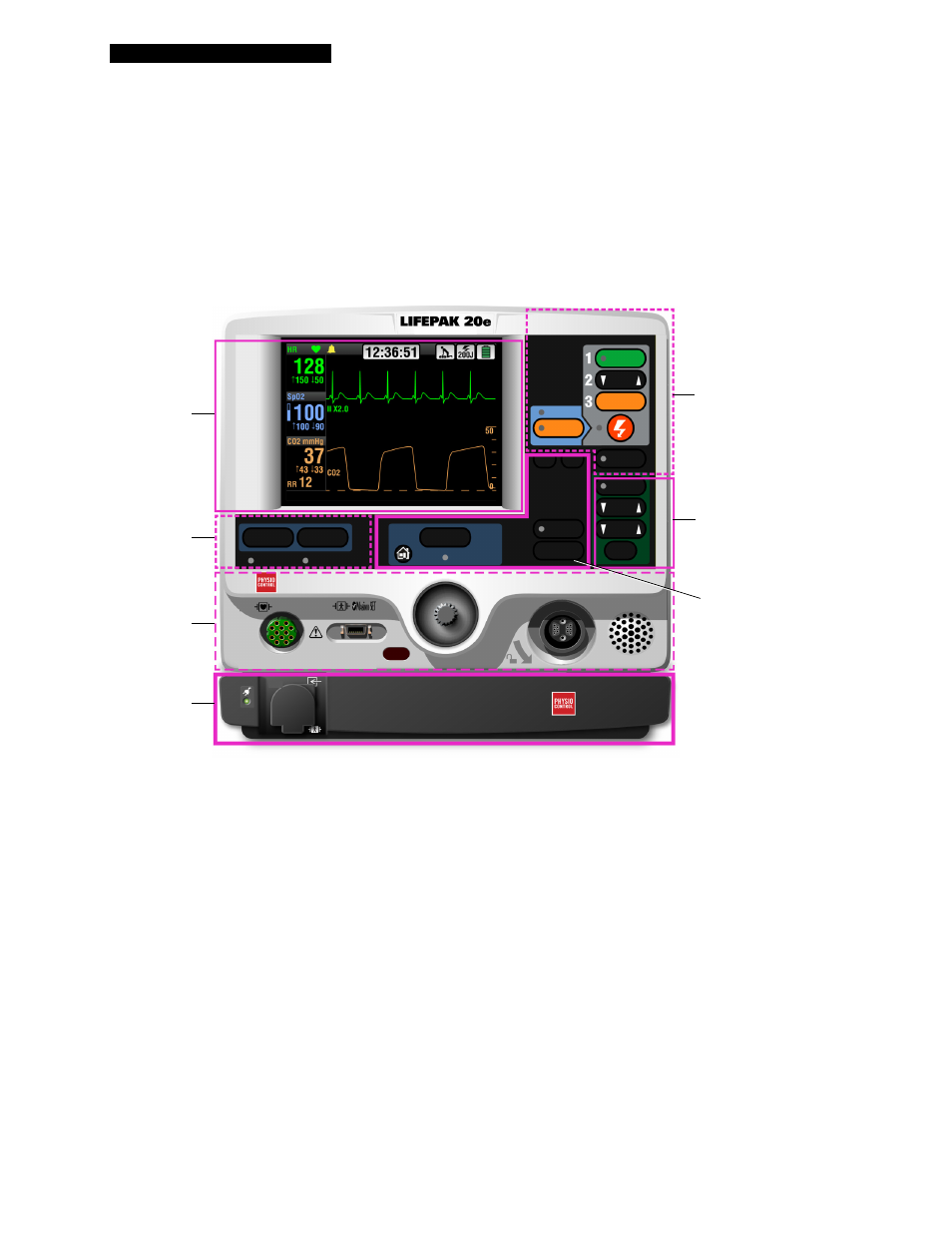

Figure 2-3 Front View without Door and with CodeManagement Module
LEAD
Area 7
Area 5
Area 4
Area 3
Area 1
Area 2
Area 6
ON
ENERGY
SELECT
ANALYZE
CHARGE
SYNC
PACER
RATE
CURRENT
PAUSE
PRINT
CODE
SUMMARY
EVENT
ALARMS
OPTIONS
AC Mains Service Speed Dial
WARNING
DANGER
Hazardous electrical output. For use only by qualified personnel.
Explosion hazard. Do not use in the presence of flammable gases.
ECG SpO2
SIZE
CO2
DEFIBRILLATOR / MONITOR
Recommended
Adult VF Dose: XXX-XXX-XXXJ
AED MODE
