System 5 IP Switchers • Software Setup
System 5 IP Software Setup, cont’d
3-16 System 5 IP Switchers • Software Setup 3-17
6. Drag the Video icon (under Input Control) over to either of
the right-side window fields labeled Press or Release. The
field you choose determines whether the command will
activate on the press of the button or on the release of it.
Notice that the Epson PowerLite 7700p projector now
appears under your chosen Press or Release field, and the
DVD button is marked with a red triangle. This indicates
that the DVD button is now configured.
Configurng the On and Off buttons
Grouped within the Display section of the System 5 IP front
panel, the On/Off buttons can be used to power a projector on
or off.
To configure the on/off buttons, do the following:
1
. In the window under the Front Panel tab, click the yellow
On
button on the System 5 IP front panel.
2 . In the Button Operations area, expand the tree under the
Epson PowerLite 7700p projector icon. A list of operations
appears.
3. Expand the Power Control folder to view the options.
4. Drag the On icon to the right-side window field labeled
Release
. This sets the command to activate on the release
of the button.
N Failure to configure the On or Off buttons on Release may
cause problems with the PIN Mode feature. Refer to the
System 5 IP User's Manual for details.
Notice that the Epson PowerLite 7700p projector now
appears under the Release field, and the front panel On
button is marked with a red triangle. This indicates that
the On button is now configured.
5 . To configure the Off button, repeat steps 1 through 4,
selecting Off.
Step 7: Configure the Control Modules Usng the
Auto Fll Feature
Control modules are optional hardware keypads that can be
used to trigger IR and serial control commands. Once added to
the system, each button can have a function associated with it.
The Auto Fill feature automatically associates the correct
IR commands with control module buttons for the selected
IR driver. For example, the Play command is automatically
assigned to the Play button of the control module keypad.
1
. From the left pane IP Link tab, select Address 1 beneath
the folder called "Control Modules".
N Global Configurator automatically recognizes any control
module currently connected to the switcher. The
IRCM-DV+ appears at Address 1 and 2 or Address 3
and 4. If Address x IRCM-DV+ [DVD] is already shown
in the System 5 IP tree view, skip steps 2 and 3 below, and
proceed to step 4.
2 . Select IRCM-DV+ in the Available Control Module section.
3 . Double-click the selection, then click the OK button on
the message box that appears. This adds the IRCM-DV+
[DVD] module to the configuration.

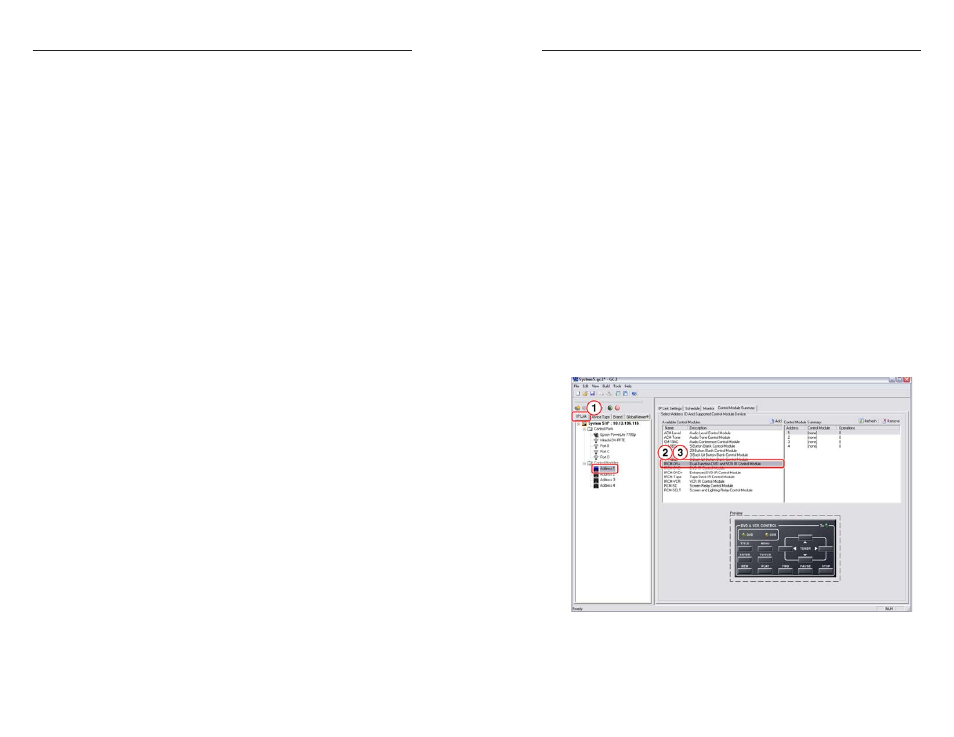

Control module main window
4 . Select the Address #1 tab. The Address 1 IRCM-DV+
[DVD] window appears.
