Serial Communication, cont’d
SGS 408 Switcher • Serial Communication
4-8
Using the software
1.
To run the SGS 408 Control Program, double-click on the SGS 408 Control
Pgm icon (left) in the Extron Electronics group or folder.
2.
Click on the comm port that is connected to the RS-232 port of the SGS 408.
The SGS 408 Control Program window appears (figure 4-2). It displays the
current settings of the SGS 408.

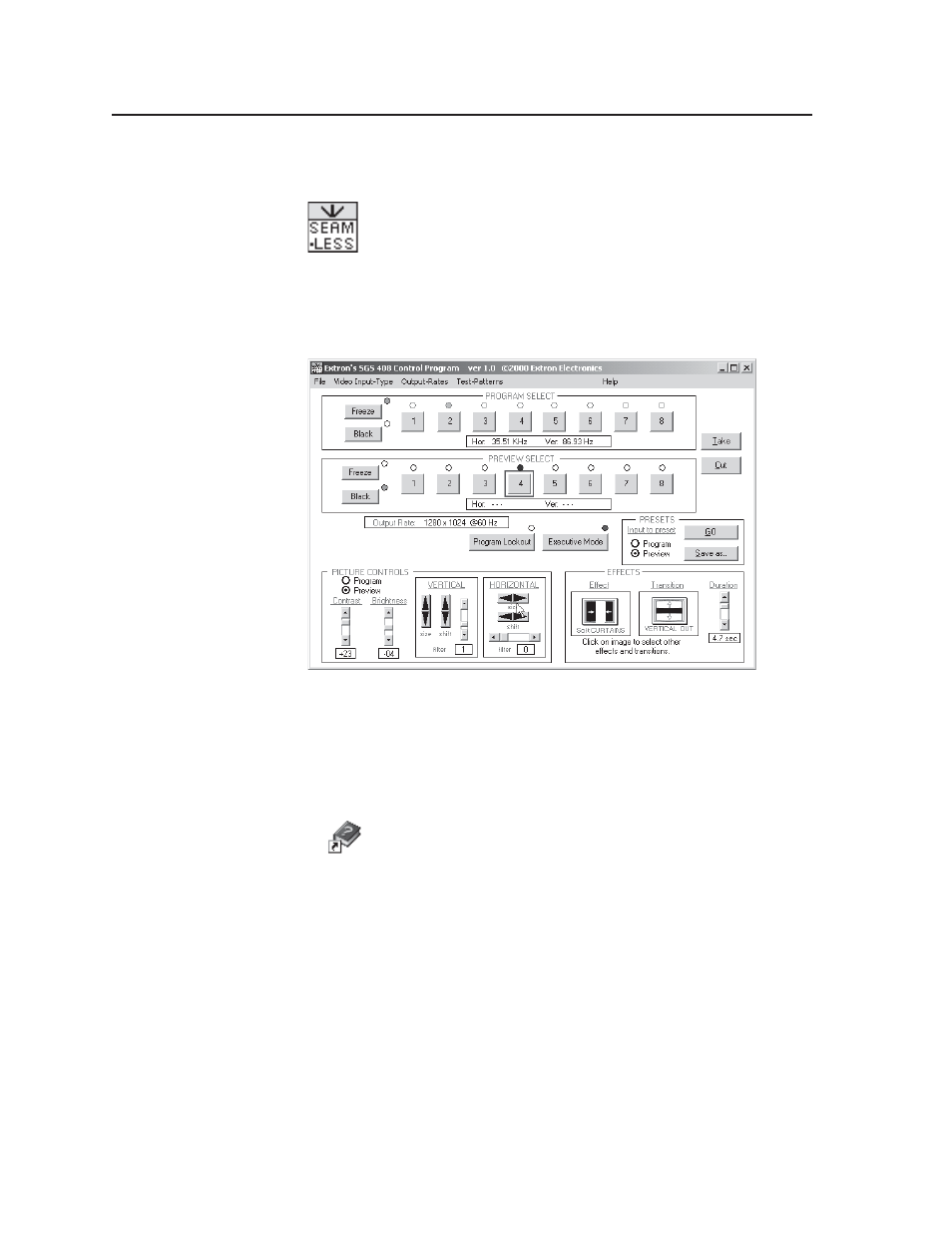

Figure 4-2 — SGS 408 Control Program window
3.
Using normal Windows controls, you can perform many of the same
adjustments as from the front panel.
For information about program features, you can access the help program in any
of the following ways:
• From the Extron Electronics program folder or group, double-click on the
SGS 408 Help icon (shown at the left).
• From within the SGS 408 Control Program, click on the Help menu on the main
screen.
• From within the SGS 408 Control Program, press the F1 key.
SGS 408
Help
