Quick Start — MVP 104GX, cont’d

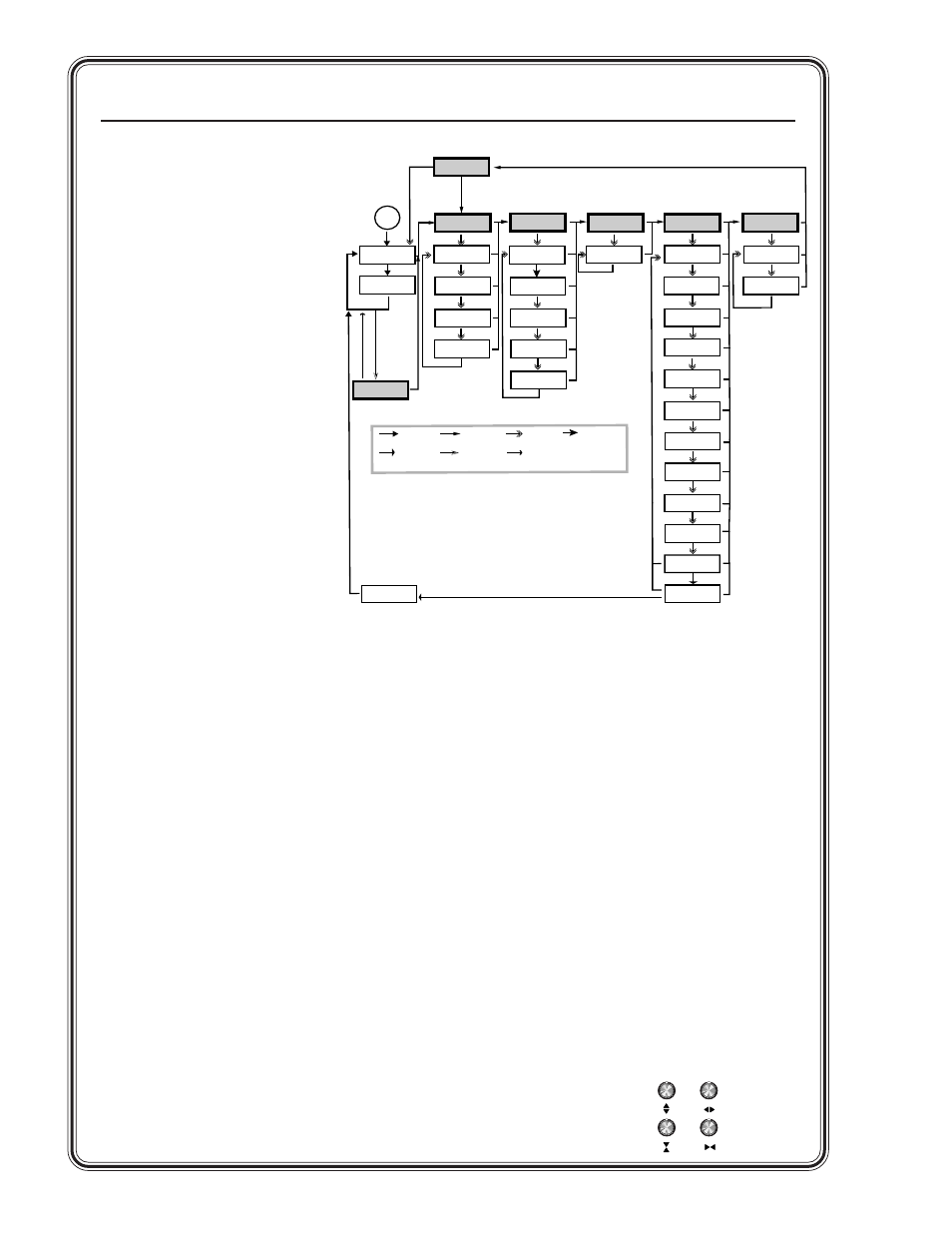

Menu Operation
Power
On
Extron
MVP 104GX
Confirm Reset
Freeze and Next
Multi Video
Processor
Controls Window
Blanking
A udio
Configuration
Advanced
Configuration
System Resetting
Please Wait
Contrast
Brightness
Tint
Color
Audio Level Background Color
color
Window Priority
A<1> B3 C4 D2
Window Borders
ON
Video Format
VCR Mode 1 – 4
Off On Off Off
System Reset
Freeze and Next
Exit
Menu
-15 – +09 dB 000 – 150
000 – 050
000 – 032
000 – 100
1 – 4
1 – 4
1 – 4
1 – 4
Top
Bottom
Left
Right
1 – 4
1 – 4
1 – 4
1 – 4
000 – 016
000 – 016
000 – 016
000 – 016
1 – 4
Windows Text 1 – 4
1 – 16 characters
Text Location
top left
PAL
Input Mode
#1 #2
mode mode
Position/Size
Window #1 – 4
2 -second default cycle press Menu button press Next button
press Freeze and Next
buttons simultaneously press the Active window
selection button 16-second time-out
Blanking
Auto
select blanking
and press Next button
Text Style
solid
Genlock
not detected
Horizontal Phase
000 – 255
Subcarrier Phase
000 – 255
Chroma 1 – 4
Off Off Off On
Default Cycle menu
On power up of the MVP 104GX,
a default cycle of two
informational submenus
displaying the product name
and product type will appear
in 2-second intervals. While
in this cycle, all selected Input
button LEDs will light green.
To adjust any active window’s
sizing or positioning, press the
appropriate Active window
selection
button.
Position/Size window
menu
The active window can be
sized and positioned either
vertically or horizontally by
adjusting the appropriate
sizing and positioning knobs
(see the Adjustment knobs
diagram below). Press the
Menu
button to advance to the
Picture Controls menu.
Picture Controls menu
The Picture Controls menu
allows you to adjust the contrast,
brightness, tint, and color of a
window image by rotating the
Vertical sizing
knob. Press the
Active window selection button
to select a window. Press the
Next
button to advance to the
Contrast, Brightness, Tint, and
Color submenus, or press the
Menu
button to exit the Picture
Controls menu/submenus and
advance to the Window
Blanking menu.
Window Blanking menu
Select a window by pressing the
Active
window selection button.
The Window Blanking menu
adjusts the top, bottom, left, and
right blanking of each output
window. Press the Next button
to advance to the Blanking
submenu. Rotate the Vertical
sizing
knob to select ,
then press Next to advance to
the Top, Bottom, Left, and Right
submenus. Rotate the Vertical
sizing
knob to adjust the
blanking. Press the Menu
button to exit the Window
Blanking menu/submenus
and advance to the Audio
Configuration menu.
Audio Configuration
menu
The Audio Configuration
menu consists of an Audio
level submenu which adjusts
a window’s audio level. Press
the Next button to advance to
the Audio Level submenu, or
press the Menu button to exit
the Audio Configuration menu
and proceed to the Advanced
Configuration menu.
Advanced Configuration
menu
The Advanced Configuration
menu allows adjustment of the
background color, window
priority, window text, window
borders, and video format of
the window image by rotating
the Vertical sizing knob (rotate
the Horizontal sizing knob
when shifting through the text
in the Window Text submenu).
The advanced configuration
settings are displayed on the
bottom of the LCD panel.
System reset and confirm reset
submenus can also be accessed
from this menu. Press the Next
button to advance to the
Background Color, Window
Priority, Window Text, Text Style,
Text Location, Window Borders,
Video Format, Input Mode, VCR
Mode, Chroma, and System Reset
submenus, or press the Menu
button to exit the Advanced
Configuration menu and proceed
to the Exit menu.
Exit menu
Press the Menu button to return
to the default cycle submenus, or
press the Next button to return to
the Picture Controls menu.
vertical
positioning horizontal
positioning
vertical
sizing horizontal
sizing
Adjustment knobs
