PowerCage 1600 Enclosure • Introduction
1
Introduction
This guide describes the Extron PowerCage 1600 Modular Power Enclosure and how to install,
configure, and operate the enclosure and its optional transmitter and receiver boards. Throughout
this guide “PowerCage” and “the enclosure” refer to the PowerCage 1600 Enclosure.
This section of the guide covers the following topics:
z
z
z
Overview
The PowerCage 1600 is a rack-mountable, 16-slot enclosure with vents, fans, and an
integrated power supply (or redundant power supplies) that supports a wide range of Extron
fiber optic and twisted pair AV transmitter and receiver boards. It provides an efficient way
to power and mount multiple transmitters and receivers.
PowerCage 1600
COMM
1
POWER
ALARM
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
PSU
2
PSU
1
FAN
2
FAN
COMM
SELECT
CONFIG
TEMP
5A MAX.
100-240V 50/60Hz
PowerCage 1600
Power Supply
PowerCage 1600
Power Supply

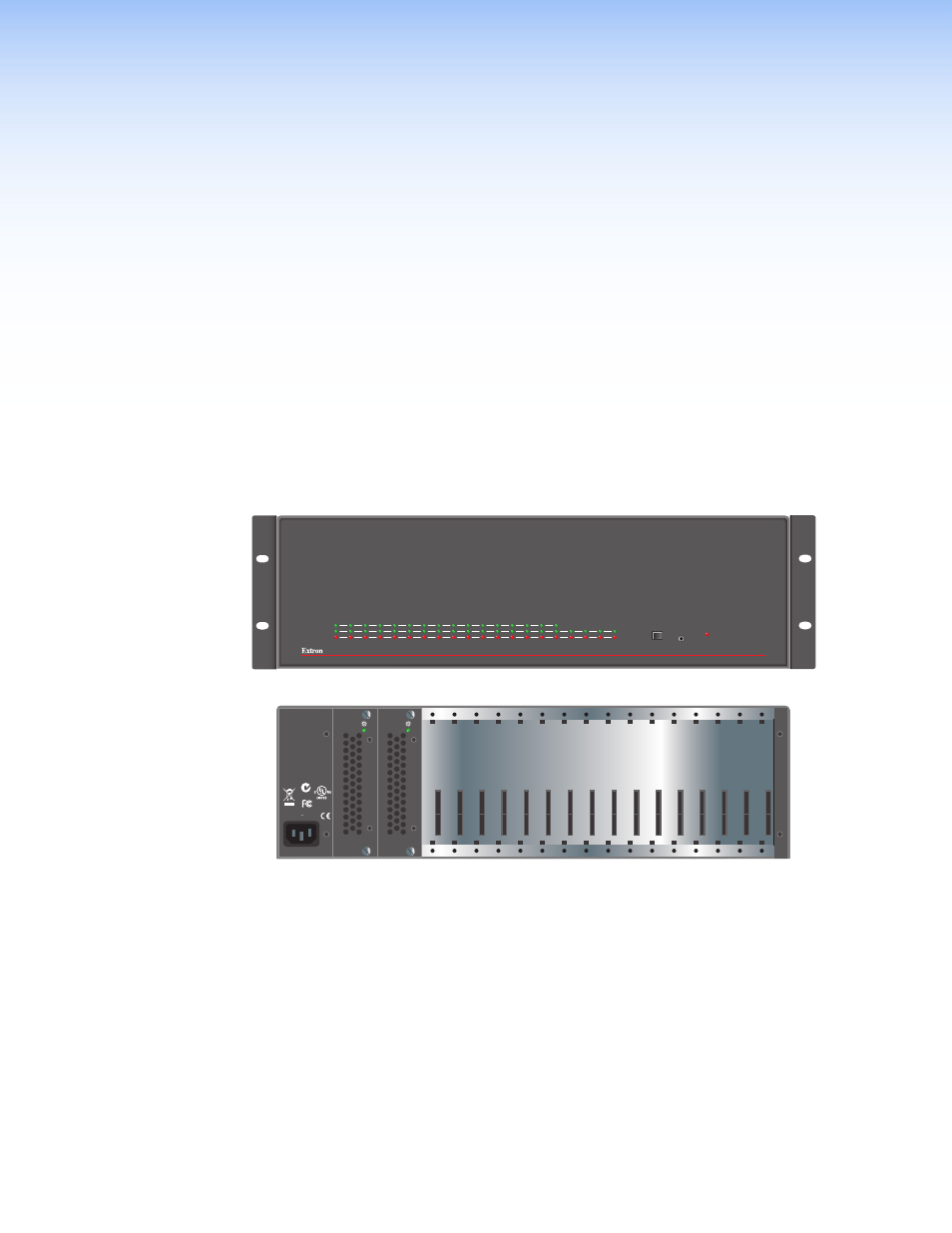

Rear Panel (shown populated with optional redundant power supply)
Front Panel (shown with rack ears installed)
N15778
I.T.E.
1T23
Figure 1.
Enclosure Front and Rear Panel Views
A PowerCage system can include any combination of PowerCage fiber optic (FOX) boards
and PowerCage twisted pair (MTP) boards mounted within the PowerCage enclosure.
Each optional board operates independently of the others. This is an integrated system of
individual transmitters and receivers, not a matrixed system.
Features
PowerCage Enclosure and System
z
Versatile input-output options — The PowerCage 1600 accommodates up to
16 single-slot or 8 double-slot FOX fiber optic boards and MTP twisted pair boards.
z
3U, rack-mountable enclosure — The enclosure streamlines installation and eliminates
individual power supplies for each transmitter and receiver.
