PowerCage 1600 Enclosure • Installation
5
Enclosure and Rear Panel Features
5A MAX.
100-240V 50/60Hz
PowerCage 1600
Power Supply
N15778
1T23
I.T.E.
Rear Panel
1
2
Main
Power
Supply
(standard)
3
Slot for
Redundant
Power Supply
(optional)
4
Slots for
Transmitter and Receiver Boards
(up to 16 single-slot or
8 double-slot optional boards)
Power
Connector

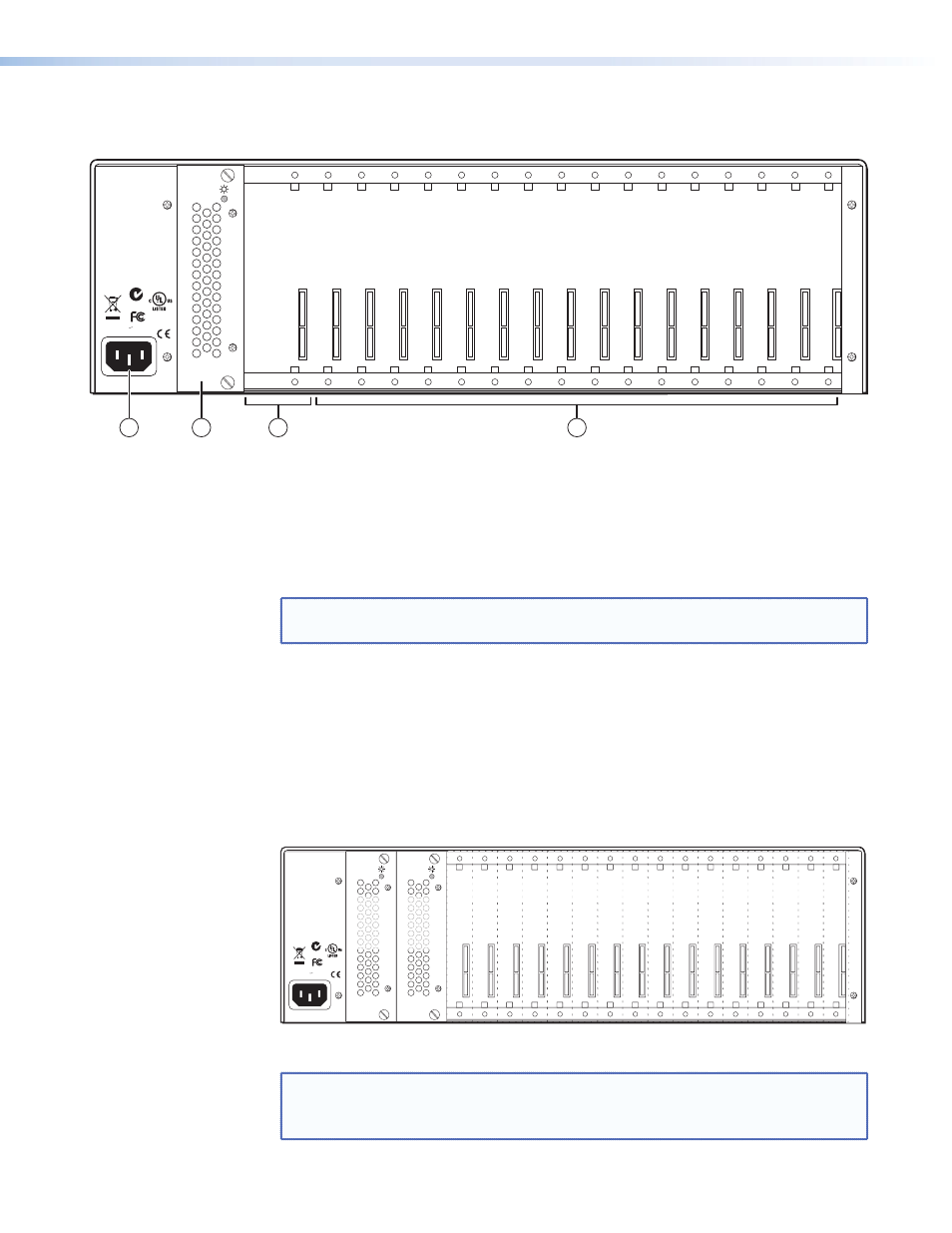

Figure 3.
The Rear Panel of the PowerCage 1600 Enclosure
a
Power connector — Connect this port to a 110-240 VAC, 50-60 Hz power source
using a standard IEC power cord.
NOTE: The power supplies and transmitter and receiver boards may be installed or
replaced before or after the unit is powered on.
b
Main power supply — This power supply is included with every PowerCage
enclosure. The front panel
indicate the status of this power supply.
c
Slot for a redundant power supply — An optional redundant power supply can
be installed in this slot. If this second power supply is installed, the front panel
indicate its status.
d
Slots for transmitter and receiver boards — Slots are numbered from 16 to 1
from left to right as viewed from the rear of the unit and shown in the following
diagram:
5A MAX.
100-240V 50/60Hz
PowerCage 1600
Power Supply
PowerCage 1600
Power Supply
N15778
1T23
I.T.E.
Slot Numbers
Power
Supply
1
Power
Supply
2
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
The front panel
numbers correspond to these slot numbers.
NOTES:
•
Cover all empty board slots; do not leave them open. Securely fasten the
screws for boards and blank panels.
•
A double-slot board connects to the lower-numbered slot.
