Page 23
MTP U T A D • Reference Information
17
Connectors
Connector
Part Number
CAT 6 jack (black), qty. 10
100-476-01
CAT 6 jack (red), qty. 10
100-477-01
CAT 6 jack (blue), qty. 10
100-478-01
CAT 6 jack (orange), qty. 10
100-479-01
CAT 6 jack (gray), qty. 10
100-480-01
CAT 6 jack (white), qty. 10
100-481-01
CAT 6 jack (ivory), qty. 10
100-482-01

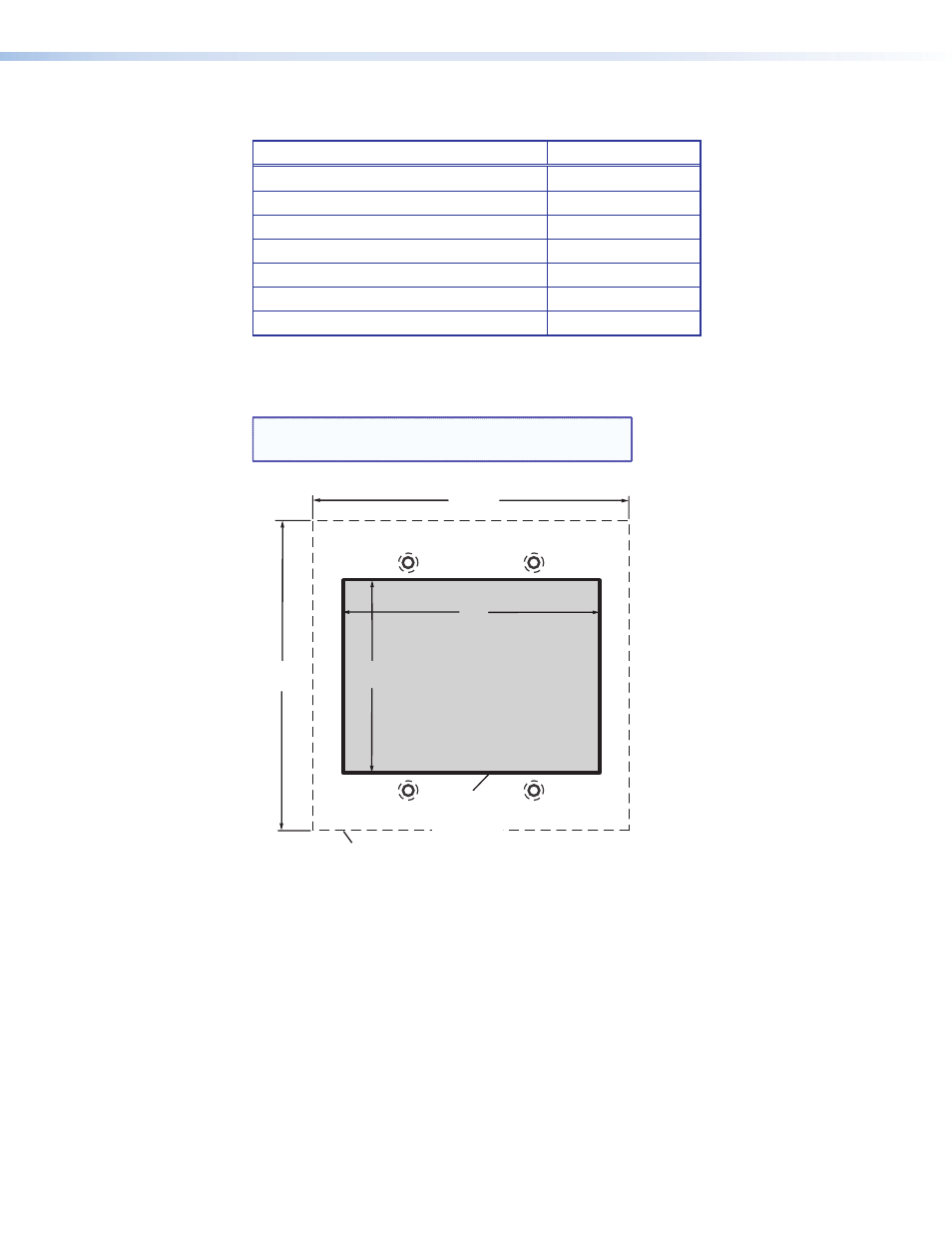

Decora Template Dimensions
To create a template, use the dimensions shown in
NOTE: The drawing is not full size or to scale. Do
not scale up or print to use as a template.
MTP U T A D
4.50"
(11.43 cm)
Top
Panel
SURFACE CUT-OUT AREA
FOR FURNITURE MOUNT
4.60"
(11.68 cm)
3.7"
(9.4 cm)
2.8"
(7.1 cm)
To install
a 2-gang
MTP U T A D
directly into
furniture or
wall, cut
along this
line.
Figure 9.
Decora Template Dimensions
