Tp cable termination, Receiver considerations, To wir – Extron Electronics MTP U T A D User Guide User Manual

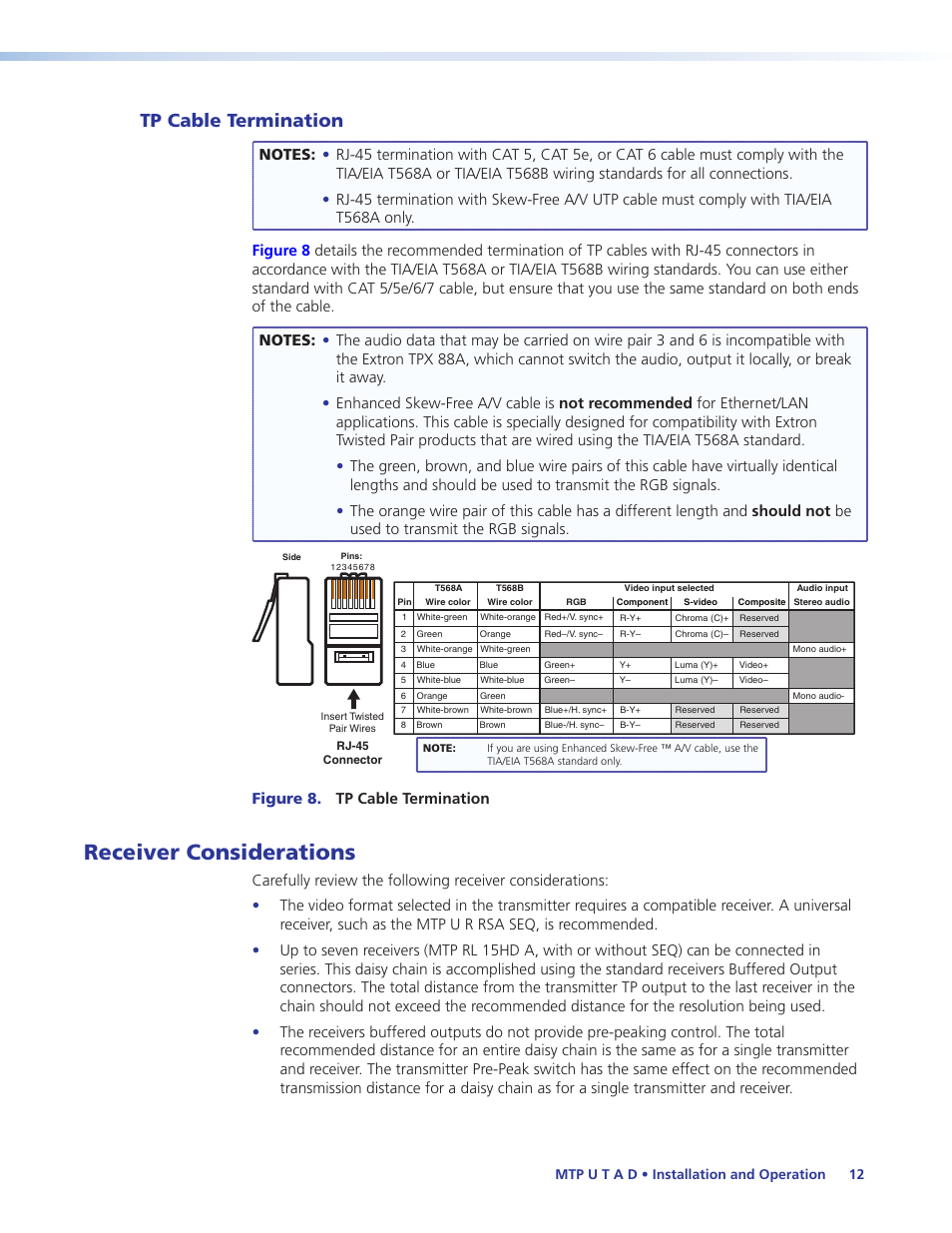

Page 18: Figure 8. tp cable termination
