15

2002 - INLINE, INC. MSX1616 OPERATION MANUAL - v1.0 5/8/02
Operation

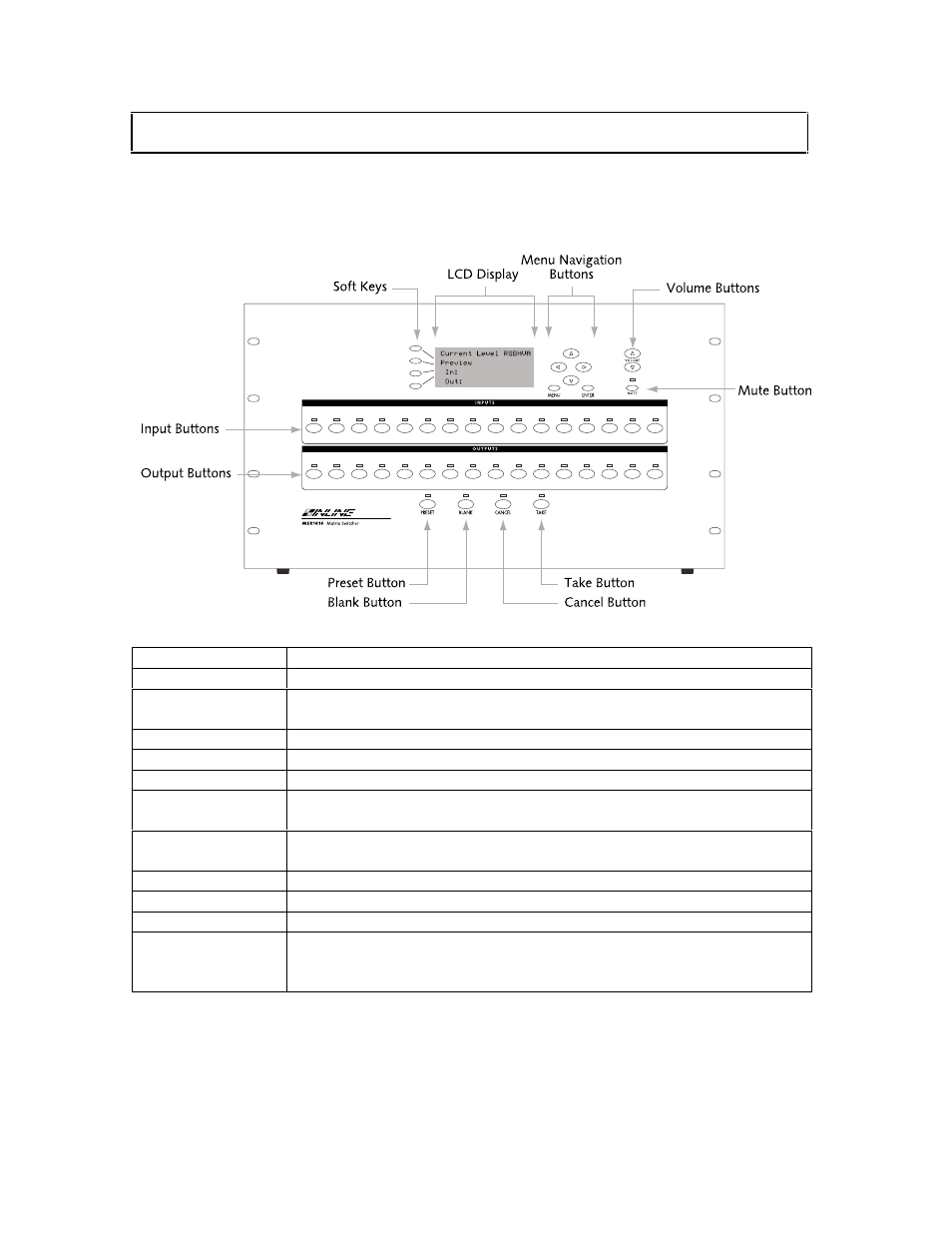

Front Panel Controls
The MSX1616 features the following ergonomic front panel controls.
Button Function
Soft Keys Navigate through any menu on LCD.
Menu Navigation
Buttons Scrolls up and down LCD menu selections and changes inputs/outputs.
MENU Displays the previous LCD screen.
ENTER Saves changes made to existing patches and saves any new settings.
VOLUME Adjusts volume of selected audio output or input.
TAKE Completes a patch and saves the switch configuration into non-volatile
memory.
CANCEL Deletes any unsaved configuration, terminates a patch configuration prior
to pressing TAKE, and takes you to the main LCD screen.
BLANK Turns off (blanks) any output.
PRESET Recalls an existing preset.
INPUT Has an LED indicator above it and corresponds to a video input.
OUTPUT Has an LED indicator above it and corresponds to an output source on the
rear panel. The LED blinks when you create a new patch and glows
steady when you press TAKE.
