With an optional conversion kit, one or more of the RJ-45 (data) lines
can be converted to an RJ-11 (telephone) line.
The installed enclosure fits nearly flush within a table or podium top,
storing the AAPs and connectors out of the way and out of sight. To
access the AAPs and connectors, the user presses down on the top of
the enclosure, releasing a mechanical latch. A gas lift slowly raises the
AAPs and connectors into view.
The functionality of the HSA 822 can be optimized with one through
four RGB 580xi AAPs connected to one through four RGB 580xi
Remote Interfaces (see figure 2).
Projector
Extron
HSA 822
Extron
RGB 580
xi
Surface Access
Enclosure
SOG SER R DDS P V-SY NC W IDTH NEG SYN C COM P S YNC
INPU TS
RGB 580 xi
ANA LOG AUD IO
CON TRO L VID EO OUT PUT LEV EL A B C D E PEA KIN G
Extron
HSA 822
Extron
RGB 580xi
Remote Interface
Both Sides COM PUTE R INPU T SELE CT AUD IO
COM PUTE R INPU T SELE CT AU DIO

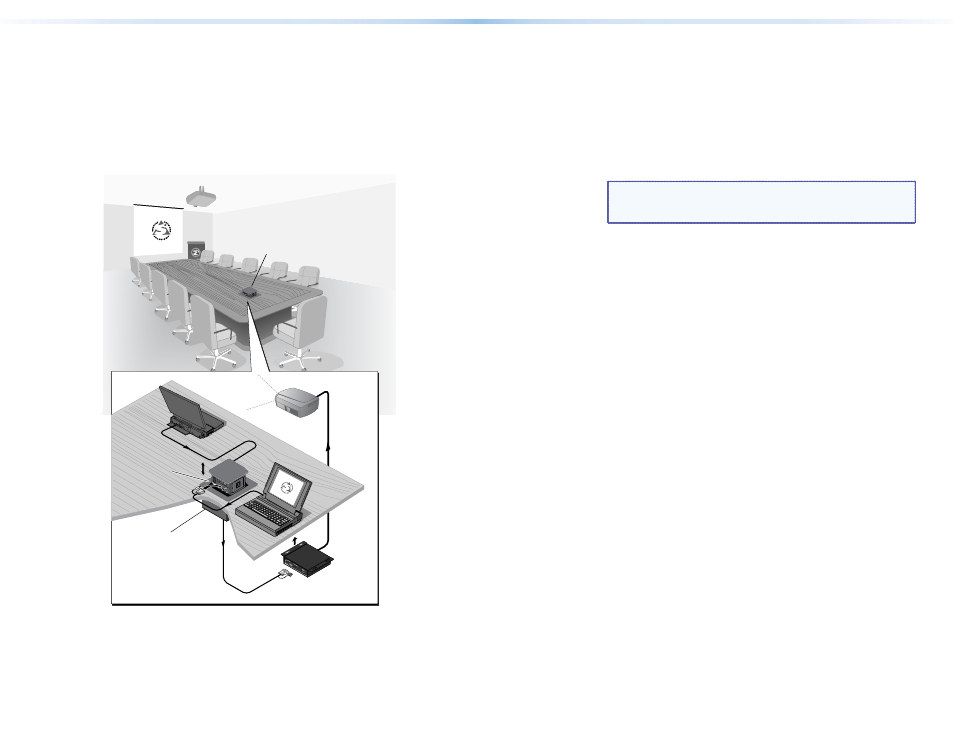

Figure 2. HSA 822 and RGB 580xi Configuration
The HSA 822 is available in a variety of surface finishes, including
black anodized aluminum, brushed aluminum, brushed brass, and
polished aluminum.
Features
• UL/c-UL listed
• CSA certified
• Easy access to connectors and controls
• Durable mechanical movement and latching mechanism
• A variety of surface finishes available
• A variety of colored RJ-45 connector bezels included: black, red,
blue, orange, gray, white, ivory, yellow, and green
NOTE: The online Connectivity Configurator, available at
www.extron.com , offers guidance as to the fit of
AAPs into this space.
• Compact size
• Easy installation of up to four powered or passive double space
Extron AAPs
• RJ-45 (CAT 6) network and data connections (teminated in
accordance with the TIA/EIA T 568 A standard)
• Grounded AC plugs
HSA 822 Hideaway Enclosure • Introduction 2 3 HSA 822 Hideaway Enclosure • Introduction
