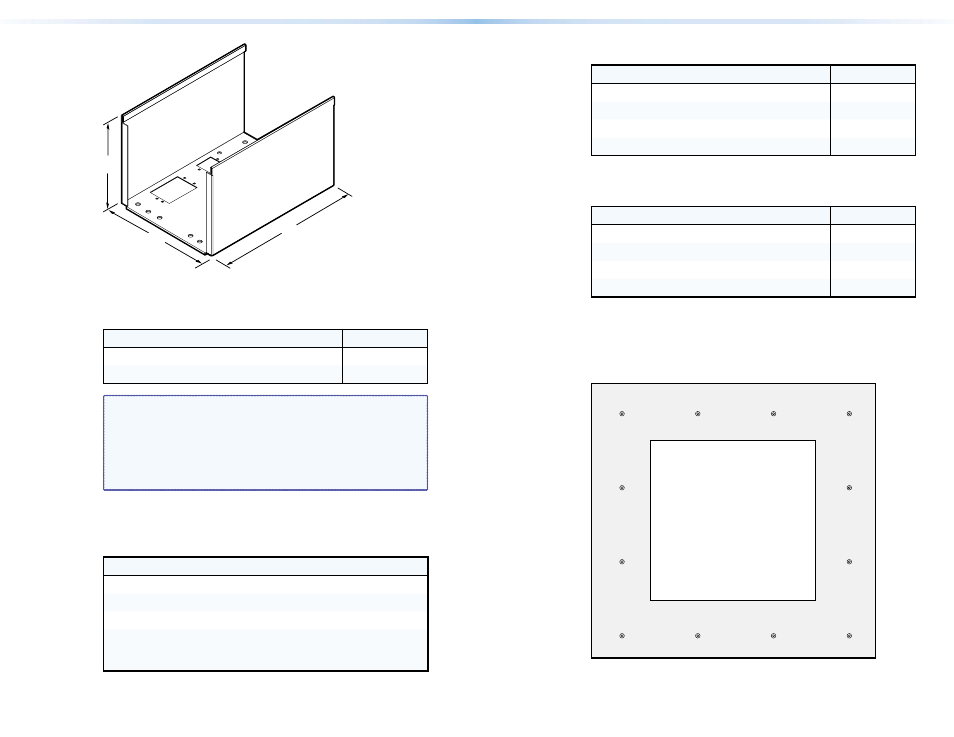

Figure 21. Clamshell Dimensions
Part Numbers
HSA 822 Part number
HSA 822 US Enclosure (black anodized) 60-570-01
HSA 822 International Enclosure 60-687-nn
NOTES: • For the international versions, the nn in the part
number identifies the AC power connector and finish
(black anodized or brushed aluminum). Specify the
desired power connector and finish when ordering.
• The USA version of the HSA 822 is also available in a
brushed aluminum finish. Visit the Extron web site,
www.extron.com for more part numbers.
Included Parts
These items are included with each order for an HSA 822:
Description
HSA 822 User Guide
Snap-in icon inserts
RJ-45 connector bezel plug-in inserts (assorted colors and blank)
1/4 - 20, 1", 1 ½", 2", 2 ½" full thread bolts
—or—
M6 x 65 mm, 50 mm, 40 mm, 25 mm full thread bolts
Template, Replacement Parts, and Accessories
Part Part number
HSA 822 routing template 70-191-01
HSA 822 standard (10 lb) gas lift 70-193-01
HSA 822 RJ-11 cable kit 70-226-01
HSA 822 flexible conduit adapter kit 70-228-01
Interface Accessories
Part Part number
RGB 580xi 60-362-01
RGB 580xi AAP 3' (6') (black) 70-128 (129) -02
RGB 580xi S AAP 3' (6') (black) 70-134 (135) -02
RGB 580xi SI AAP 6' (black) 70-138-02
Top Plate Dimensions
The preferred and recommended method for cutting the table is
to use the metal routing template, part number 70-191-01, (see
figure 22 and “
Installation ”) and a router.
USER ACCESS
EXTRON ELECTRONICS
USER ACCESS
Figure 22. HSA 822 Metal Routing Template
