If you choose not to use the metal routing template available from
Extron, the cut-out template (see figure 23) will help you properly
prepare the mounting surface. The cut-out template is not to scale
and is for reference only. The surface cut-out area dimensions for the
template are marked in bold type.
For a full size paper template, visit the Extron website
(
www.extron.com ) or call the Extron S3 Sales and Technical Support
Hotline.
User Access (Connectors and AAP Openings)
8.03 +0.00 / -0.02"
(20.4 +0.00 / -0.05 cm)
8.33 +0.00 / -0.02"
(21.16 +0.00 / -0.05 cm)
SURFACE CUT-OUT
AREA = 8.03 +0.00 / -0.02"
(20.4 +0.00 / 0.05 cm) x
8.33 +0.00 / -0.02"
(21.16 +0.00 / -0.05 cm)
Cut surface material
out along this line.
Tilting Plate Top Panel
Cut-Out Template for Extron
HSA 822
TEMPLATE IS NOT FULL SIZE.
Cut-Out Radius:
0.25"
(0.6 cm)
6.220" (15.80 cm)
8.470" (21.51 cm)
6.500"
(16.51 cm)
0.5"
(1.3 cm)
8.750"
(22.23 cm)
User Access (Connectors and AAP Openings)

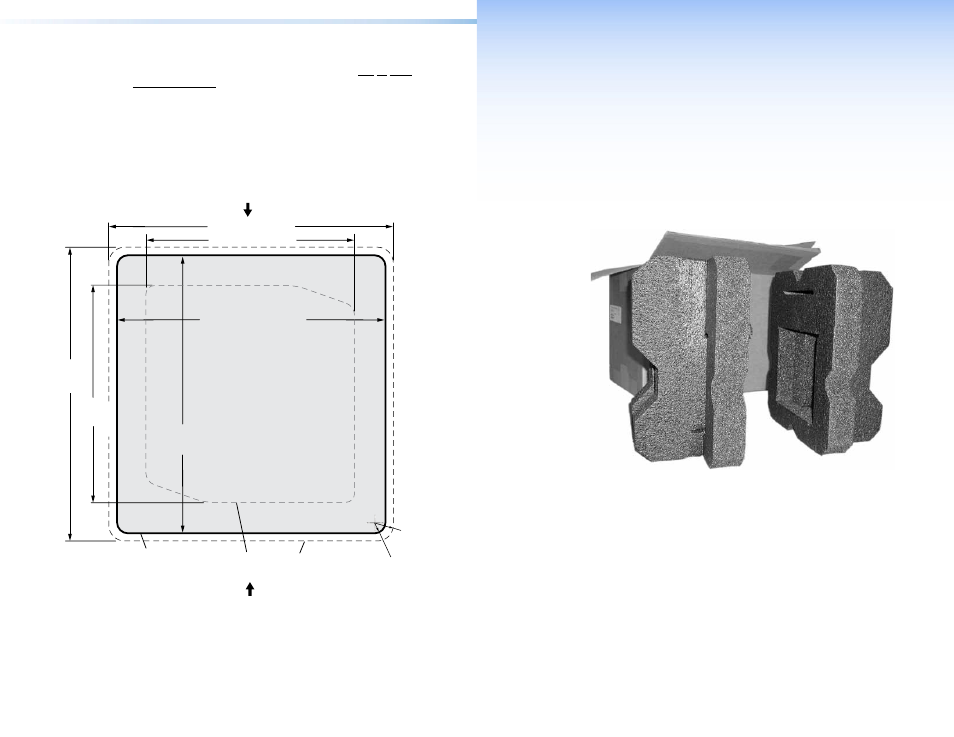

Figure 23. HSA 822 Cut-out Template
Packaging for
Shipment
The ultra-fine machined surfaces and moving parts of the HSA 822
make them vulnerable to damage caused by mishandling during
shipment if they are improperly packaged. If, for any reason, you
need to return an HSA to Extron, first contact Extron to obtain a
return kit. The return kit, which reduces the chances of damage
during shipment, includes a sturdy shipping carton and foam cut to fit
the HSA (see figure 24).
Figure 24. HSA 822 Return Kit
HSA 822 Hideaway Enclosure • Packaging for Shipment 33 32 HSA 822 Hideaway Enclosure • Reference Information
