Adjusting the Top Surface Level
The top lifting panel of the HSA 822 can be adjusted to ensure that
the lifting panel is horizontal and not tipped. Level the lifting panel
of the HSA 822 as follows:
1. Remove the surface mount enclosure from the table. See
“
Removing and Replacing the Enclosure ”, steps 1 through 9. Place
the enclosure on a horizontal surface. To protect the finish, place
the enclosure on a soft cloth.
2. If necessary, close and latch the top panel.
3. Slightly loosen the six locking screws (see figure 20) that secure
the top panel to the panel bracket.

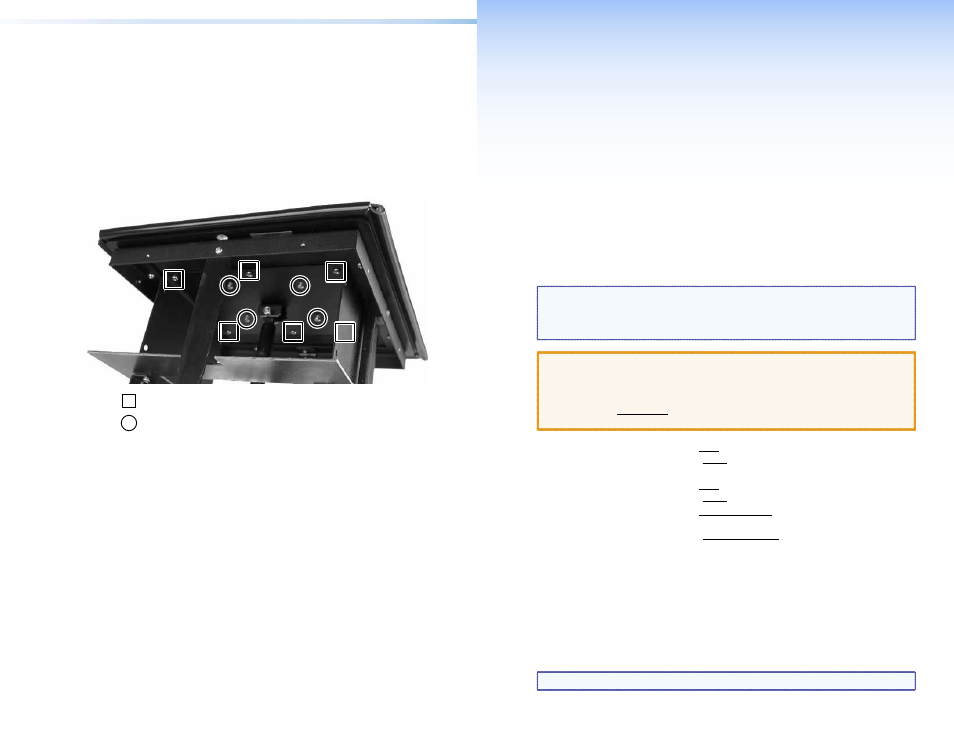

Indicates the location of the locking screws.
(One screw is concealed.)
Indicates the location of the adjustment screws.
Figure 20. Location of Level Adjustment and Locking Screws
4. Carefully turn the four adjustment screws on the underside of the
top panel to level the top panel with the flange.
5. Tighten the six screws that you loosened in step 3.
6. Reinstall the surface mount enclosure. See “ Removing and
Replacing the Enclosure ”, steps 12 through 18.
Reference Information
This section provides additional reference information for the
HSA 822. Topics covered include:
• Specifications
• Part Numbers
• Included Parts
• Template, Replacement Parts, and Accessories
• Interface Accessories
• Top Plate Dimensions
Specifications
NOTE: The Universal AC outlet is fully compatible with Europlug, British,
Indian, Danish, and Italian plug types. See the Universal AC Outlet
Compatibility Guide on the Extron website,
www.extron.com , for
compatibility details on all plug types.
CAUTION: Use the appropriate metal Extron routing template or refer to
the surface cutout dimensions here before cutting a hole in the
furniture or other surface. Pay special attention to the direction
the unit will face; the AAP and connector access side of the unit
is underlined. Extron is not responsible for miscut mounting
holes.
Top plate (outer rim) ......... 8.47" W x 8.75" D
(21.51 cm W x 22.23 cm D)
Top plate (vertically lifting plate)
6.22" W x 6.50" D
(15.80 cm W x 16.51 cm D)
Surface cutout ................... 8.03 +0.00/-0.02" W (AAP access from front
and back) x 8.33 +0.00/-0.02" D
(20.40 +0.00/-0.05 cm W x 21.16 +0.00/-0.05 cm D)
Clamshell (see figure 21) ... A = 6.78" (17.2 cm)
B = 8.10" (20.6 cm)
C = 10.89" (27.7 cm)
Product weight .............................. 8.8 lbs (4.0 kg)
Shipping weight ............................ 15 lbs (7 kg)
Regulatory compliance
Safety ................................. CE, CSA C/US, c-UL, UL
MTBF (gas lift) ............................... 100,000 cycles
Warranty ........................................ 3 years parts and labor
NOTE: Specifications are subject to change without notice.
