8.
Insert the opposite end of the HSA 822 and the clamshell into the
remaining foam shell (see figure 28). Firmly push the foam shells
together as far as they will go to completely suspend the HSA and
clamshell. The sides of the clamshell protrude through slots in the
foam.

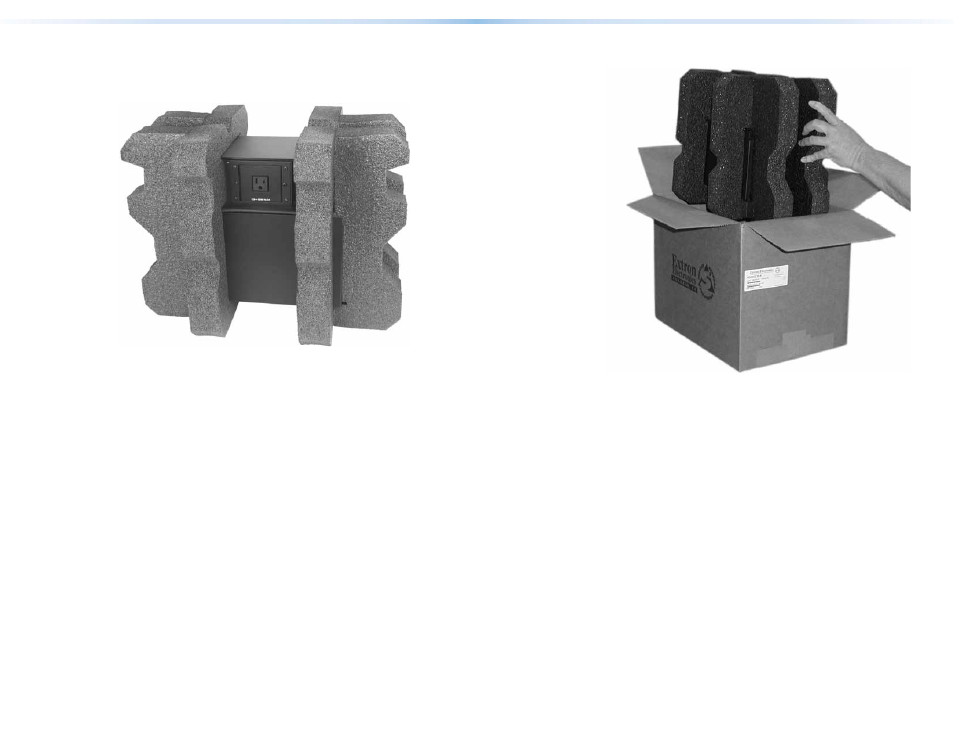

Figure 28.
HSA Suspended in the Foam
9.
Lower the foam-protected HSA into the shipping carton
(see figure 29).
Figure 29.
Placing the HSA in the Shipping Carton
10.
Close the shipping carton and seal it with high quality shipping
tape.
11.
Ship the HSA to Extron using a reputable shipping company.
36
HSA 822 Hideaway Enclosure • Packaging for Shipment
37
HSA 822 Hideaway Enclosure • Packaging for Shipment
