Cabling and Installing the AAPs
NOTE: The online Connectivity Configurator, available at
www.extron.com , offers guidance as to the fit of AAPs
into this space.
The various Extron single space and double space AAP devices,
including the various RGB 580xi AAPs, can be mounted to the
HSA 822. See “
Reference Information ” for RGB 580xi AAP part
numbers.
The screws for installing an AAP are built into its AAP panel, so no
additional screws are needed.
WARNING: Ensure that AC power is disconnected before
servicing the HSA unit.
1. Remove the top and bottom screws on the right and left sides
of the AAP panel (see figure 6). Retain the screws. Lift the panel
away from the enclosure as far as the connected cables allow and
then allow the panel to dangle, supported by its connected cables.
NOTES: • The center screws on each side of the AAP panel do
not fasten the AAP panel in place. They secure the
AC power outlet.
• Ensure that the edges of the AAP panels do not
scratch the finished surface of the top panel flange
when removing the panels.
Replacement Faceplate
Screws (4) Under Enclosure
Remove panel.
Remove two
screws each side.
HSA 822

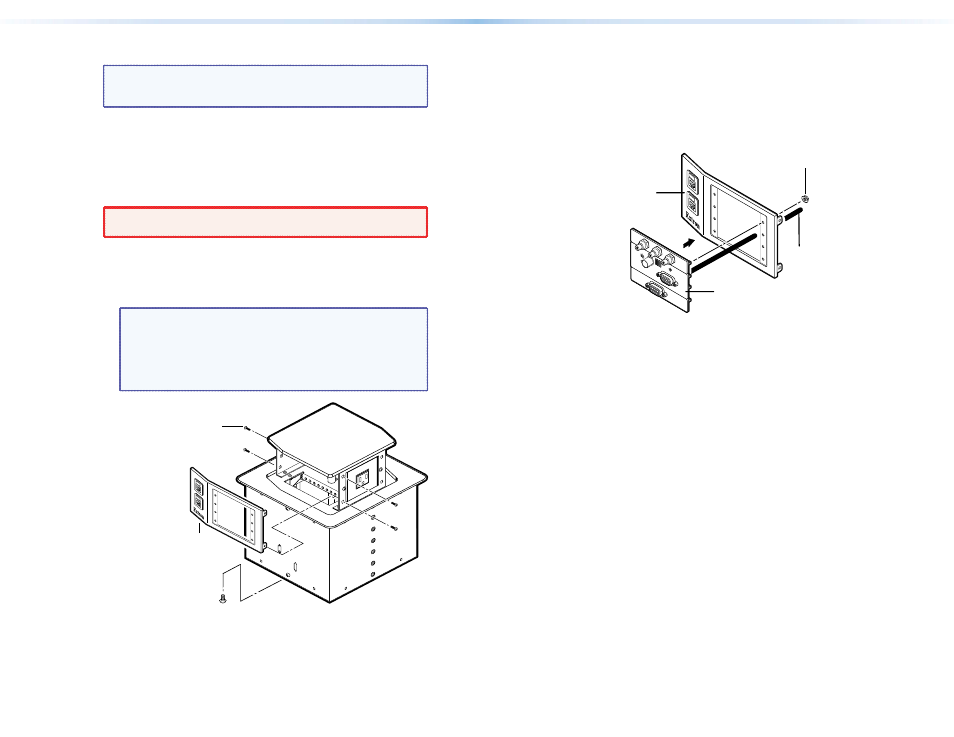

Figure 6. Removing the AAP Panel from an HSA 822
2. Cable the rear of the AAPs before fastening the AAPs to the
AAP panel. Route the cables through the hole in the underside
of the surface mount enclosure and connect them to the rear of
the AAPs. If applicable, refer to the cabling information in the
documentation for the AAP.
3. Insert each of the AAP screws through the holes in the AAP
opening of the HSA AAP panel. Secure each AAP to the panel with
the provided captive washers and #4-40 nuts (see figure 7).
#4-40 Nut w/ Captive
Washer
Cable
AAP Panel
HSA 822
RGB 580xi SI AAP
COMPUTER
INPUT SELECT
AUDIO
Figure 7. Mounting an AAP Device on the AAP Panel
4. Replace the AAP panel in the surface mount enclosure and secure
it in place with the screws removed in step 1. If you lose an AAP
panel screw, four spare screws are stored in the underside of the
enclosure.
