4 INSTALACIÓN
4 INSTALACIÓN
4 INSTALACIÓN
4 INSTALACIÓN
La tarjeta se suministra ya conectada al cuadro y programada; si es necesario modificar la configuración,
véase el capítulo Configuraciones. Para las conexiones hacer referencia al esquema del cuadro eléctrico.
No poner en marcha las bombas antes de haberlas llenado con el líquido. Véase
el manual de instrucciones de las bombas.
Detalles de conexiones, véase el esquema del cuadro eléctrico.

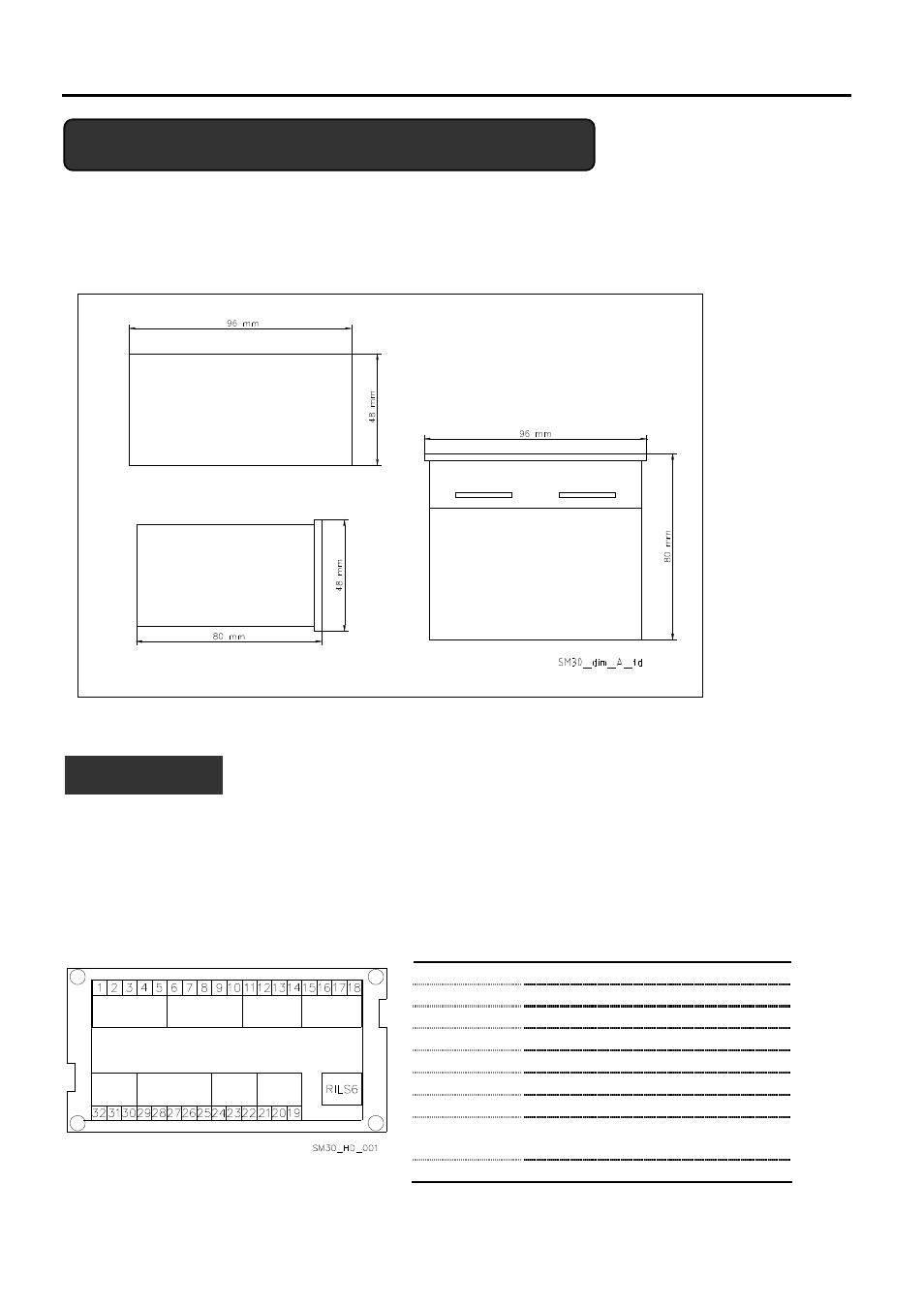

4.1 Panorámica de terminales
4.1 Panorámica de terminales
4.1 Panorámica de terminales
4.1 Panorámica de terminales
Grupo A
Entradas digitales optoaisladas
Grupo B
Entradas digitales optoaisladas
Grupo C
Relé alarma
Grupo D
Mando relé bombas
Grupo E
Comunicación Bus RS485
Grupo F
Control Nivel
Grupo G
Entradas/Salida analógicas
Grupo H
Alimentación +24 Vc.a./c.c. +/-
15%
RILS 6
Conexión tarjeta RILS6
INFORMACIÓN PARA EL INSTALADOR
A
B
C
D
E
F
G
H
ATENCIÓN
