Asus GigaX2048 - Manual (Page 91)

GigaX Series L2 Managed Switch User Guide
4.9.4 Policy Set
A policy set specifies which class set is acted. Policy actions can include
setting a specific DSCP value in the traffic class or specifying traffic rate
limitation and the action to take when the traffic is out of traffic rate and
burst size.
Users can create a policy by giving a name. The policy names cannot be
duplicate. The switch only can have 56 policies and 256 policy rules.
Firstly, you have to create a policy by giving a name and click on
. Secondly, just click on to select the policy that you want to
edit or remove. And then click on to enter the Policy Edit page or
click on to remove the policy. A policy only can have 6 policy
actions.

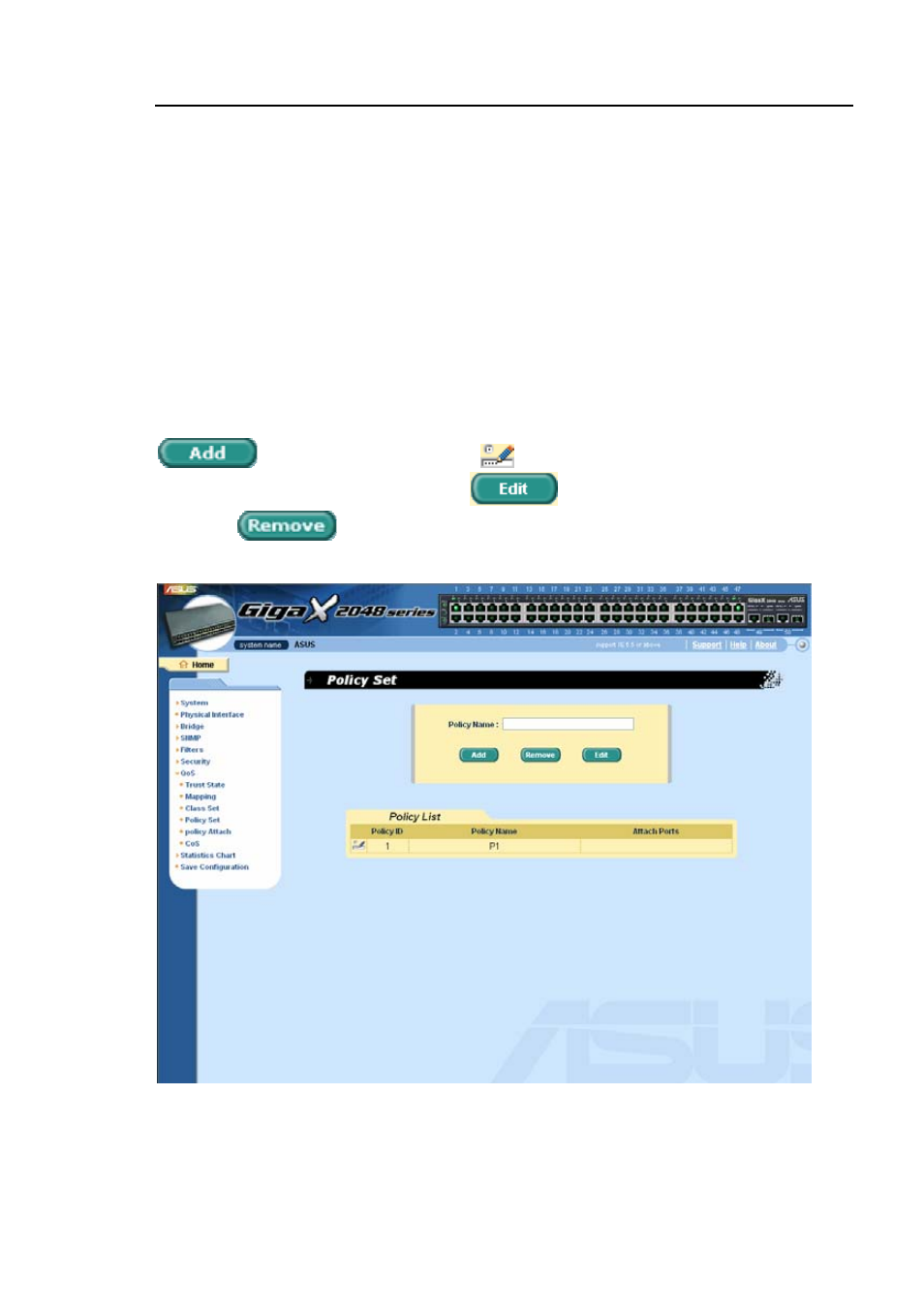

Figure 58. Policy Set
