Click on the when you create a new static MAC address by the
above information. Then you will see the new added entry shows in the address
window. You can remove the existed address by selecting the entry with the
mouse, then clicking on . The button updates the existed
MAC address entries. Click to save effective. Click to refresh
the settings to current value. To make the configuration effective, please go to
“save configuration” page, then click
.

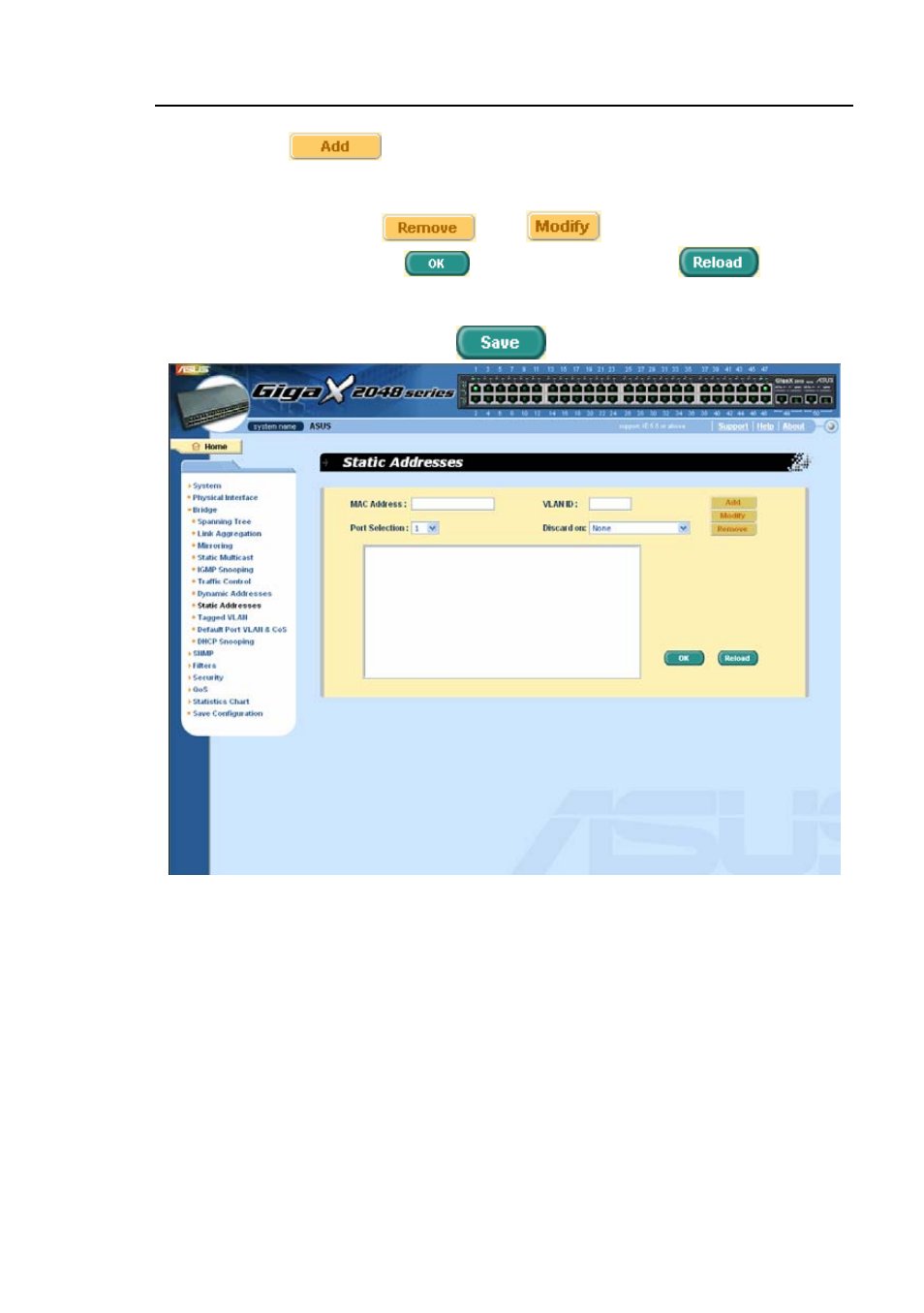

Figure 32. Static Address
4.5.8 Tagged VLAN
You can set up to 255 VLAN groups and show VLAN group in this page.
There is a default VLAN created by the switch. It cannot be removed at all.
This feature prevents the switch from malfunction. You can remove any
existed VLAN except the default VLAN.
You can assign the port to be a tagged port or an untagged port by toggling
the port button. There are three types of button display as follows:
“U” type: untagged port that will remove VLAN tags from the
transmitted packets.
