GigaX Series L2 Managed Switch User’s Guide
32
4.2 Functional layout
Typical web page consists of three separate frames. The top frame has a
switch logo and front panel as shown in Figure 13 and Figure 14. This
frame remains on the top of the browser window all the times and updates
the LED status periodically. See Table 4 for the LED definitions. See Table
5 for the color status description.

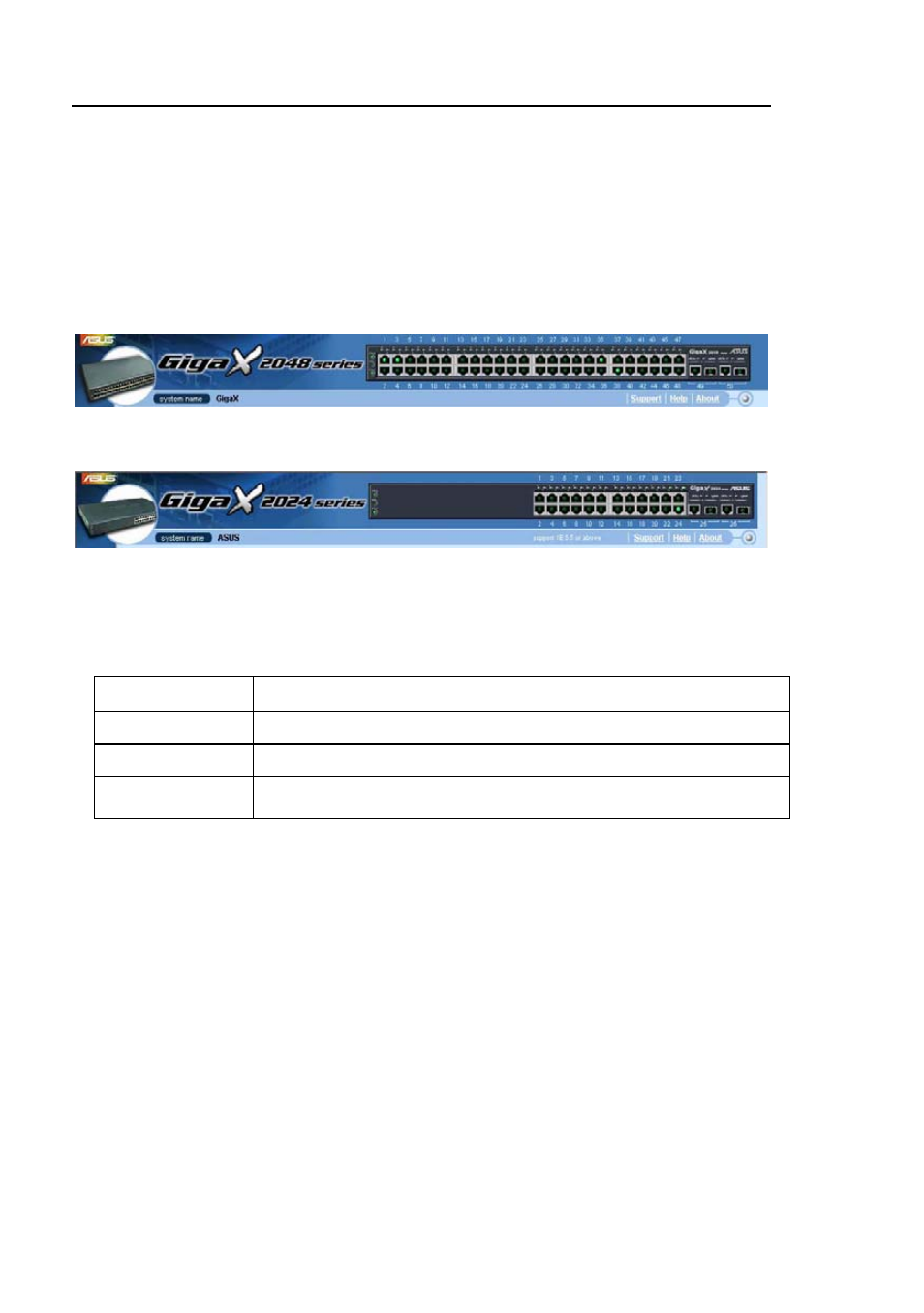

Figure 13. Top frame (GigaX 2048)
Figure 14. Top frame (GigaX 2024)
Table 5. Port color description
Port Color Description
Green port Ethernet link is established
Black No Ethernet link
Amber port Link is present but port is disabled manually or by spanning tree
Clicking on the port icon of the switch displays the port configuration in the
lower right frame.
The left frame, a menu frame as shown in Figure 15, contains all the
features available for switch configuration. These features are grouped into
categories, e.g. System, Bridge, etc. You can click on any of these to
display a specific configuration page.
