• You may use a 4-pin ATX12V
power plug for this connector.
• Make sure to remove the cap on
the connector before connecting
an 8-pin EPS +12V power plug.
• Use only either a 4-pin ATX12V or
an 8-pin EPS +12V power plug.
Connecting other power plug types
may cause serious damage to the
system.
I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s
• For a fully configured system, we recommend that you use a power
supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or
later version) and provides a minimum power of 400 W.
• Do not forget to connect the 8-pin/4-pin EATX12 V power plug;
otherwise, the system will not boot up.
• Make sure that the PSU can support at least 8 A on the +12V_1
lead and 13 A on the +12V_2 lead.
• The ATX 12 V Specification 2.0-compliant (400 W) PSU has been
tested to support the motherboard power requirements with the
following configuration:
CPU : Intel ® Pentium ® 4 3.73 GHz Extreme Edition
Memory : 512 MB DDR2 (x 4)
Graphics cards : 1 x PCIe x16 ATI CrossFire Edition card
1 x PCIe x16 ATI CrossFire-ready card
Parallel ATA device : IDE hard disk drive
Serial ATA device : SATA hard disk drive (x2)
Optical drives : DVD-RW
• Use of a PSU with a higher power output is recommended when
configuring a system with more power consuming devices. The
system may become unstable or may not boot up if the power is
inadequate.
• If you want to use two high-end PCI Express x16 graphics cards, use
a PSU with 450 to 500 W power to ensure system stability.
• To support an Intel ® Dual-Core CPU up to 840 Extreme Edition, make
sure that the PSU can provide at least DC 16A (peak 22A) on the
+12V_2 lead. The vendors list on the next page is provided for your
reference.

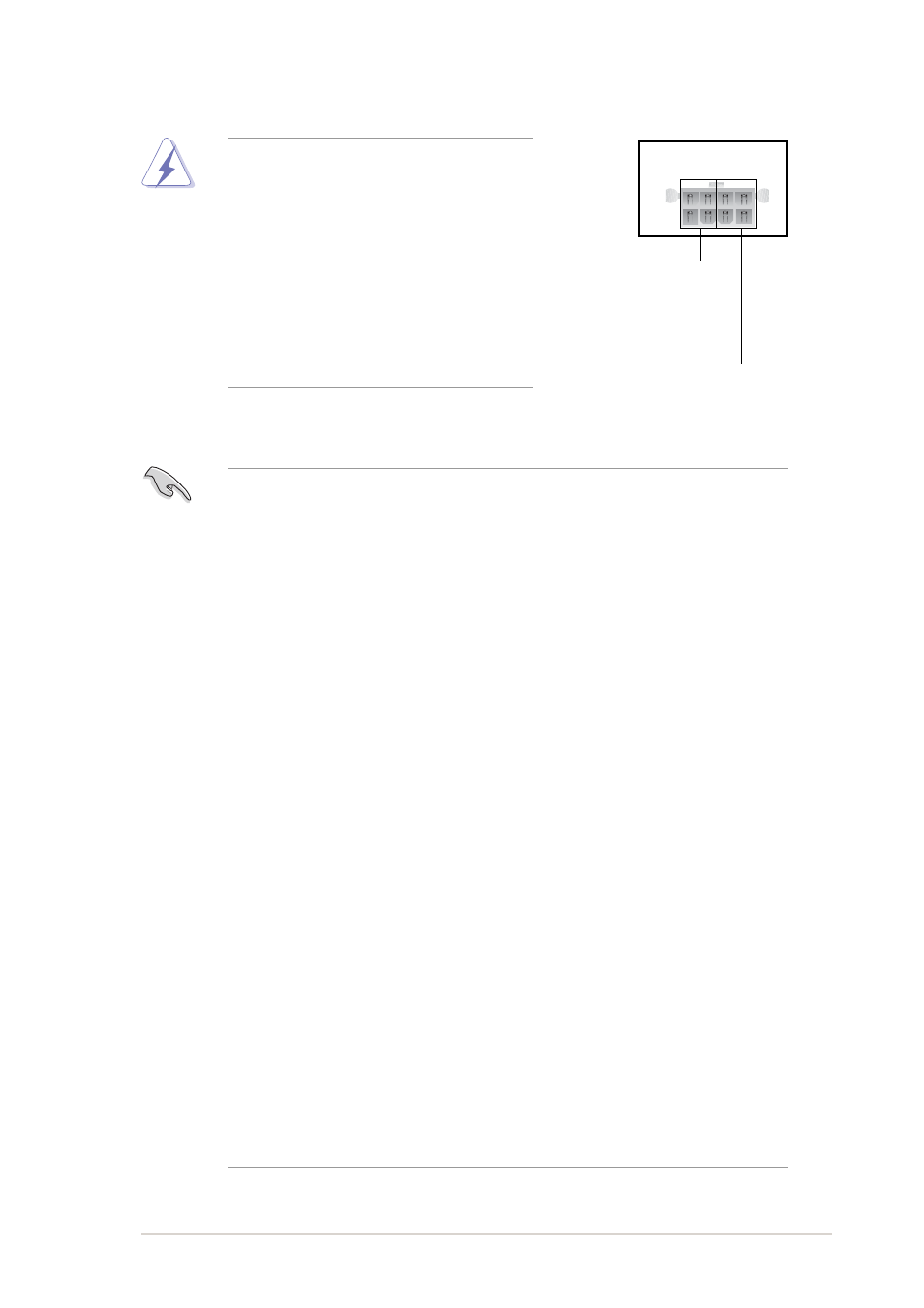

ATX12V
C o n n e c t a C o n n e c t a C o n n e c t a C o n n e c t a C o n n e c t a
4 - p i n p o w e r 4 - p i n p o w e r 4 - p i n p o w e r 4 - p i n p o w e r 4 - p i n p o w e r
p l u g h e r e p l u g h e r e p l u g h e r e p l u g h e r e p l u g h e r e
R e m o v e t h e c a p R e m o v e t h e c a p R e m o v e t h e c a p R e m o v e t h e c a p R e m o v e t h e c a p
b e f o r e u s i n g a n b e f o r e u s i n g a n b e f o r e u s i n g a n b e f o r e u s i n g a n b e f o r e u s i n g a n
8 - p i n p o w e r p l u g 8 - p i n p o w e r p l u g 8 - p i n p o w e r p l u g 8 - p i n p o w e r p l u g 8 - p i n p o w e r p l u g
2x4-pin EATX12V
