The connectors do not support ATAPI devices.

2 .

M a r v e l l I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] )

M a r v e l l I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] )
This connector is for Ultra ATA 133/100/66 signal cables. The
Marvell

IDE connectors support up to two IDE hard disk drives for

easier data storage.

2.7.2

Internal connectors

1 .

F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y )

F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y )
This connector is for the provided floppy disk drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other
end to the signal connector at the back of the floppy disk drive.

Pin 5 on the connector is removed to prevent incorrect cable connection
when using a FDD cable with a covered Pin 5.

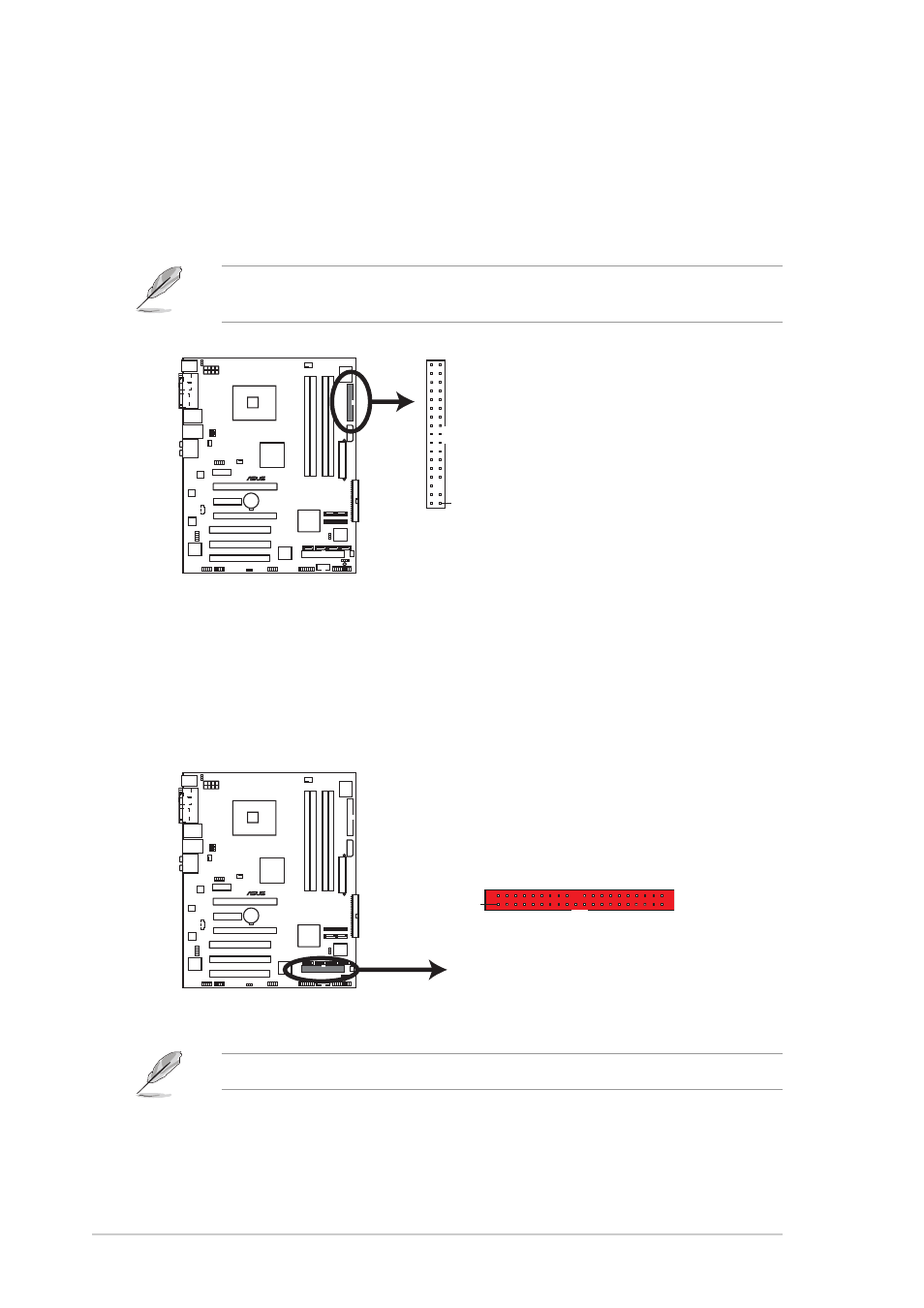

P5WD2-E PREMIUM Floppy Disk Drive Connector

NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.

PIN 1

FLOPPY

P5WD2-E

P5WD2-E PREMIUM RAID Connector

NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.

PRI_EIDE

PIN 1

P5WD2-E
