2 - 3 6 2 - 3 6 2 - 3 6 2 - 3 6 2 - 3 6 C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n
1 4 . 1 4 . 1 4 . 1 4 . 1 4 . ATX power connectors ATX power connectors ATX power connectors ATX power connectors ATX power connectors
(24-pin EATXPWR,
(24-pin EATXPWR, (24-pin EATXPWR, (24-pin EATXPWR, (24-pin EATXPWR, 2 x 4 2 x 4 2 x 4 2 x 4 2 x 4-pin -pin -pin -pin -pin E EE EE ATX12V ATX12V ATX12V ATX12V ATX12V, 4 - p i n E Z _ P L U G , 4 - p i n E Z _ P L U G , 4 - p i n E Z _ P L U G , 4 - p i n E Z _ P L U G , 4 - p i n E Z _ P L U G)))))
These connectors are for ATX power supply plugs. The power supply
plugs are designed to fit these connectors in only one orientation.
Find the proper orientation and push down firmly until the connectors
completely fit.
When installing two VGA cards using a 20-pin ATX PSU with sufficient
+12V capability, we recommend that you connect the EZ Plug for better
current path from +12V. Refer to the PSU documentation for dual VGA
power requirements.

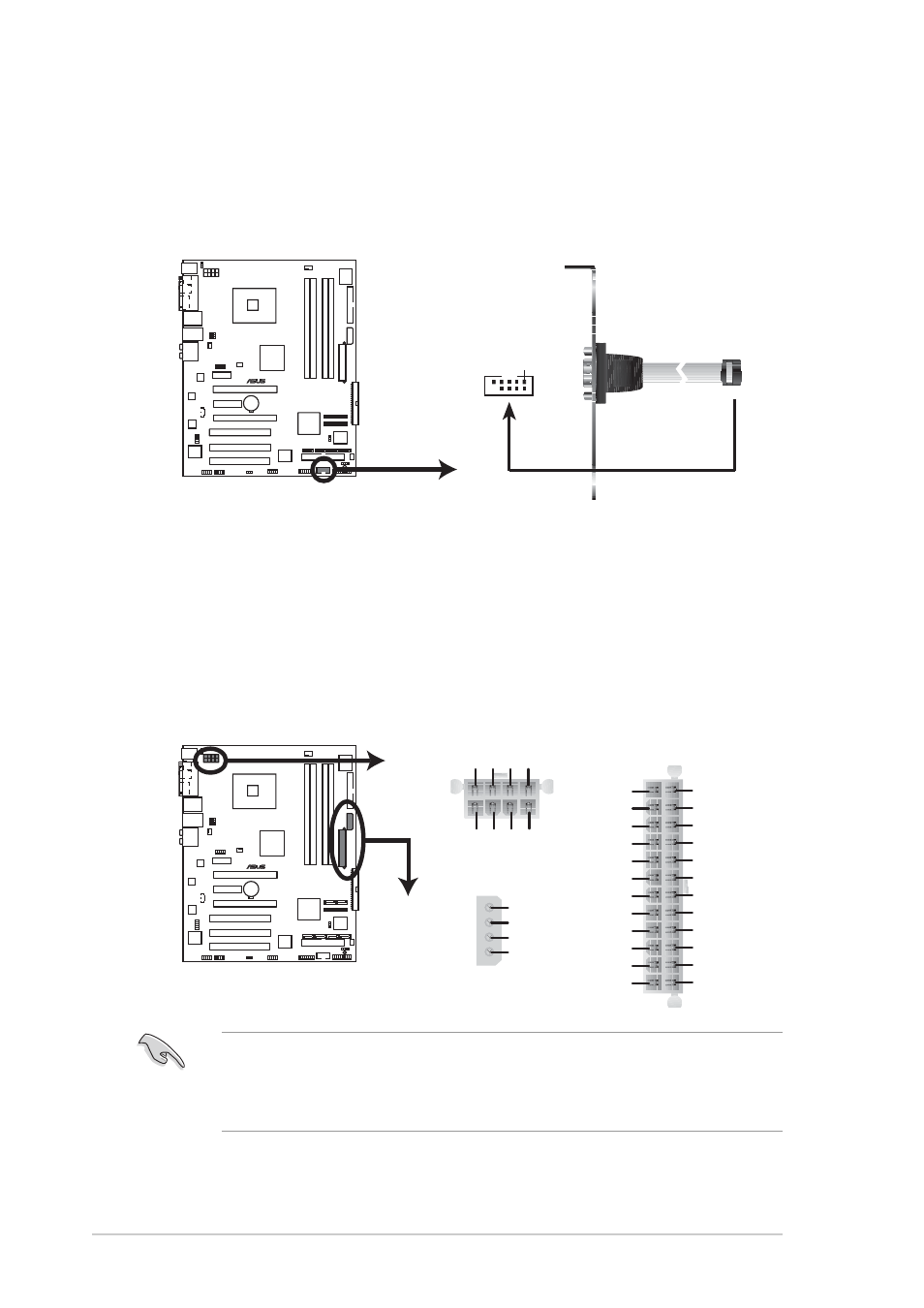

1 3 . 1 3 . 1 3 . 1 3 . 1 3 . Serial port connector (10-1 pin COM1) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 )
This connector is for a serial (COM) port. Connect the serial port
module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
P5WD2-E PREMIUM COM Port Connector
PIN 1
COM1
P5WD2-E
®
P5WD2-E PREMIUM ATX Power Connectors
EATXPWR
EATX12V
EZ_PLUG +5V
EZ_DET
GND
+12V
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
24P_DET
+5 Volts
Ground
GND
+12V D
C
GND
+12V D
C
GND
+12V D
C
GND
+12V D
C
