3 . 3 . 3 . 3 . 3 . K e y b o a r d p o w e r ( 3 - p i n K B P W R ) K e y b o a r d p o w e r ( 3 - p i n K B P W R ) K e y b o a r d p o w e r ( 3 - p i n K B P W R ) K e y b o a r d p o w e r ( 3 - p i n K B P W R ) K e y b o a r d p o w e r ( 3 - p i n K B P W R )
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) if you wish to wake up
the computer when you press a key on the keyboard (the default is
the Space Bar). This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead, and a corresponding setting in
the BIOS.

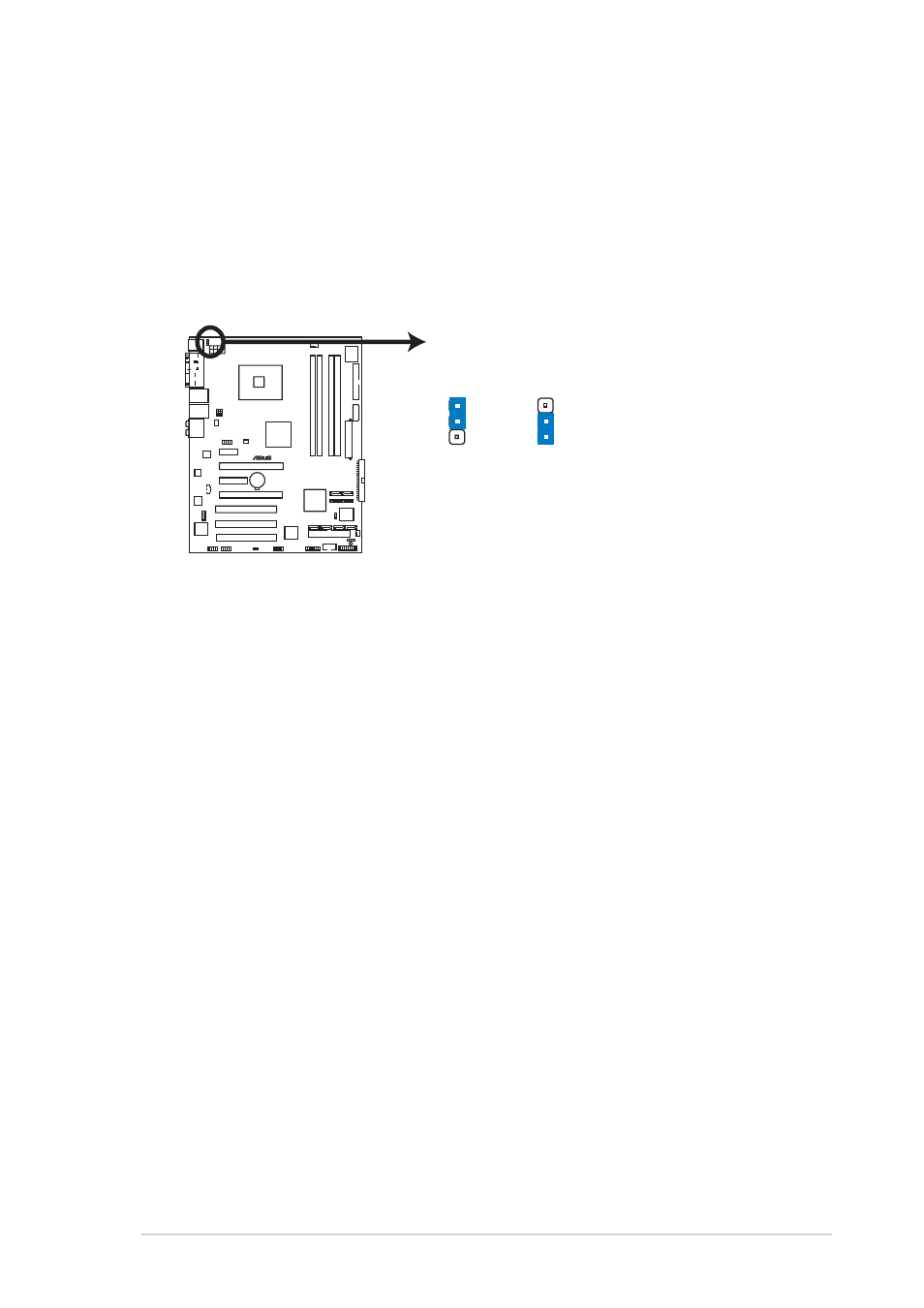

P5WD2-E PREMIUM Keyboard Power Setting
(Default)
+5V +5VSB
KBPWR
2
3
1
2
