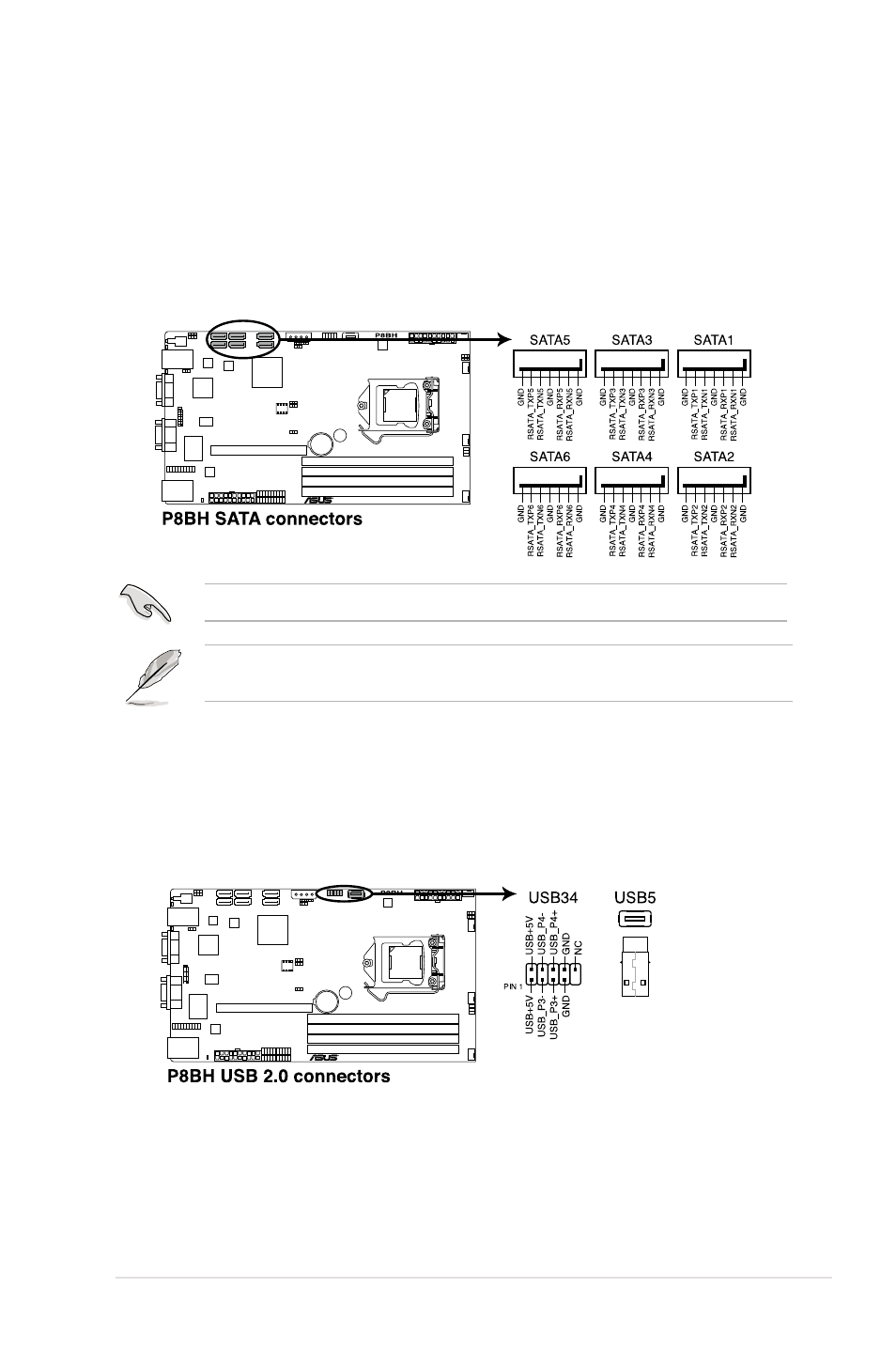

4.3 Internal connectors
1. Serial ATA connectors (SATA 6Gb/s: 7-pin SATA1, SATA2 [Blue]) (SATA 3Gb/s:
7-pin SATA3, SATA4, SATA5, SATA6 [Black])
Supported by the Intel
® C204 chipset, these connectors are for the Serial ATA signal
cables for Serial ATA hard disk drives that allows up to 6Gb/s of data transfer rate.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 10,
or RAID 5 configuration.
The actual data transfer rate depends on the speed of Serial ATA hard disks installed.
2. USB connector (10-1 pin USB34, USB56; A-Type USB5)
These connectors are for USB 2.0 ports. Connect the USB module cables to
connectors USB34, then install the modules to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
For details on the Intel ® Rapid Storage Technology utility, please refer to Chapter 6 RAID
Configuration.
