Asus RS320Q-E7/RS12 User Manual
Page 53
ASUS RS320Q-E7/RS12
4-5
2.

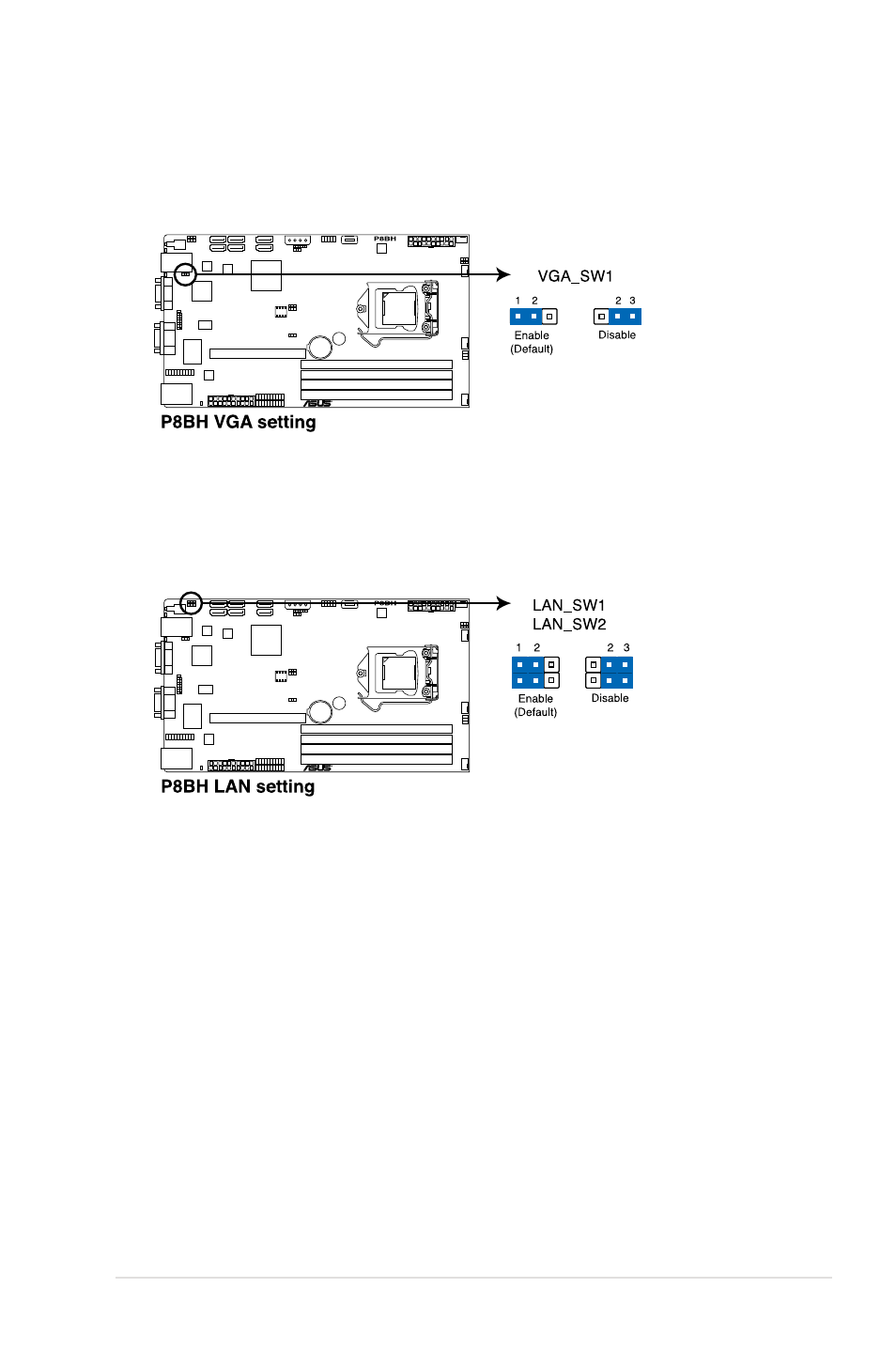

VGA controller setting (3-pin VGA_SW1)
This jumper allows you to enable or disable the onboard VGA controller. Set to pins 1–2
to activate the VGA feature.
3.
LAN controller setting (3-pin LAN_SW1, LAN_SW2)
These jumpers allow you to enable or disable the onboard Intel
®
Intel 82574LGigabit LAN
controllers. Set to pins 1–2 to activate the Gigabit LAN feature.
