Asus RS320Q-E7/RS12 User Manual
Page 42
Chapter 2: Hardware setup
2-22

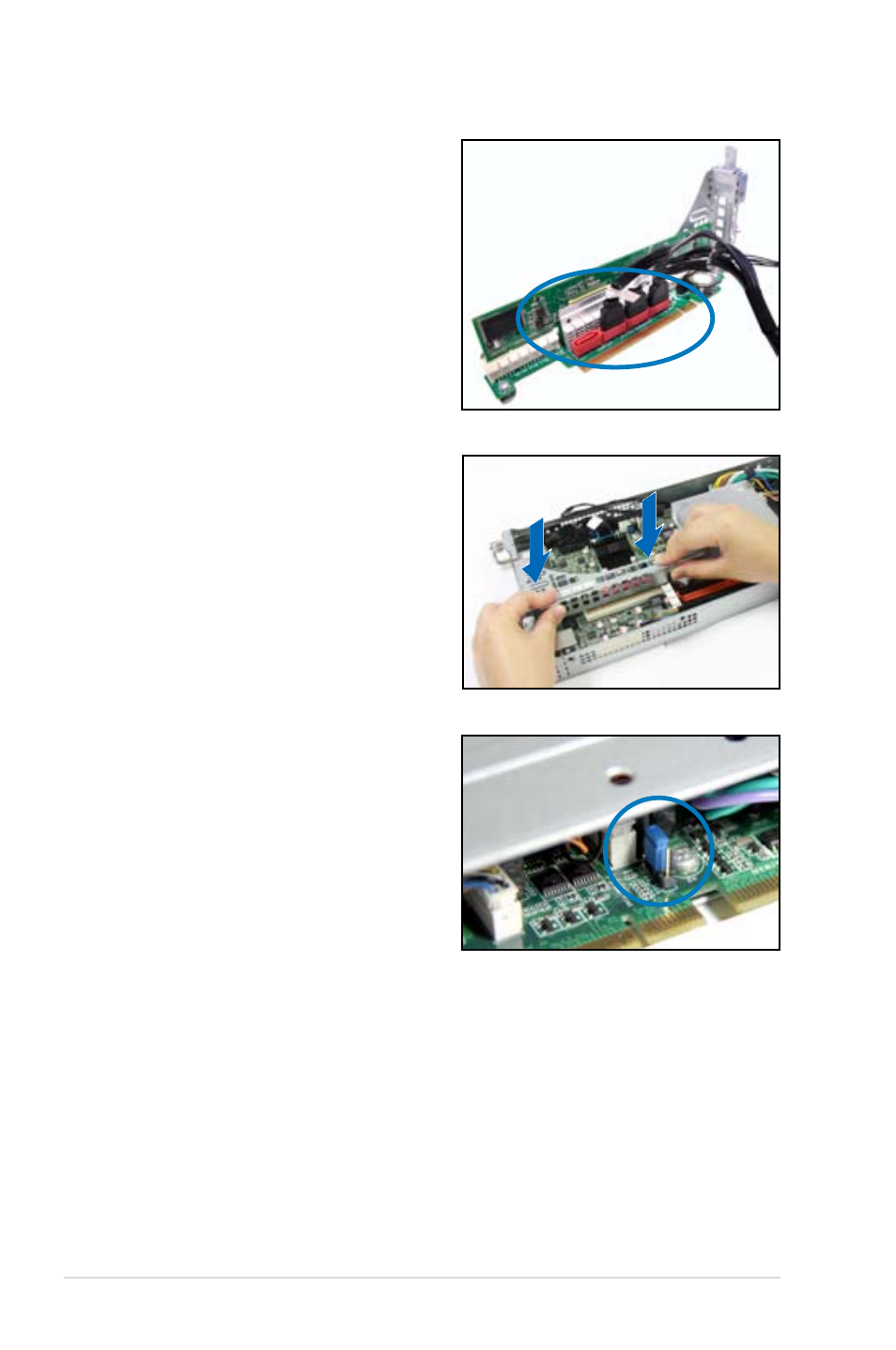

10. Connect the SATA/SAS cables to the
SAS1–3 connectors on the PIKE riser
card.
13. Move the SGPIO_SEL jumper in front
of the server node from pin
1–2 to pin 2–3.
11. Align the riser card bracket to the PCI
Express x16 slot on the motherboard.
12. Press the riser card bracket until the
golden fingers completely fit the slot and
the bracket aligns with the rear panel.
