2.3
System memory
2.3.1
Overview
The motherboard comes with four (4) Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.

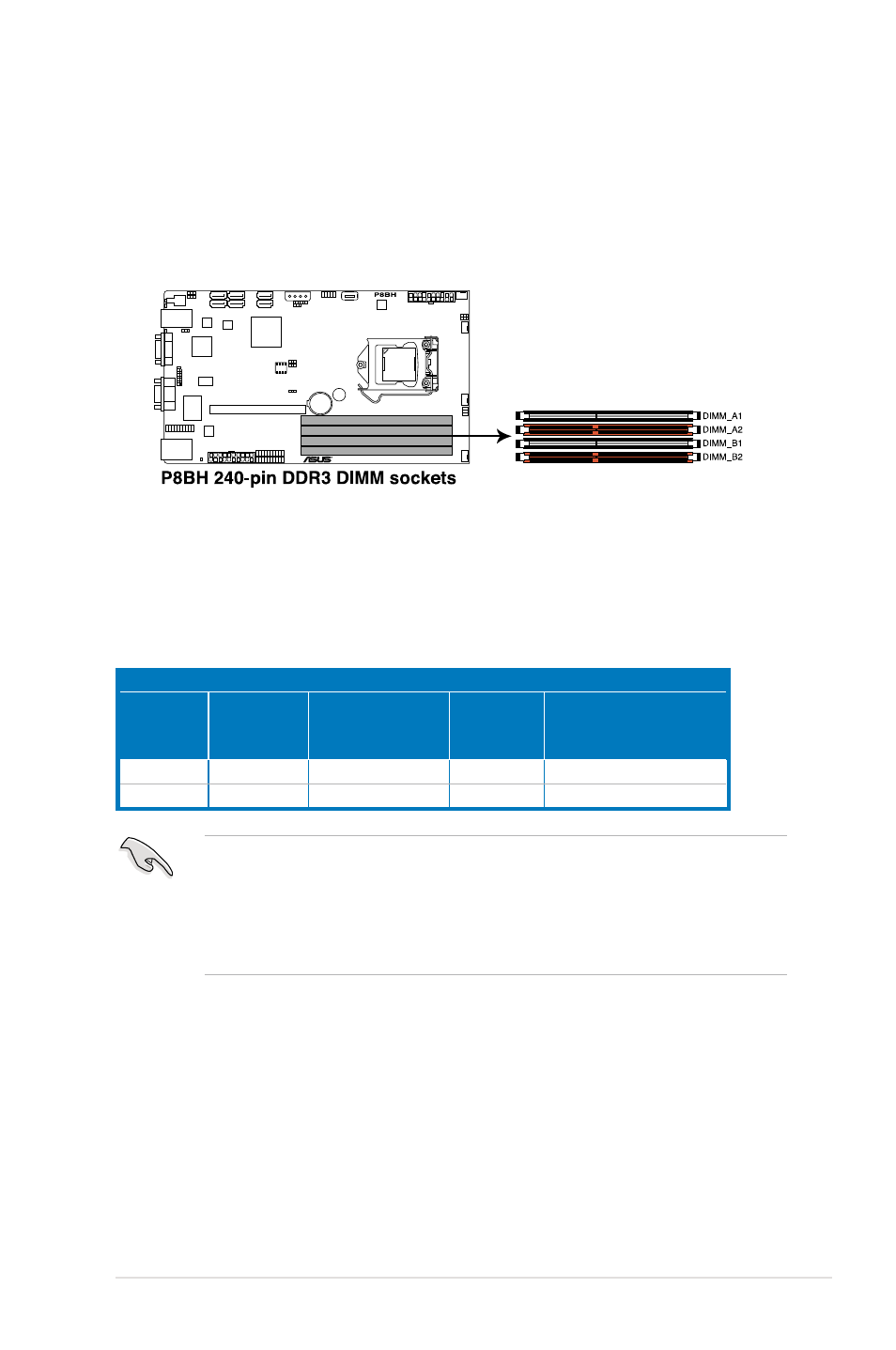

The figure illustrates the location of the DDR3 DIMM sockets:
2.3.2
Memory Configurations
You may install 1 GB, 2 GB, 4 GB, or 8 GB Unbuffered with ECC DDR3 DIMMs into the
DIMM sockets using the memory configurations in this section.
•
*Refer to ASUS Server AVL for latest update.
•
Start installing the DIMMs in slots A2 and B2 (orange).
•
Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or data code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
UDIMM
DIMM
Slot Per
Channel
DIMM
Populated
per Channel
DIMM Type
Speed
Rank per DIMM
2
1
Unbuffered DDR3 1333/1600* Single Rank, Dual Rank
2
2
Unbuffered DDR3 1333/1600* Single Rank, Dual Rank
