Chapter 4: Motherboard information 4-6
4.. Gigabit.LAN1.controller.setting.(3-pin.LAN_EN1)
This jumper allows you to enable or disable the Broadcom ® Gigabit LAN
controller that controls the LAN1 port. Place a jumper cap on pins 1-2 to
activate the Gigabit LAN1 controller.
5.. Gigabit.LAN2.controller.setting.(3-pin.LAN_EN2)
This jumper allows you to enable or disable the Broadcom ® Gigabit LAN
controller that controls the LAN2 port. Place a jumper cap on pins 1-2 to
activate the Gigabit LAN2 controller.

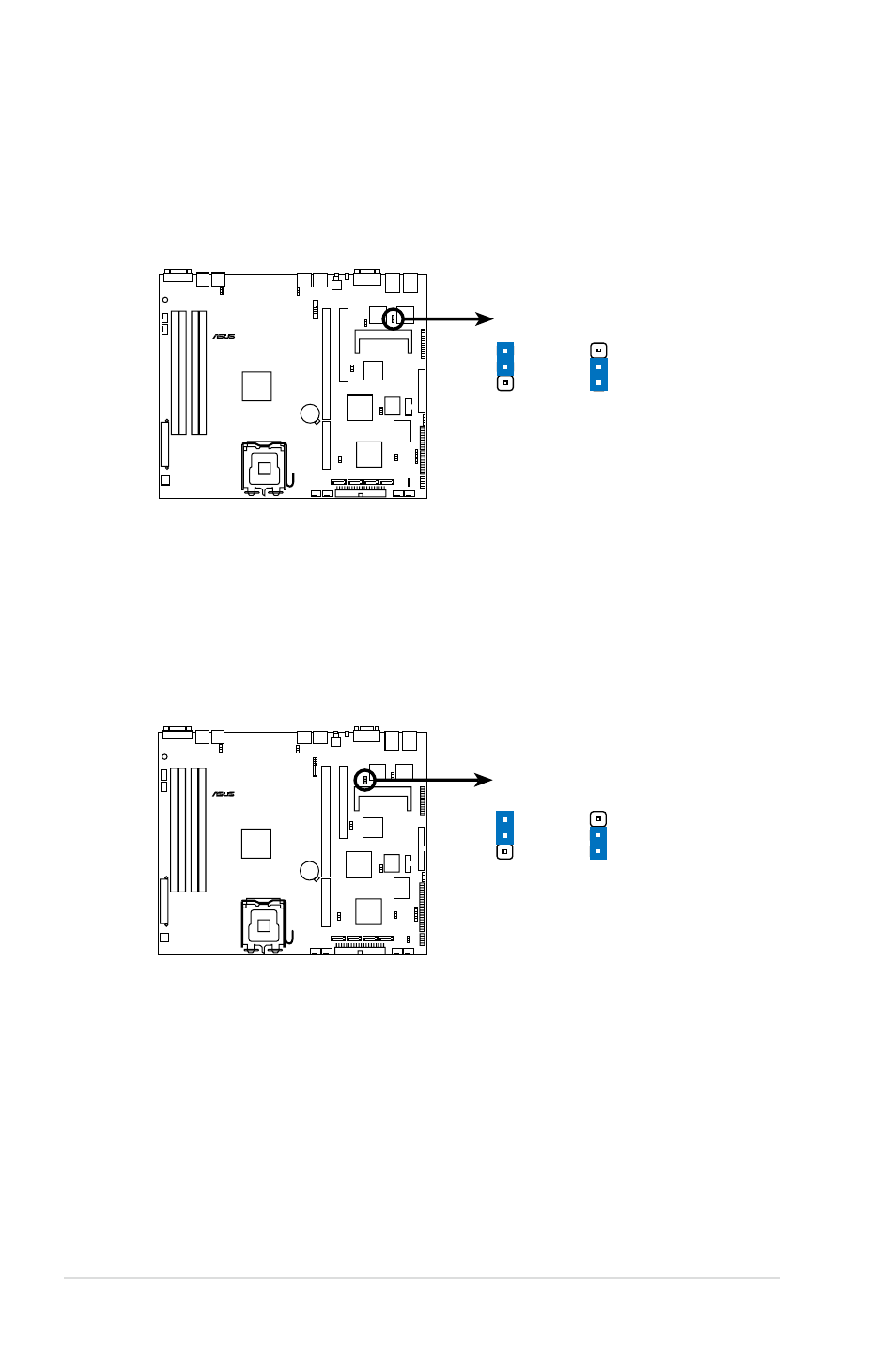

P5M2-R
®
P5M2-R.Gigabit.LAN1.setting
Enable
(Default)
Disable
LAN_EN1
2
1
2
3
P5M2-R
®
P5M2-R.Gigabit.LAN2.setting
Enable
(Default)
Disable
LAN_EN2
2
1
2
3
