ASUS RS120-E4/PA4 6-11
6.2.2. Creating.a.RAID.10.set
You can create a RAID 10 set using four identical hard disk drives.
To create a RAID 10 set using the Easy Configuration option:

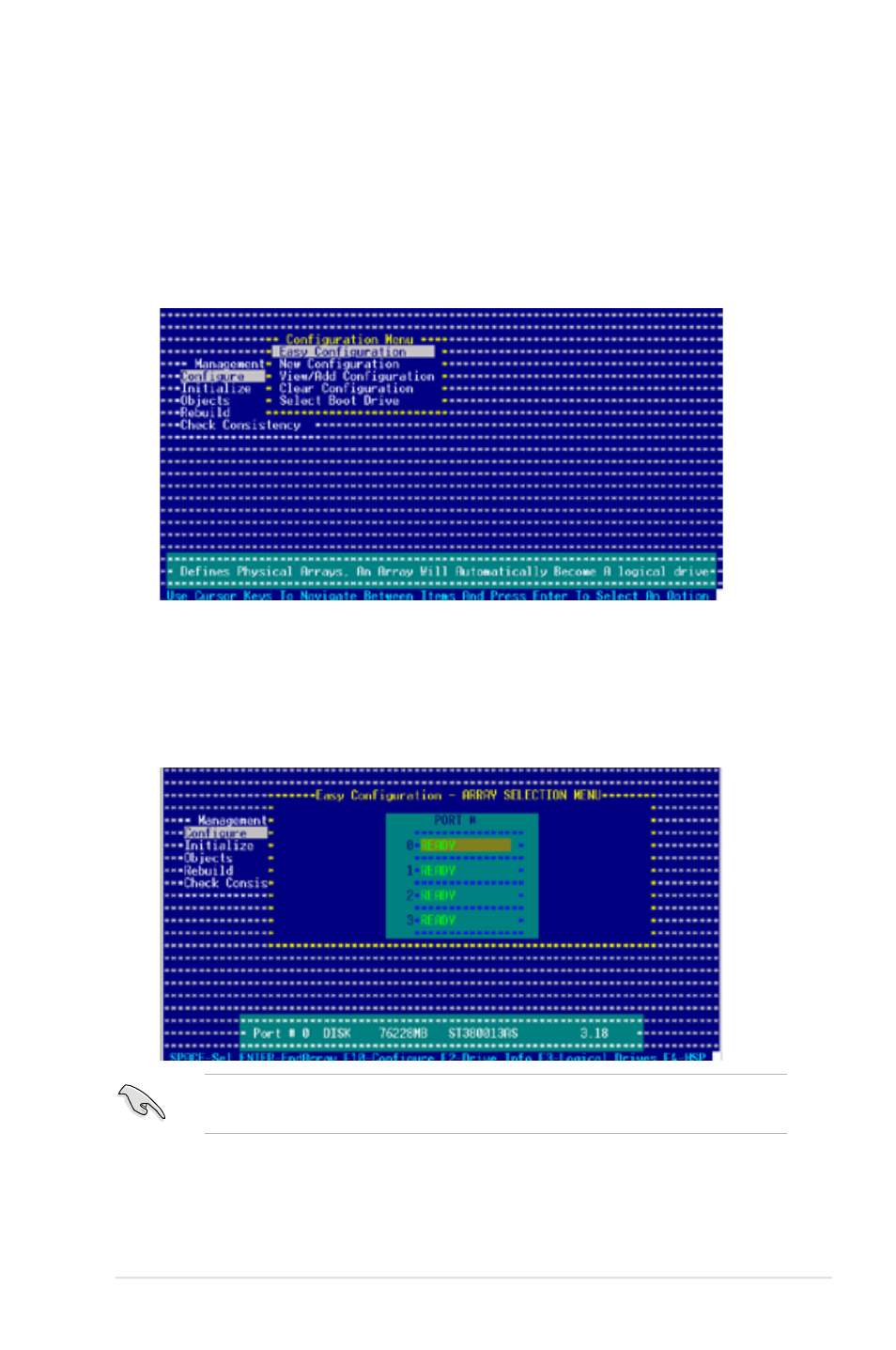

1. From the utility main menu, highlight Configure, then press .
2. Use the arrow keys to select Easy Configuration, then press .
3. The ARRAY.SELECTION.MENU displays the available drives connected
to the SATA ports. Select the drive(s) you want to include in the RAID set,
then press . When selected, the drive indicator changes from
READY to ONLIN.A[X]-[Y], where X is the array number, and Y is the drive
number.
The information of the selected hard disk drive displays at the bottom of the
screen.
