2-17 ASUS RS120-E4/PA4

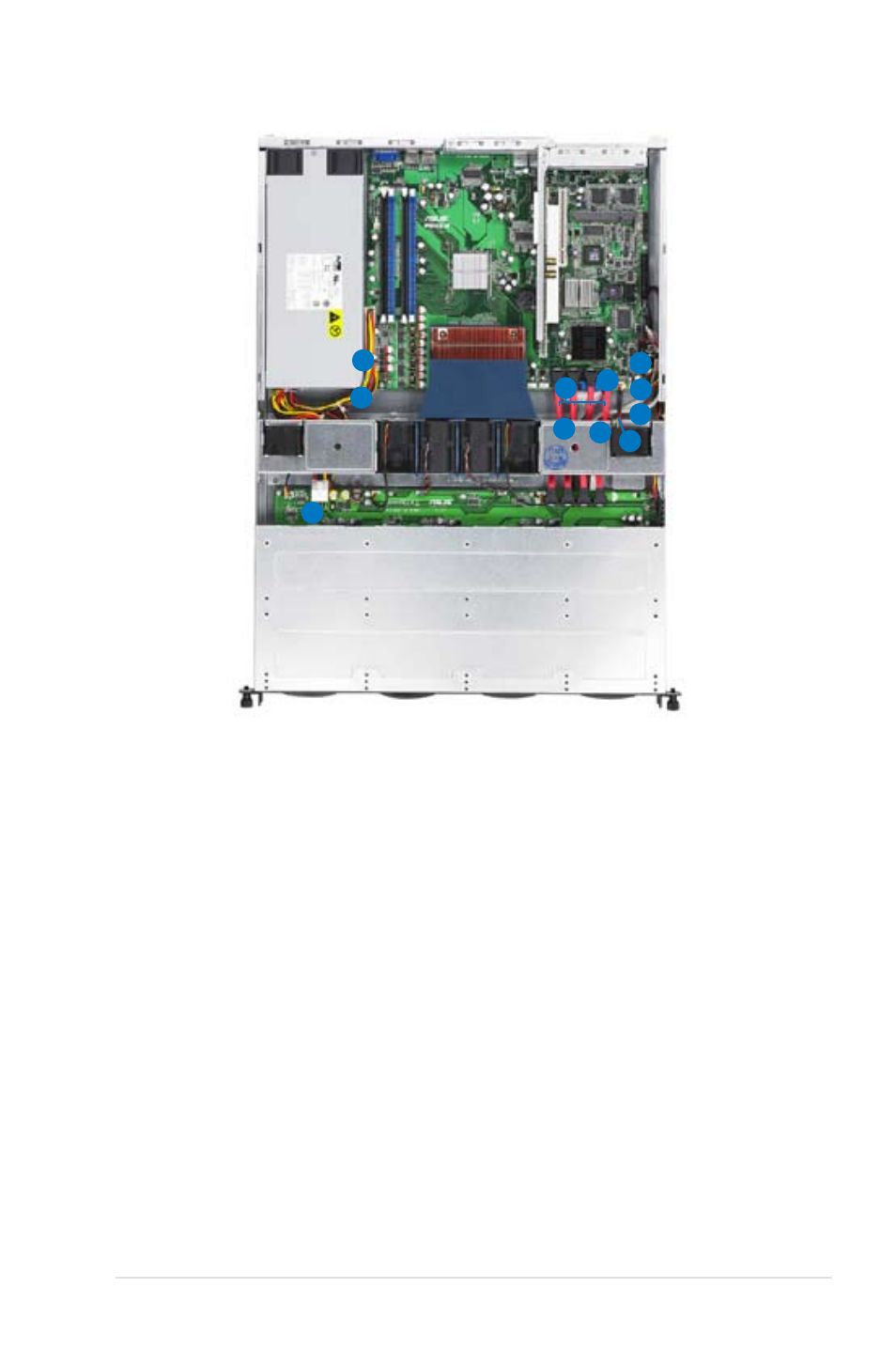

2.6 Cable connections
Pre-connected.system.cables
1. 24-pin SSI power connector (from power supply to motherboard)
2. 4-pin SSI power connector (power supply to motherboard)
3. SATA backplane power connector (from power supply)
4. Primary IDE connector (from motherboard to optical drive)
5. Device fan connector (from motherboard FRONT_FAN3 to device fan)
6. SATA connectors (from motherboard to SATA backplane board)
7. SMBus connector (from motherboard BPSMB1 to SATA backplane J1
connector)
8. Panel connector (from motherboard to front I/O board)
See page 4-17.
9. Auxiliary panel connector (from motherboard to front I/O board)
See page 4-16.
10. USB connector (from motherboard to front I/O board)
11. FRNT_FAN4 connector (from motherboard to FAN_IN connector on SATA
backplane)
1
2
3
4
5
8
9
7
6
10
11
