2.8.2. System.fan.with.dummy.case
The system fan for the memory module(s) comes with a dummy case that allows it
to fit in the fan cage.

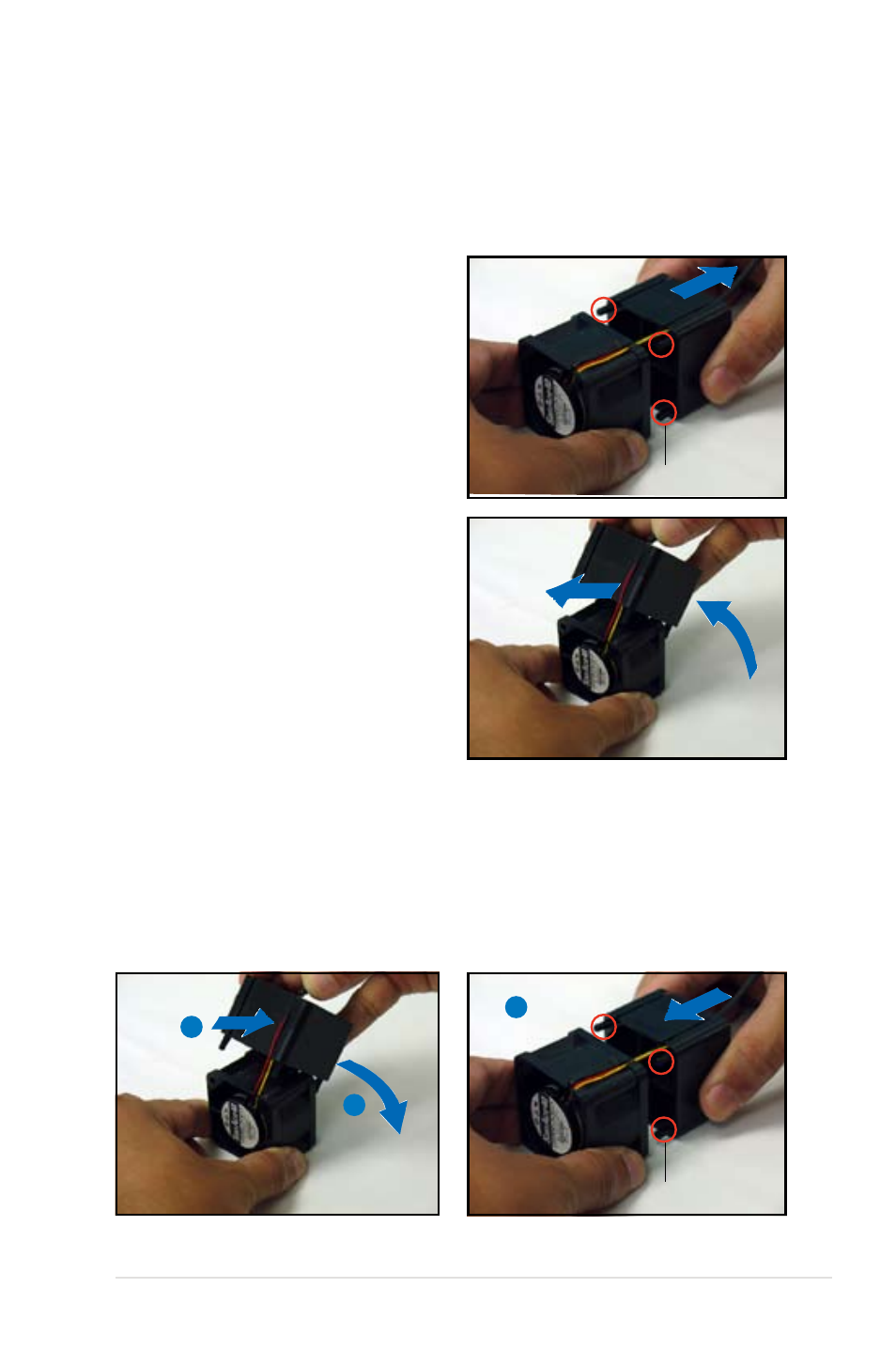

To replace the system fan with dummy case:
1. Uninstall the fan following the
instructions in the previous section.
2. Pull the dummy case to the
direction of the arrow just enough to
disengage its pegs from the system
fan.
To reinstall the system fan with the dummy case:
1. Insert the fan cables to the dummy case cable bay.
2. Turn the dummy case to the direction of the arrow.
3. Insert the dummy case pegs to the system fan holes until it fits in place.
4. Reinstall the system fan by following the instructions in the previous section.
3. Turn the dummy case above the
system fan, then remove the fan
cables by pulling them through the
dummy case cable bay.
4. Replace the system fan.
Peg
Peg
