Data Sheet
March 27, 2008
36 Vdc - 75 Vdc Input, 1.2 to 3.3 Vdc Output; 25A
QRW025 Series Power Modules; dc-dc Converters

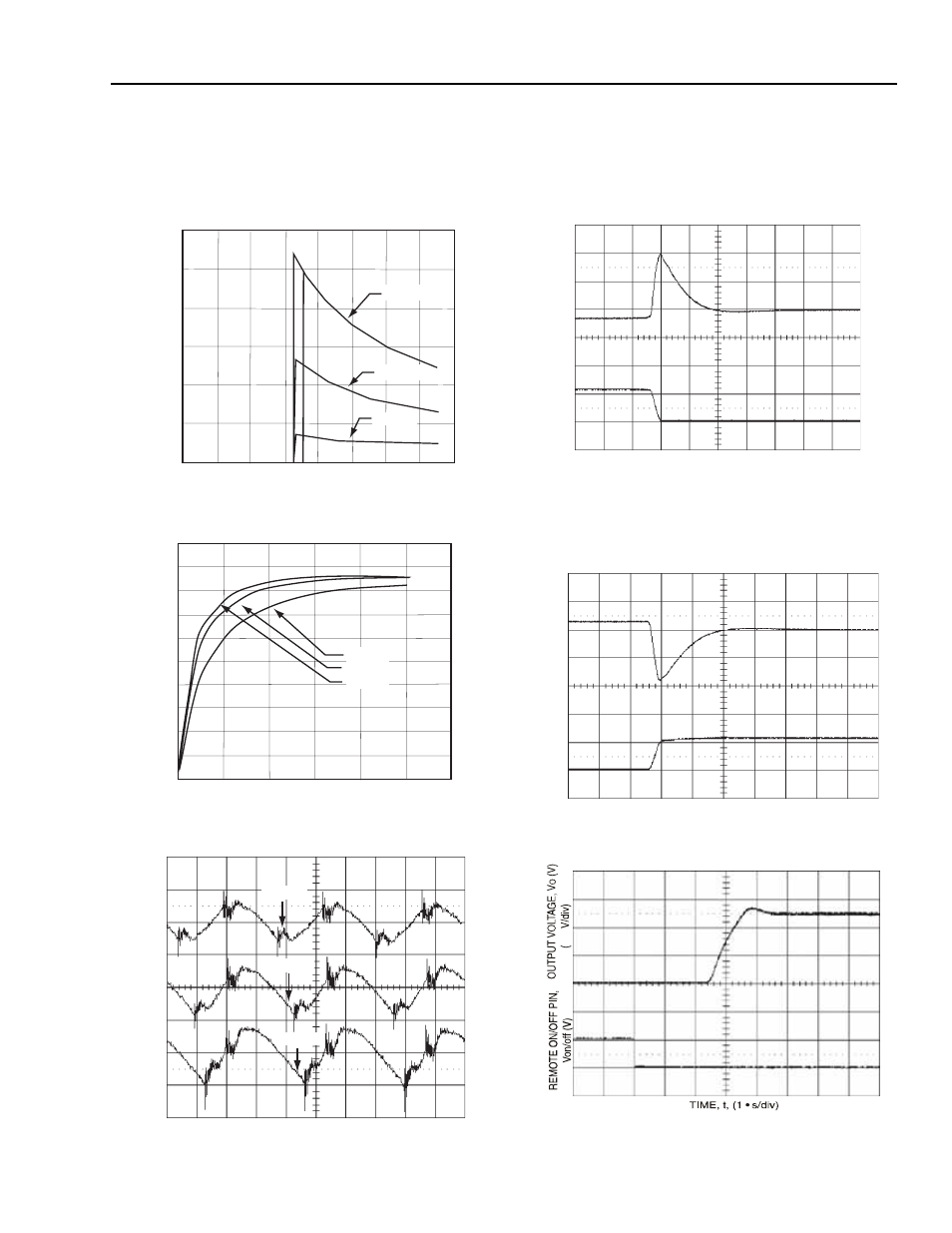

Characteristic Curves
The following figures provide typical characteristics curves for the QRW025A0P (VO = 1.2 V) module at room temperature (TA
= 25 °C).The figures are identical for both on/off configurations.
Figure 1.
Input Voltage and Current Characteristics.
Figure 2.
Converter Efficiency vs. Output Current.
Figure 3.
Output Ripple Voltage (IO = IO, max).
Tested with a 220µF aluminium and a 1.0µF ceramic
capacitor across the load.
Figure 4.
Transient Response to Step decrease in
Load from 50% to 25% of Full Load (VI = 48
Vdc).
Figure 5.
Transient Response to Step Increase in Load
from 50% to 75% of Full Load (VI = 48 Vdc).
Figure 6.
Start-up from Remote On/Off (IO = IO, max).
