GE Industrial Solutions QRW025 Series - Manual (Page 24)

Lineage Power 24
Data Sheet
August 23, 2010 36 Vdc - 75 Vdc Input, 1.2 to 3.3 Vdc Output; 25A
QRW025 Series Power Modules; dc-dc Converters

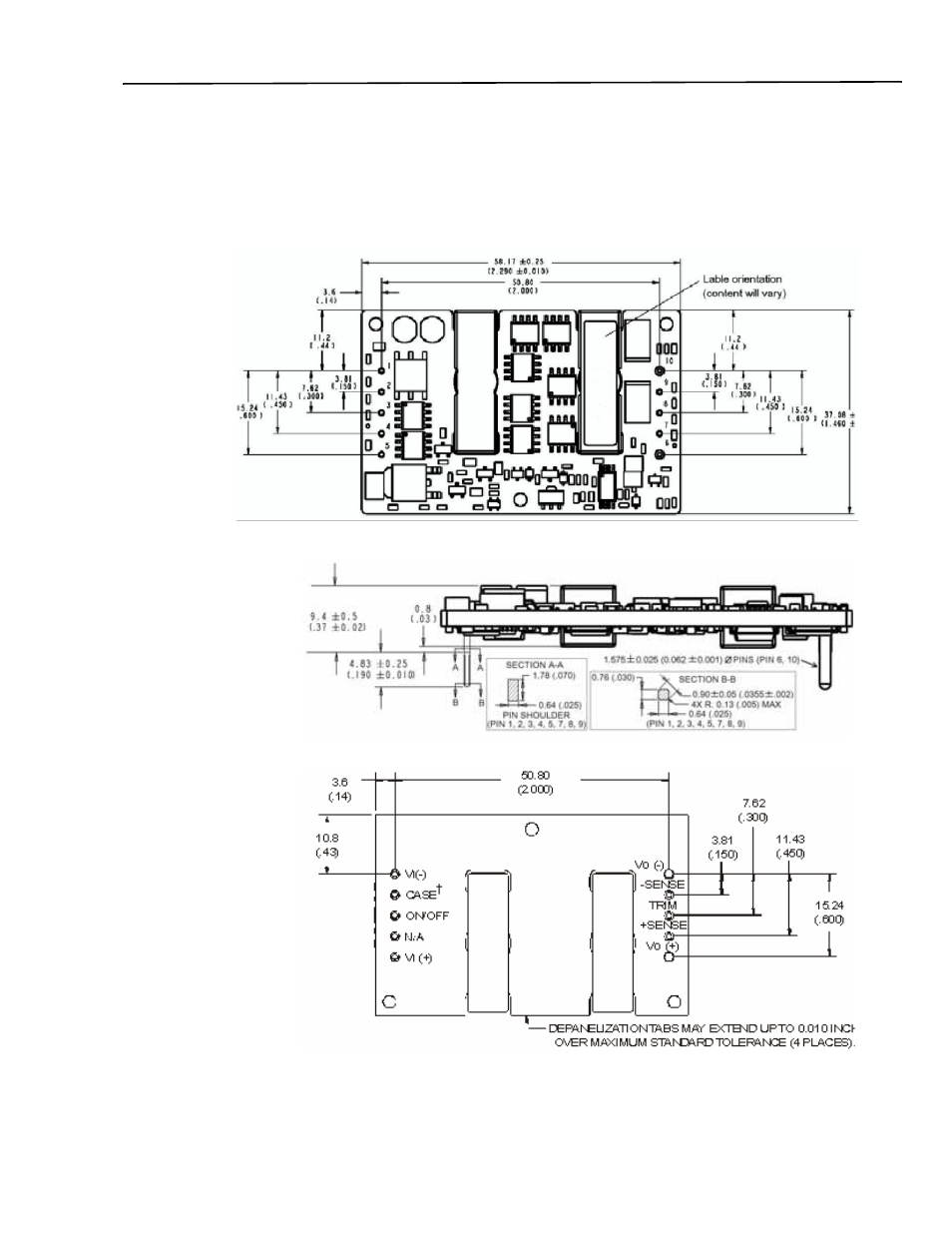

Outline Diagram
Dimensions are in millimeters and (inches)
Tolerences: x.x mm 0.5 mm (x.xx in. 0.02 in.)
x.xx mm 0.25 mm (x.xxx in. 0.010 in.)
*Top Side label includes Lineage name, product designation, and data code.
†
Optional Features, Pin is not present unless one of these options is specified.
Top View
Side View
Bottom View
