GE Industrial Solutions JRCW016A0R Orca Series User Manual
Jrcw016a0r orca, Series; dc-dc, Converter power modules

GE
Data Sheet
November 20, 2013
©2012 General Electric Company. All rights reserved.
Page 1

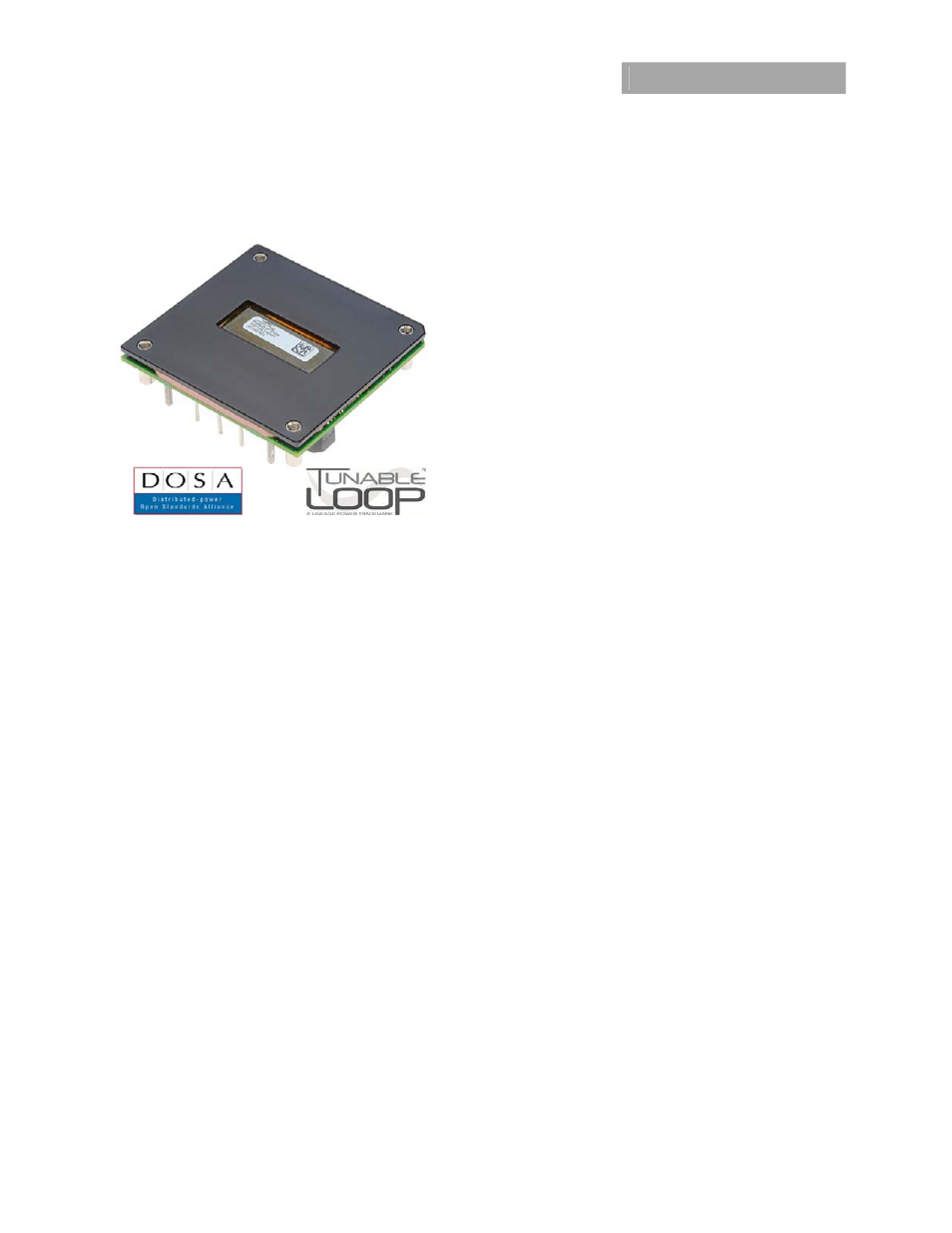

JRCW016A0R Orca
*
Series; DC-DC
Converter Power Modules
36–75 Vdc Input; 28Vdc Output; 16Adc Output
Features
Compliant to RoHS II EU Directive 2011/65/EC (-Z versions)
Compliant to REACH Directive (EC) No 1907/2006
High power density: 166 W/in
3
Very high efficiency: >93.5% Typ at Full Load
Industry standard half-brick pin-out
Low output ripple and noise
Industry standard, DOSA compliant half-brick footprint
57.7mm x 60.7mm x 12.7mm
(2.27” x 2.39” x 0.5”)
Remote Sense
2:1 input voltage range
Single tightly regulated output
Constant switching frequency
Constant Current Overcurrent limit
Latch after short circuit fault shutdown
Over temperature protection auto restart
Output voltage adjustment trim, 16.0V
dc
to 35.2V
dc
Wide operating case temperature range (-40°C to 100°C)
CE mark meets 2006/95/EC directives
§
ANSI/UL
#
60950-1, 2nd Ed. Recognized, CSA
†
C22.2 No. 60950-
1-07 Certified, and VDE
‡
0805-1 (EN60950-1, 2nd Ed.) Licensed
ISO
**
9001 and ISO 14001 certified manufacturing facilities
Compliant to IPC-9592A, Category 2, Class II
Applications
RF Power Amplifier
Wireless Networks
Switching Networks
Options
Output OCP/OVP auto restart
Shorter pins
Unthreaded heatsink holes
Tunable Loop* for transient response optimization
Description
The JRCW016A0R Orca series of dc-dc converters are a new generation of isolated, very high efficiency DC/DC power modules
providing up to up to 16Adc output current at a nominal output voltage of 28Vdc in an industry standard, DOSA compliant half-
brick size footprint, which makes it an ideal choice for high voltage and high power applications. Threaded-through holes are
provided to allow easy mounting or addition of a heatsink for high-temperature applications. The output is fully isolated from the
input, allowing versatile polarity configurations and grounding connections. This module contains an optional new feature, the
Tunable Loop, that allows the user to optimize the dynamic response of the converter to match the load with reduced amount of
output capacitance, leading to savings on cost and PWB area.
*
Trademark of General Electric Company
#
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
RoHS Compliant
