Data Sheet
October 4, 2013
HW/HC004/005/006 Series DC-DC Power Module:
18-36Vdc & 36-75Vdc Input; 1.0V-5Vdc Output; 4A - 6A Output Current
LINEAGE POWER 23
Packaging Details
The surface mount versions of the HW005 family are also available in tape & reel (suffix –SR) as an option. Detailed
of tape dimensions are shown below. Modules are shipped in quantities of 115 per reel.

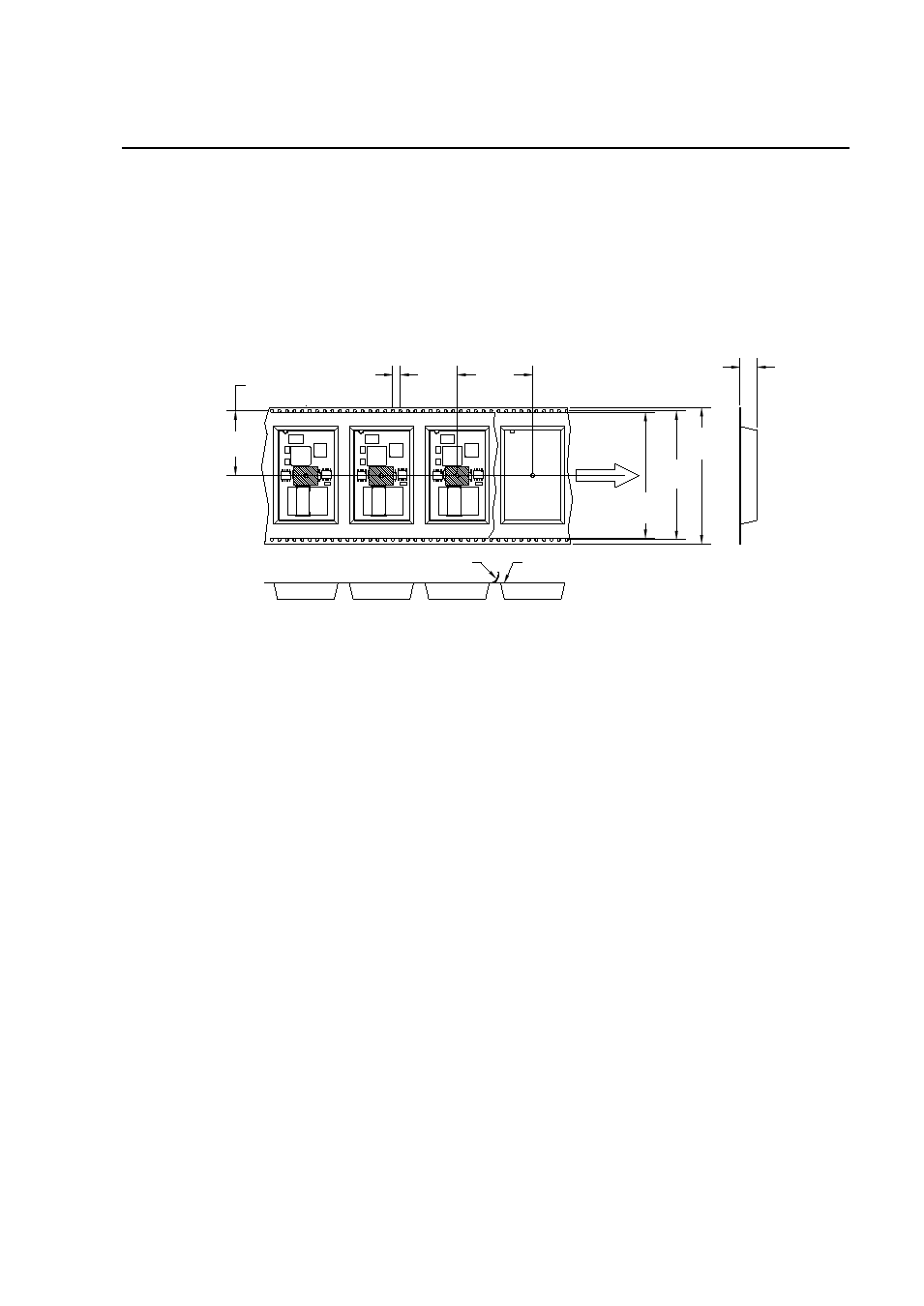

Tape Dimensions
Dimensions are in millimeters and (inches).
40.00
(1.575)
4.00
(0.157)
(1.346)
34.20
PICK POINT
(2.692)
68.40
FEED
DIRECTION (2.834)
72.00
9.02
(0.355)
TOP COVER TAPE EMBOSSED CARRIER
NOTE: CONFORMS TO EAI-481 REV. A STANDARD
(2.692)
66.50
Reel Dimensions
Outside diameter: 330.2 mm (13.00”)
Inside diameter: 177.8 mm (7.00”)
Tape Width: 72.00 mm (2.834”)
