GE Industrial Solutions HW-HC004-005-006 Series - Manual

Data Sheet
October 4, 2013

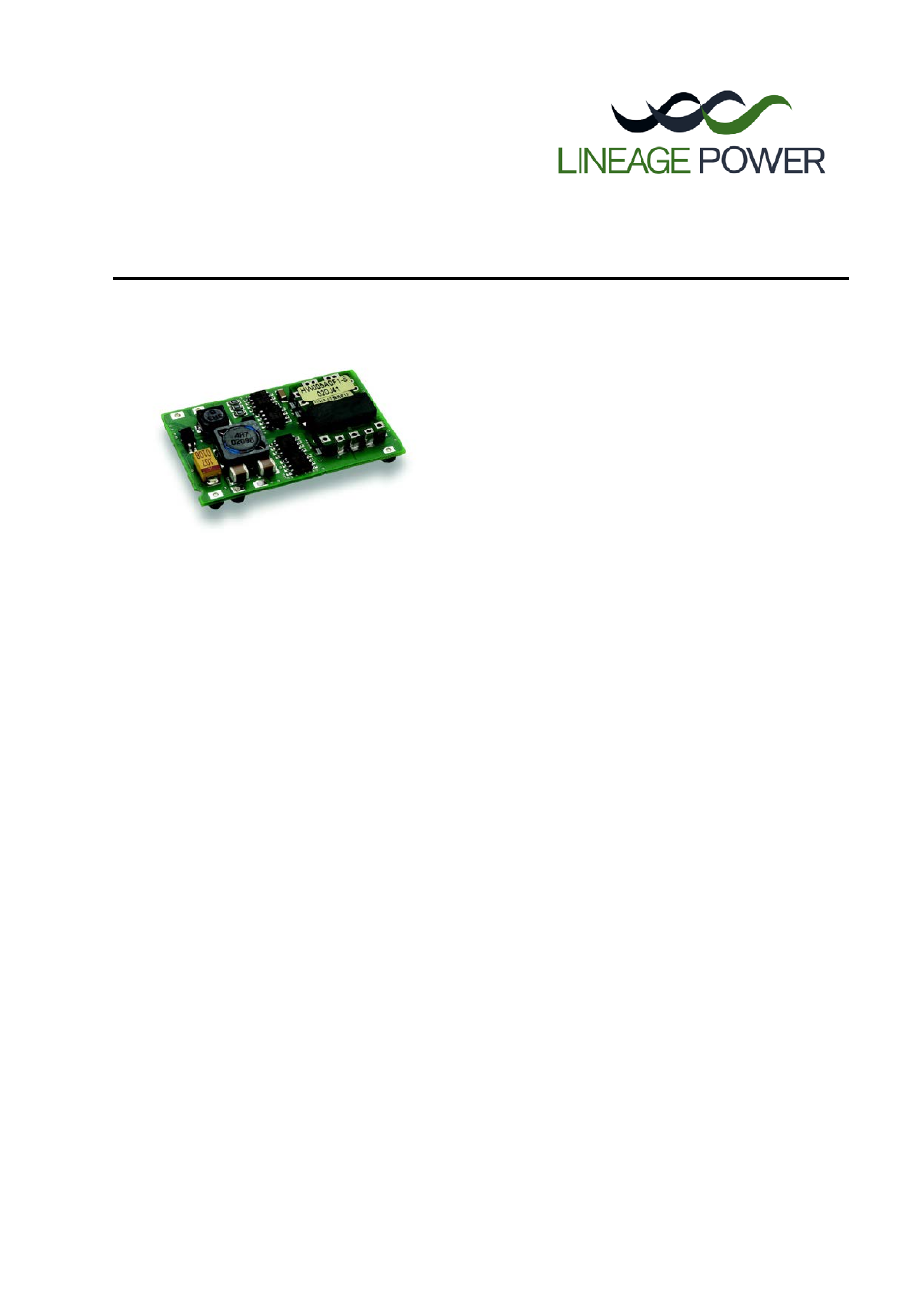

HW/HC004/005/006 Series DC-DC Converter Power Modules:
18-36V & 36-75Vdc Input; 1.0V-5Vdc Output; 4A-6A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-017 ver.1.23
PDF No: hw-hc_4-6a.pdf
Features
 Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
 Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
 Delivers up to 6A Output current
5V (4A), 3.3V (5A), 2.5V – 1.0V (6A each)
 High efficiency – 89% at 5.0V full load
 Low Output voltage- supports migration to future IC
supply voltages down to 1.0V
 Low output ripple and noise
 Small Size and low profile
47.2mm x 29.5mm x 8.5mm
(1.86 x 1.16 x 0.335 in)
 Surface mount or Through hole (TH)
 Remote On/Off
 Output overcurrent/Over voltage protection
 Over temperature protection
 Single Tightly regulated output
 Output voltage adjustment trim
±10%
 Wide operating temperature range (-40°C to 85°C)
 Meets the voltage insulation requirements for ETSI
300-132-2 and complies with and is Licensed for
Basic Insulation rating per EN 60950
 CE mark meets 73/23/EEC and 93/68/EEC
directives
§
 UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-
03 Certified, and VDE
‡
0805:2001-12 (EN60950-1)
Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Wireless Networks
 Distributed power architectures
 Optical and Access Network Equipment
 Enterprise Networks
 Latest generation IC’s (DSP, FPGA, ASIC)
and Microprocessor powered applications
Options
 Remote On/Off logic (positive or negative)
 Surface Mount (-S Suffix)
 Additional Vout+ pin (-3 Suffix)
Description
The HW/HC series power modules are isolated dc-dc converters that operate over a wide input voltage range of 18
to 36 Vdc (HC) or 36 to 75 Vdc (HW) and provide one precisely regulated output. The output is fully isolated from
the input, allowing versatile polarity configurations and grounding connections. The modules exhibit high efficiency,
e.g. typical efficiency of 87% 3.3V/5A, 86% at 2.5V/6A. Built-in filtering for both input and output minimizes the need
for external filtering. These open frame modules are available either in surface-mount (-S) or in through-hole form.
RoHS Compliant
