Galaxy Manager
Issue 4.3 Preliminary January 2004
User Screens 3 - 9
Gateway
Clicking this link permits the user to log directly into the Galaxy
Gateway card (Figure 3-7) of the power plant to further interrogate or
make changes to the system once the password is entered in the login
screen.

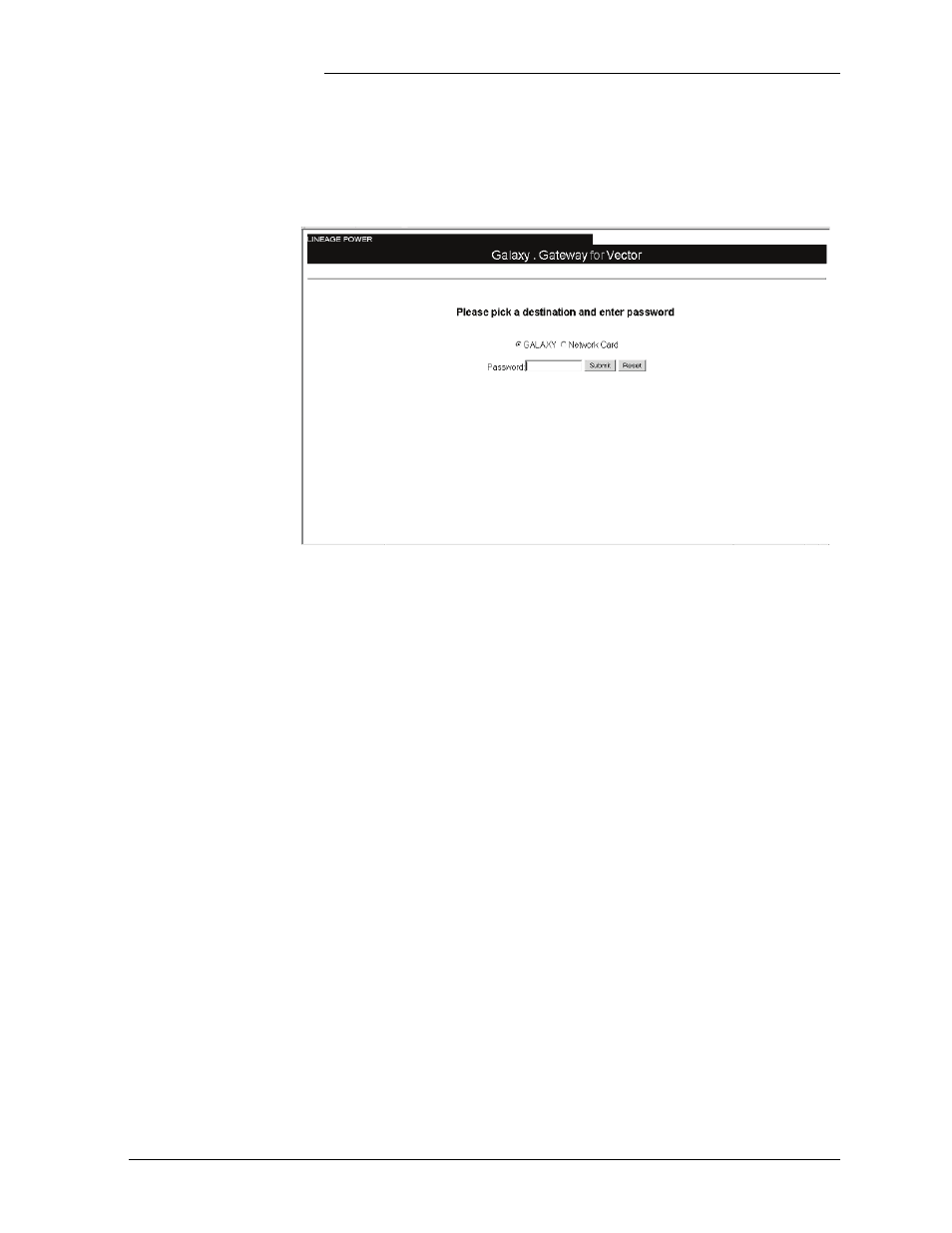

Figure 3-7: Galaxy Gateway Login from the Live Data Link
Alarms
This shows a list of the alarms (displayed in red for major, yellow for
minor, and white for remaining) that are currently active for this system.
